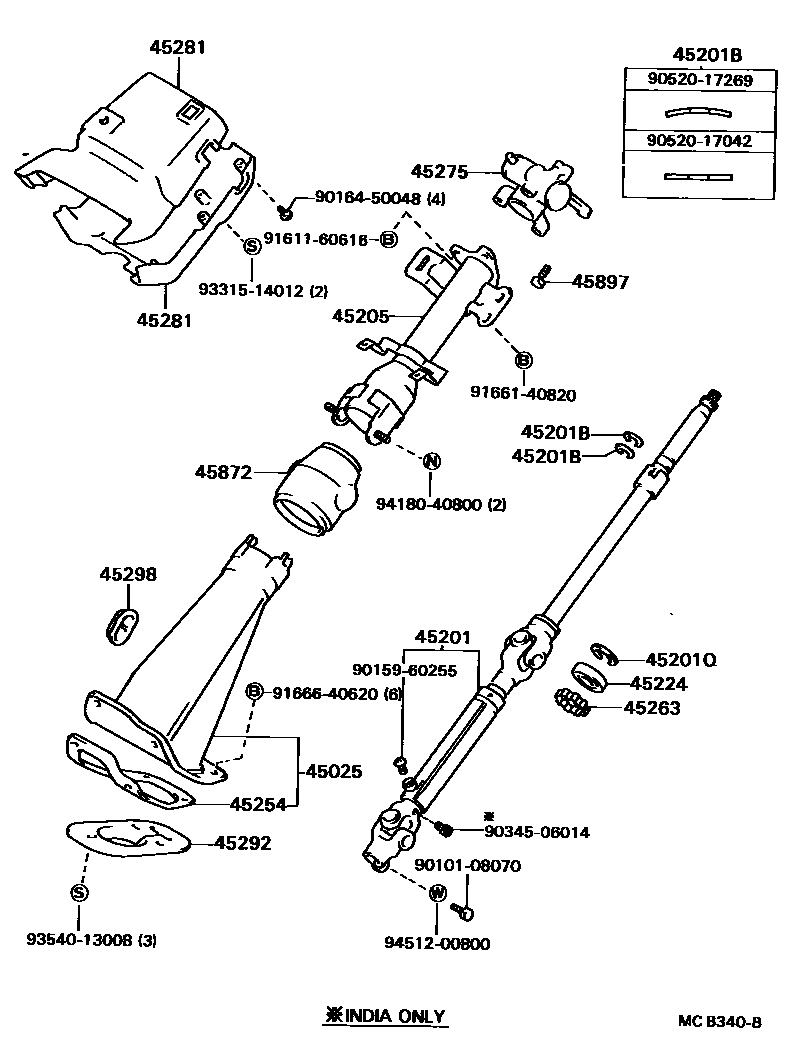

STEERING COLUMN & SHAFT

0001 1 0002 1

45025COVER, STEERING INTERMEDIATE SHAFT

main45025-36110iRU85,WU9#..RHD198409-198708

main45025-36120iRU75,85,WU9#..LHD198409-198708

main45025-36130iWU90..RHD..(ARL,GEN)198409-198708

W/POWER TAKE-OFF

main45204-36010iYU60,62,8#..RHD198409-198708

main45204-36020iYU60,62,7#,8#..LHD198409-198708

main45204-36030iYU60,62,8#..RHD..(ARL,GEN)198409-198708

W/POWER TAKE OFF

main45204-36040iYU6#,8#..LHD..WT198409-198708

W/POWER TAKE OFF

45201SHAFT SUB-ASSY, STEERING MAIN

main45210-36020iRU75,85,WU9#198409-198708

main45210-36030iYU6#,7#,8#198409-198708

45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)

main90520-17042iRU75,85,WU9#198409-198708

T=1.20,UPR BEARING,LWR

main90520-17042iRU75,85,WU9#198409-198708

T=1.20,FLAT RING

main90520-17269iRU75,85,WU9#,YU60,61,70,80198409-198708

T=1.20,UPR BEARING,UPR

main90520-17269iRU75,85,WU9#,YU60,61,70,80198409-198708

T=1.20,CONE RING

main90521-59001iRU75,85,WU9#198409-198708

LWR BERING

45201QRING(FOR STEERING COLUMN RING)

main96152-00300iYU6#,7#,8#198409-198708

45205TUBE SUB-ASSY, STEERING COLUMN

main45205-36150iRU85,WU9#..RHD198409-198708

main45205-36160iRU75,85,WU9#..LHD198409-198708

main45205-36170iYU6#,7#,8#198409-198708

45224BLOCK, BEARING(FOR STEERING FLEXIBLE COUPLING)

main45225-26010iYU6#,7#,8#198409-198708

L=16

45254SHIELD, STEERING COLUMN HOLE

main45254-36070iRU85,WU9#..RHD198409-198708

main45254-36080iRU75,85,WU9#..LHD198409-198708

main45254-36090iYU60,62,8#..RHD198409-198708

main45254-36100iYU6#,7#,8#..LHD198409-198708

45263RING, STEERING COLUMN, NO.1

main45263-26010iYU6#,7#,8#198409-198708

sub45263-32010

45275BRACKET, STEERING COLUMN, UPPER

main45307-36160iRU75,85,WU9#,YU6#,7#,8#198409-198708

45281HOUSING, STEERING COLUMN

main45286-36500-03iWU90..ARL198508-198708

UPR,SHADOW GRAY

main45286-36680-03iYU60,62,8#..RHD198409-198708

UPR,SHADOW GRAY

sub45286-36680

main45286-36690-03iYU6#,7#,8#..LHD198409-198708

UPR,SHADOW GRAY

main45286-36700-03iRU85,WU9#..RHD198409-198708

UPR,SHADOW GRAY

sub45286-36700

main45286-36710-03iRU75,85,WU9#..LHD198409-198708

UPR,SHADOW GRAY

main45287-36200-03iRU85,WU9#..RHD198409-198708

LWR,SHADOW GRAY

main45287-36210-03iRU75,85,WU9#..LHD198409-198708

LWR,SHADOW GRAY

main45287-36270-03iYU60,62,8#..RHD198409-198708

LWR,SHADOW GRAY

sub45287-36270

main45287-36280-03iYU6#,7#,8#..LHD198409-198708

LWR,SHADOW GRAY

45292SEAL, MAIN SHAFT LOWER DUST

main45292-36020iRU75,85,WU9#198409-198708

main45292-36030iYU60,62,8#..RHD198409-198708

main45292-36040iYU6#,7#,8#..LHD198409-198708

45298PLUG, STEERING COLUMN COVER

main45298-36020iYU6#,7#,8#198409-198708

45872COVER, STEERING COLUMN TUBE

main45872-36010iYU6#,7#,8#198409-198708

45897BOLT, STEERING LOCK SET

main45897-12030iYU60..EUR198409-198708

9010108070

main90101-08070

9015960255

main90159-60255

9016450048

main90164-50048

9034506014

main90345-06014

9052017042

main90520-17042

9052017269

main90520-17269

9161160616

main91611-60616

9166140820

main91661-40820

9166640620

main91666-40620

9331514012

main93315-14012

9354013008

main93540-13008

9418040800

main94180-40800

9451200800

main94512-00800

27 parts on this diagram · 2 diagrams in section
