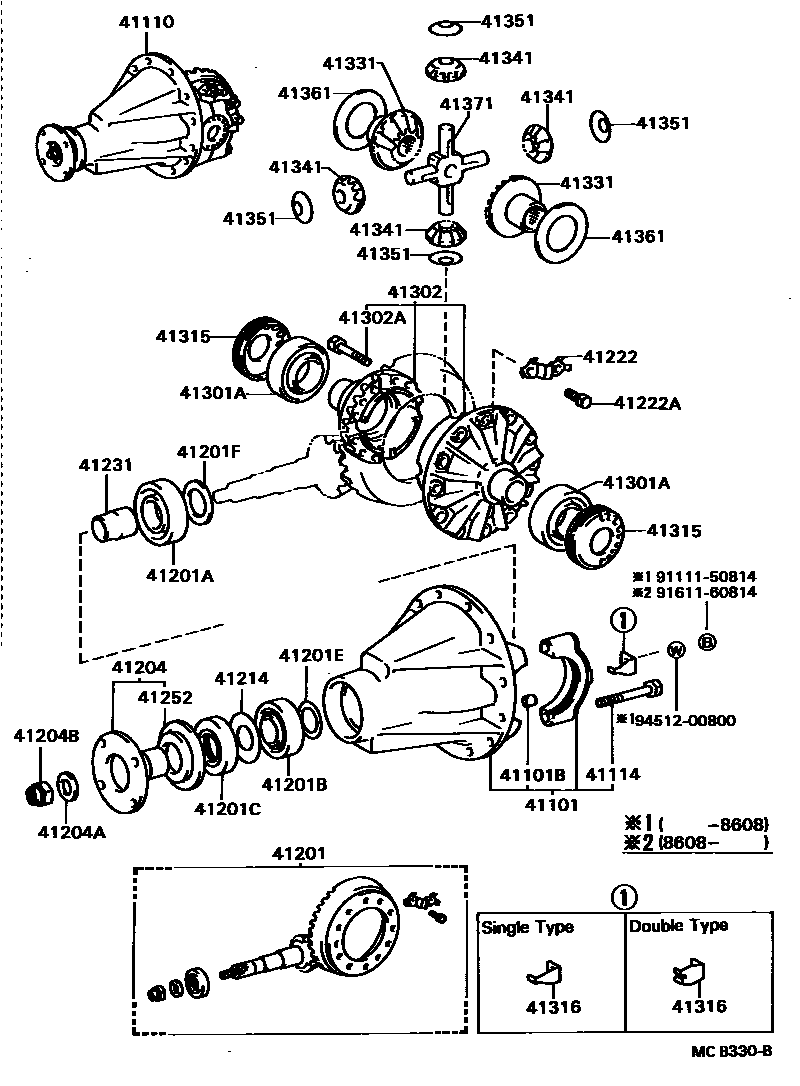

REAR AXLE HOUSING & DIFFERENTIAL
41101CARRIER SUB-ASSY, DIFFERENTIAL, REAR
12 IN DIFF
41101BPIN, RING (FOR REAR DIFFERENTIAL CARRIER)
10.5 IN DIFF
12 IN DIFF
41110CARRIER ASSY, DIFFERENTIAL, REAR
*FGR=37:6=6.617,*AXC=L204,*FGR=37:6
sub41110-36540
*FGR=41:6=6.833,*AXC=L234,*FGR=41:6
sub41110-36560
41114BOLT, REAR DIFFERENTIAL BEARING CAP
12 IN DIFF
10.5 IN DIFF
41201FINAL GEAR KIT, DIFFERENTIAL, REAR
*FGR=41:6,*AXC=L234,*FGR=41:6
sub41201-39835
41201ABEARING (FOR REAR DRIVE PINION REAR)
12 IN DIFF
41201BBEARING (FOR REAR DRIVE PINION FRONT)
10.5 IN DIFF
12 IN DIFF
41201CSEAL, OIL (FOR REAR DIFFERENTIAL CARRIER)
12 IN DIFF
41201ESHIM (FOR REAR DIFF DRIVE PINION SPACER FRONT ADJUST)
T=1.80,T=1.8,10.5 IN DIFF
T=1.82,T=1.82,10.5 IN DIFF
T=1.84,T=1.84,10.5 IN DIFF
T=1.86,T=1.86,10.5 IN DIFF
T=1.88,T=1.88,10.5 IN DIFF
T=1.90,T=1.90,10.5 IN DIFF
T=2.00,T=2.00,10.5 IN DIFF
T=2.10,T=2.10,10.5 IN DIFF
T=2.20,T=2.20,10.5 IN DIFF
T=2.30,T=2.30,10.5 IN DIFF
T=2.40,T=2.40,10.5 IN DIFF
T=2.50,T=2.50,10.5 IN DIFF
T=2.60,T=2.60,10.5 IN DIFF
T=2.70,T=2.70,10.5 IN DIFF
T=2.80,T=2.80,10.5 IN DIFF
T=2.90,T=2.90,10.5 IN DIFF
T=3.00,T=3.00,10.5 IN DIFF
T=1.81,T=1.81,10.5 IN DIFF
T=1.83,T=1.83,10.5 IN DIFF
T=1.85,T=1.85,10.5 IN DIFF
T=1.87,T=1.87,10.5 IN DIFF
T=1.89,T=1.89,10.5 IN
T=1.80,T=1.80,12 IN
T=1.82,T=1.82,12 IN
T=1.84,T=1.84,12 IN
T=1.86,T=1.86,12 IN
T=1.88,T=1.88,12 IN
T=1.90,T=1.90,12 IN
T=2.00,T=2.00,12 IN
T=2.10,T=2.10,12 IN
T=2.20,T=2.20,12 IN
T=2.30,T=2.30,12 IN
T=2.40,T=2.40,12 IN
T=2.50,T=2.50,12 IN
T=2.60,T=2.60,12 IN
T=2.70,T=2.70,12 IN
T=2.80,T=2.80,12 IN
T=2.90,T=2.90,12 IN
T=3.00,T=3.00,12 IN
T=3.10,T=3.10,12 IN
T=3.20,T=3.20,12 IN
T=3.30,T=3.30,12 IN DIFF
T=1.81,T=1.81,12 IN DIFF
T=1.83,T=1.83,12 IN DIFF
T=1.85,T=1.85,12 IN DIFF
T=1.87,T=1.87,12 IN DIFF
T=1.89,T=1.89,12 IN DIFF
41201FSHIM (FOR REAR DIFF DRIVE PINION SPACER REAR ADJUST)
41204FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR
10.5 IN DIFF
41204AWASHER, PLATE (FOR REAR DRIVE PINION)
41204BNUT (FOR REAR DRIVE PINION)
OD=29,10.5 IN DIFF
12 IN DIFF
41214SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL
12 IN DIFF
41222PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK
10.5 IN DIFF
12 IN DIFF
41222ABOLT (FOR REAR DIFFERENTIAL RING GEAR SET)
10.5 IN DIFF
12 IN DIFF
41231SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING
10.5 IN DIFF
12 IN DIFF
41252DEFLECTOR, DUST (FOR REAR DIFFERENTIAL)
41301ABEARING(FOR REAR DIFFERENTIAL CASE)
12 IN DIFF
10.5 IN DIFF
41302CASE SUB-ASSY, REAR DIFFERENTIAL
10.5 IN DIFF
12 IN DIFF
41302ABOLT(FOR REAR DIFFERENTIAL CASE)
12 IN DIFF
10.5 IN DIFF
41315NUT, REAR DIFFERENTIAL BEARING ADJUSTING
10.5 IN DIFF
12 IN DIFF
41316LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT
SINGLE,10.5 IN DIFF
SINGLE,12 IN DIFF
DOUBLE,10.5 IN DIFF
DOUBLE,12 IN DIFF
41331GEAR, REAR DIFFERENTIAL SIDE
10.5 IN DIFF
12 IN DIFF
41341PINION, REAR DIFFERENTIAL
12 IN DIFF
41351WASHER, REAR DIFFERENTIAL PINION THRUST
10.5 IN DIFF
12 IN DIFF
41361WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1
T=1.4,T=1.4,12 IN DIFF
T=1.5,T=1.5,12 IN DIFF
T=1.6,T=1.6,12 IN DIFF
T=1.7,T=1.7,12 IN DIFF
41371SPIDER, REAR DIFFERENTIAL
10.5 IN DIFF
12 IN DIFF
9111150814
main91111-50814
9161160814
main91611-60814
9451200800
main94512-00800
31 parts on this diagram · 3 diagrams in section
