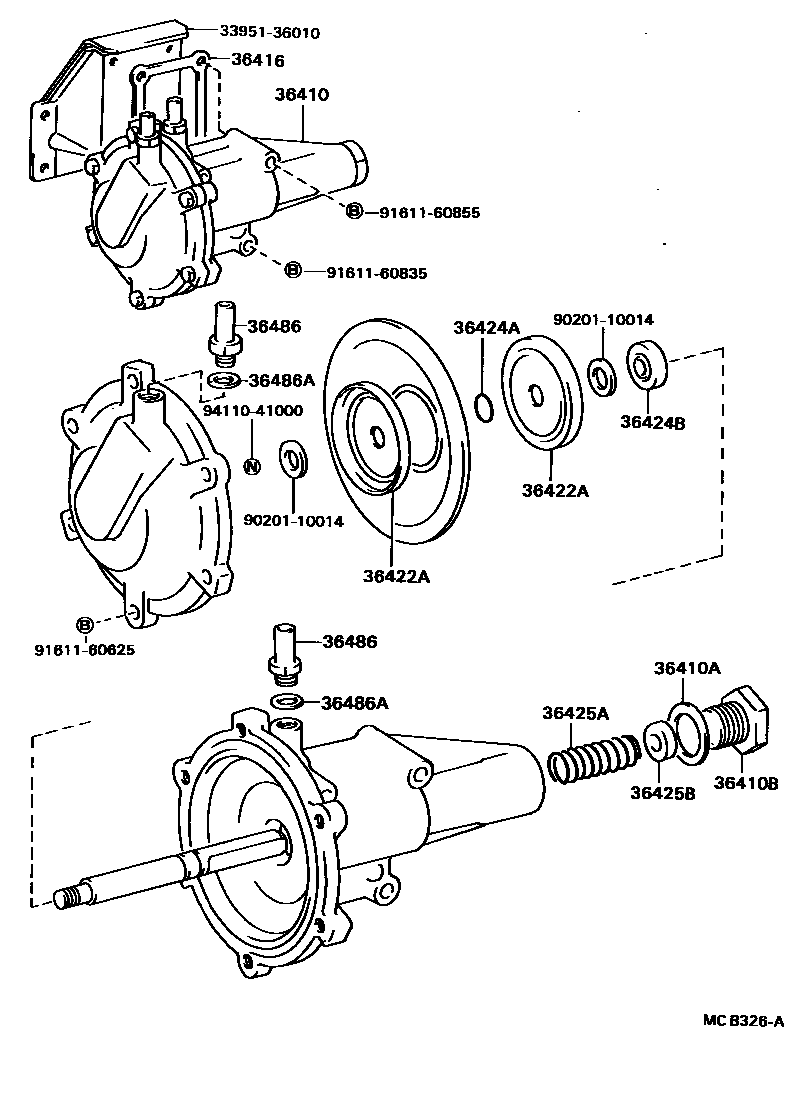

DIAPHRAGM CYLINDER & TRANSFER VACUUM ACTUATOR

36410CYLINDER ASSY, DIAPHRAGM

main36420-36010iWU90..ARL198508-198708

36410AGASKET (FOR DIAPHRAGM CYLINDER)

main90430-24003iWU90..ARL198508-198708

sub90430-24017

36410BPLUG, W/HEAD STRAIGHT SCREW

main90341-24005iWU90..ARL198508-198708

36416GASKET, DIAPHRAGM CYLINDER

main36416-36020iWU90..ARL198508-198708

36422APLATE, DIAPHRAGM

main36422-36010iWU90..ARL198508-198708

36424ARING, O (FOR DIAPHRAGM PUSH ROD)

main96711-24010iWU90..ARL198508-198708

36424BSEAL, TYPE T, OIL (FOR DIAPHRAGM PUSH ROD)

main90311-13066iWU90..ARL198508-198708

36425ASPRING, COMPRESSION (FOR DIAPHRAGM CYLINDER)

main90501-29010iWU90..ARL198508-198708

36425BSPACER (FOR DIAPHRAGM CYLINDER)

main90560-07017iWU90..ARL198508-198708

36486TUBE, SUCTION

main36486-60010iWU90..ARL198508-198708

36486AGASKET (FOR SUCTION TUBE)

main90430-10022iWU90..ARL198508-198708

3395136010BRACKET, DIAPHRAGM CYLINDER

main33951-36010

9020110014

main90201-10014

9161160625

main91611-60625

9161160835

main91611-60835

9161160855

main91611-60855

9411041000

main94110-41000

17 parts on this diagram · 1 diagram in section
