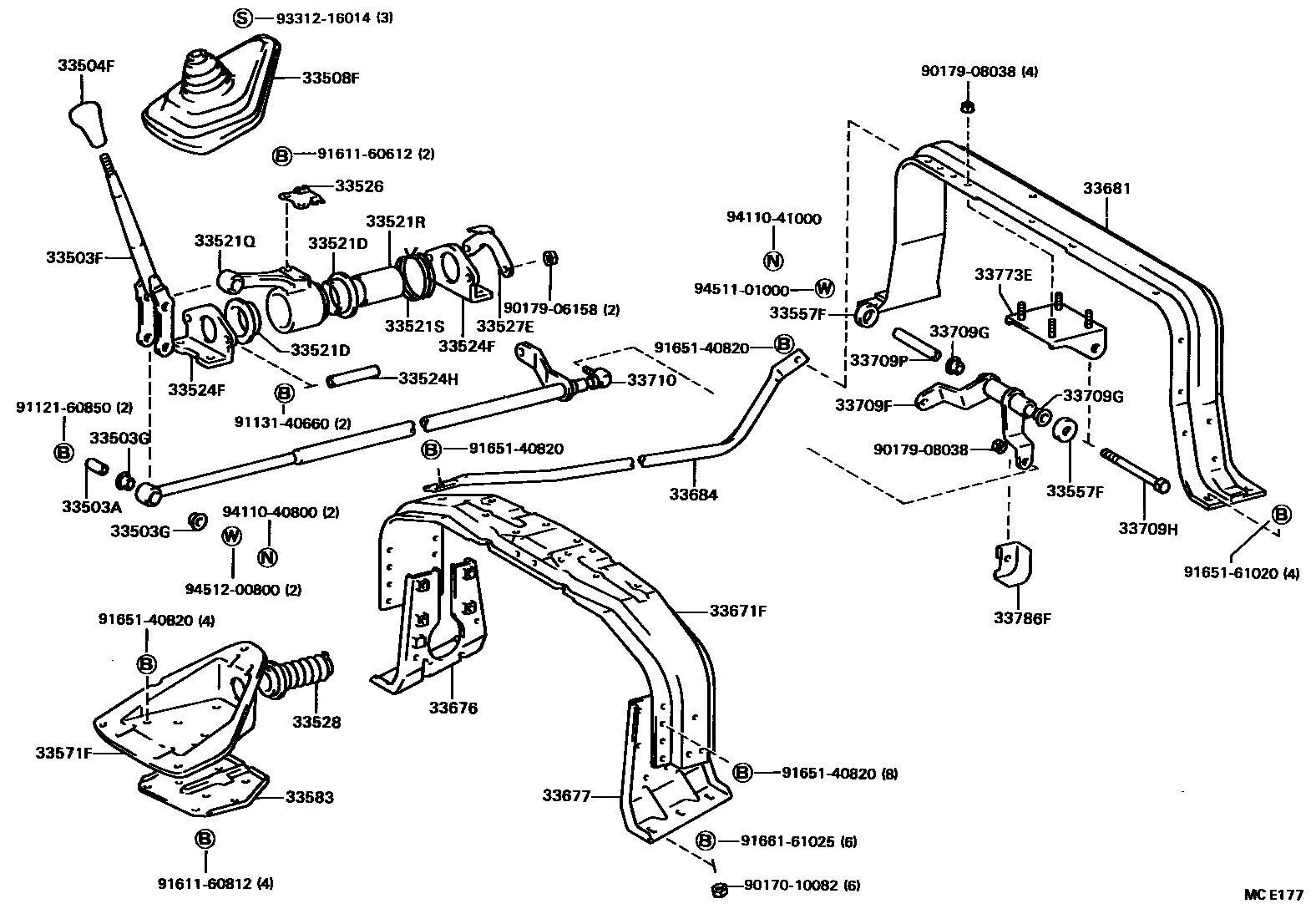

SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

33503ACOLLAR(FOR SHIFT LEVER)

main90387-08009iRU75,85,WU9#,YU6#,7#,8#198409-198708

33503FLEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT)

main33503-36050iYU60,80..RHD198409-198508

main33503-36060iYU60,80..LHD;RU75,85,WU9#,YU61,70198409-198708

33503GBUSH(FOR SHIFT LEVER)

main90389-11006iRU75,85,WU9#,YU6#,7#,8#198409-198708

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-24010-01iRU75,85,WU9#,YU6#,70,80198409-198708

BLACK

sub33504-24010

main33504-36050-01iRU75,85,YU6#,7#,8#198508-198708

BLACK

sub33504-36051

sub33504-36050

33508FBOOT SUB-ASSY, CONTROL SHAFT (FOR FLOOR SHIFT)

main33508-36010iRU85,WU9#,YU60,62,8#..RHD198409-198708

main33508-36020iRU75,85,WU9#,YU6#,7#,8#..LHD198409-198708

33521DBUSH (FOR SHIFT LEVER HOUSING)

main90389-38004iRU75,85,WU9#,YU6#,7#,8#198409-198708

33521QHOUSING, SHIFT LEVER (FOR FLOOR SHIFT)

main33521-36050iRU75,85,WU9#,YU6#,7#,8#198409-198708

33521RCOLLAR (FOR SHIFT LEVER HOUSING)

main90387-34001iRU75,85,WU9#,YU6#,7#,8#198409-198708

33521SSPRING (FOR SHIFT LEVER HOUSING)

main90508-26063iYU6#,7#,8#198409-198708

main90508-26067iRU85,WU9#..RHD198409-198708

main90508-26070iRU75,85,WU9#..LHD198409-198708

33524FBRACKET, CONTROL LEVER HOUSING SUPPORT (FOR FLOOR SHIFT)

main33524-36030iRU75,85,WU9#,YU6#,7#,8#198409-198708

33524HCOLLER (FOR CONTROL LEVER HOUSING SUPPORT BRACKET)

main90387-06026iRU75,85,WU9#,YU6#,7#,8#198409-198708

33526PLATE, SHIFT LEVER SUPPORT, NO.1

main33526-36010iYU6#,7#,8#198409-198708

main33526-36030iRU75,85,WU9#198409-198708

33527EPLATE, SHIFT LEVER SUPPORT, NO.2

main33527-36130iRU75,85,WU9#,YU6#,7#,8#198409-198708

33528COVER, CONTROL SHAFT

main33528-36020iRU75,85,WU9#,YU6#,7#,8#198409-198708

33557FCOVER, CONTROL BELLCRANK DUST (FOR FLOOR SHIFT)

main33557-36020iRU85,WU9#,YU60,62,8#..RHD198409-198708

33571FBRACKET, CONTROL SHAFT, LOWER NO.2

main33571-36090iRU85,WU9#,YU60,62,8#..RHD198409-198708

main33571-36100iYU6#,7#,8#..LHD198409-198708

main33571-36110iRU75,85,WU9#..LHD198409-198708

33583BRACKET, CONTROL SHAFT, LOWER NO.2

main33583-36020iRU85,WU9#,YU60,62,8#..RHD198409-198708

main33583-36030iYU6#,7#,8#..LHD198409-198708

main33583-36040iRU75,85,WU9#..LHD198409-198708

33671FSUPPORT, CONTROL ROD, NO.1

main33607-36040iRU85,WU9#..RHD198409-198708

main33607-36050iRU75,85,WU9#..LHD198409-198708

main33671-36040iYU6#,7#,8#198409-198708

sub33671-36080

33676SUPPORT, CONTROL ROD MEMBER, RH (FOR FLOOR SHIFT)

main33676-36010iYU6#,7#,8#198409-198708

sub33676-36011

33677SUPPORT, CONTROL ROD MEMBER, LH (FOR FLOOR SHIFT)

main33677-36010iYU6#,7#,8#198409-198708

33681MEMBER, CONTROL ROD, REAR

main33681-36010iRU75,85,WU9#,YU6#,70,80198409-198508

sub33681-36011

main33681-36011iRU75,85,WU9#,YU60,62,7#,8#198508-198708

main33681-36020iYU61,62198508-198708

33684ROD, CONTROL MEMBER BRACE

main33684-36010iYU6#,7#,8#198409-198708

RH

main33684-36020iYU6#,7#,8#..LHD198409-198708

LH

main33684-36030iRU75,85,WU9#198409-198708

33709FSHAFT SUB-ASSY, CROSS, NO.1 (FOR FLOOR SHIFT)

main33709-36290iYU60,62,8#..RHD198409-198708

main33709-36300iYU6#,70,80..LHD198409-198508

main33709-36310iRU85,WU9#..RHD198409-198708

main33709-36320iRU75,85,WU9#..LHD198409-198708

main33709-36330iYU6#,7#,8#..LHD198508-198708

33709GBUSH (FOR CROSS SHAFT, NO.1

main90386-13007iWU9#..RHD;YU6#,70,80198409-198708

33709HBOLT, HEXAGON (FOR CROSS SHAFT)

main90101-10117iRU85,WU9#..RHD198409-198708

main90101-10279iYU60,62,8#..RHD198409-198708

33709PCOLLAR (FOR CROSS SHAFT)

main90387-10002iYU60,62,8#..RHD198409-198708

main90387-10064iRU85,WU9#..RHD198409-198708

33710ROD ASSY, GEAR SHIFTING, NO.1

main33710-36190iYU60,62,8#..RHD198409-198708

main33710-36200iYU6#,70,80..LHD198409-198508

main33710-36210iRU85,WU9#..RHD198409-198708

main33710-36220iRU75,85,WU9#..LHD198409-198708

main33710-36230iYU6#,7#,8#..LHD198508-198708

33773ESUPPORT, CROSS SHAFT, NO.1

main33773-36080iYU60,62,8#..RHD198409-198708

main33773-36090iYU6#,70,80..LHD198409-198508

33786FINSULATOR, CROSS SHAFT LEVER HEAT, NO.2 (FOR FLOOR SHIFT)

9017010082

main90170-10082

9017906158

main90179-06158

9017908038

main90179-08038

9112160850

main91121-60850

9113140660

main91131-40660

9161160612

main91611-60612

9161160812

main91611-60812

9165140820

main91651-40820

9165161020

main91651-61020

9166161025

main91661-61025

9331216014

main93312-16014

9411040800

main94110-40800

9411041000

main94110-41000

9451101000

main94511-01000

9451200800

main94512-00800

44 parts on this diagram · 7 diagrams in section
