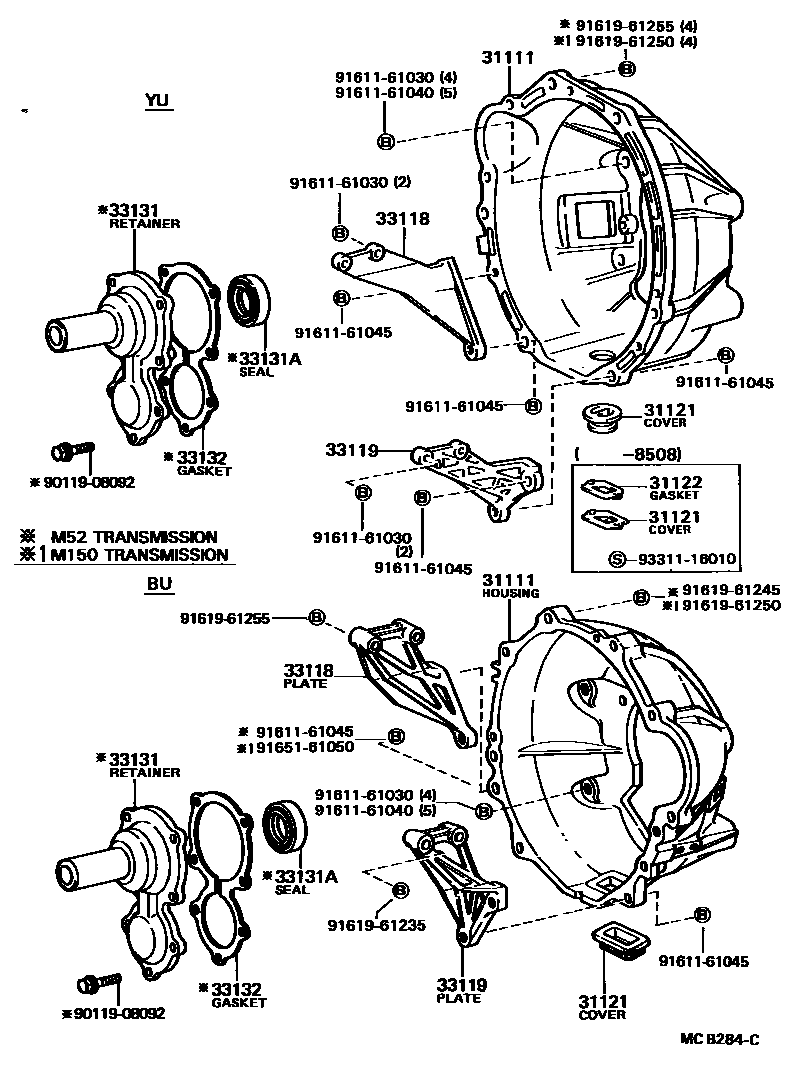

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

0001 1 0002 1 0003 1 0004 1 0006 1 0007 1 0009 1

31111HOUSING, CLUTCH

main31111-36120iWU90..ARL198508-198708

main31111-36130iWU9#198409-198708

sub31111-36131

main31111-36150iRU75,85198409-198508

main31111-36160iYU6#,70,80198409-198508

main31111-36190iRU75,85198508-198708

main31111-36200iYU6#,7#,8#198508-198708

main31111-36210iWU9#..GEN198508-198708

31121COVER, CLUTCH HOUSING, NO.1

main31121-36050iRU75,85,YU6#,70,80198409-198508

main31121-36060iRU75,85,YU6#,7#,8#198508-198708

31122GASKET, CLUTCH HOUSING COVER

main31122-36010iRU75,85,YU6#,70,80198409-198508

33118PLATE, STIFFENER, RH(MTM)

main33118-22030iRU75,85198409-198508

main33118-35020iRU75,85198508-198708

main33118-36030iYU6#,70,80198409-198508

sub33118-36031

main33118-36031iYU6#,7#,8#198508-198708

main33118-89102iWU9#198409-198708

33119PLATE, STIFFENER, LH(MTM)

main33119-22021iRU75,85198409-198508

sub33119-22022

main33119-35020iRU75,85198508-198708

sub33119-35021

main33119-36030iYU6#,7#,8#198409-198708

main33119-89101iWU9#198409-198708

subS1135-61153

33131RETAINER, BEARING, FRONT(MTM)

main33018-36050iYU6#,7#,8#198508-198708

main33018-36060iRU75,85198508-198708

main33131-36023iRU75,85,YU6#,70,80198409-198508

main33131-36040iWU90..ARL198508-198708

main33131-60020iWU9#..SA198409-198708

33131ASEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)

main90311-28004iWU9#..ARL,SA198409-198708

main90311-32012iRU75,85,YU6#,7#,8#198508-198708

main90311-32106iRU75,85,YU6#,70,80198409-198508

33132GASKET, FRONT BEARING RETAINER(MTM)

main33132-36010iWU9#..SA198409-198708

main33132-36022iRU75,85,YU6#,70,80198409-198508

main33132-36030iWU90..ARL198508-198708

9011908092

main90119-08092

9161161030

main91611-61030

9161161040

main91611-61040

9161161045

main91611-61045

9161961235

main91619-61235

9161961245

main91619-61245

9161961250

main91619-61250

9161961255

main91619-61255

9165161050

main91651-61050

9331116010

main93311-16010

18 parts on this diagram · 7 diagrams in section
