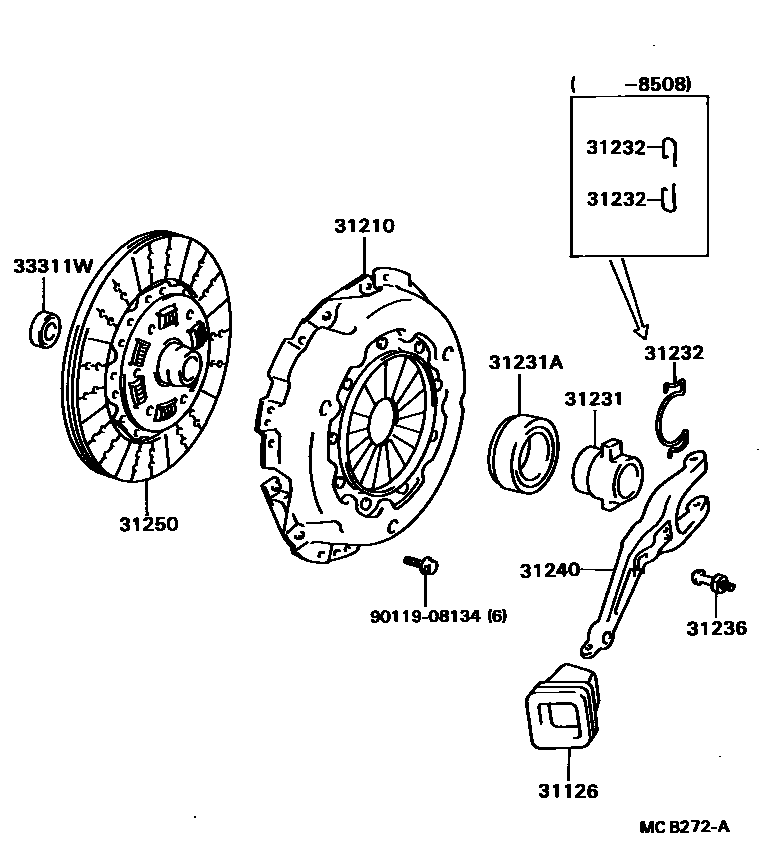

CLUTCH & RELEASE FORK

0001 1 0002 1

31126BOOT, CLUTCH RELEASE FORK

main31126-20050iRU75,85198409-198508

main31126-20060iYU6#,70,80198409-198708

main31126-36040iWU9#..GEN198508-198708

main31126-60021iWU9#..ARL,SA198409-198708

31210COVER ASSY, CLUTCH

main31210-14121iRU75,85,YU6#,70,80198409-198507

sub31210-14122

main31210-36110iWU9#..SA198509-198708

sub31210-36111

main31210-36120iRU75,85,YU6#,70198507-198606

sub31210-36121

main31210-36121iRU75,85,YU6#,7#,8#198606-198708

sub31210-30240

main31210-60070iWU9#198409-198609

sub31210-60071

31231HUB, CLUTCH RELEASE BEARING

main31231-35030iRU75,85,YU6#,7#,8#198508-198708

main31231-36070iRU75,85,YU6#,70,80198409-198508

main31231-36100iWU9#..GEN198508-198708

main31231-60050iWU9#..ARL,SA198409-198708

31231ABEARING, BALL(FOR CLUTCH RELEASE HUB)

main90363-40022iRU75,85,YU6#,7#,8#198409-198708

main90363-45009iWU9#..GEN198508-198708

sub90363-45013

main90363-52001iWU9#198409-198708

31232CLIP OR SPRING, RELEASE BEARING HUB

main31232-20010iRU75,85198409-198508

main31232-22010iYU6#,70,80198409-198508

main31232-35010iRU75,85,YU6#,7#,8#198508-198708

main31232-60020iWU9#198409-198708

31236BALL, RELEASE FORK

main31236-30030iRU75,85198409-198508

main31236-30060iYU6#,70,80198409-198508

main31236-35030iRU75,85,YU6#,7#,8#198508-198708

main31236-60030iWU9#198409-198708

31240FORK ASSY, CLUTCH RELEASE

main31204-20070iYU6#,70,80198409-198508

sub31204-20072

main31204-26010iRU75,85198409-198508

main31204-35030iRU75,85,YU6#,7#,8#198508-198708

sub31204-35031

main31204-36060iWU9#..GEN198508-198708

main31204-60041iWU9#198409-198708

31250DISC ASSY, CLUTCH

main31250-36220iRU75,85,YU6#,70,80198409-198611

sub31250-36290

main31250-36240iWU9#..GEN198508-198701

sub31250-36241

main31250-36241iWU9#..GEN198701-198708

sub31250-36242

main31250-36250iWU9#..SA198409-198511

sub31250-60080

main31250-36260iWU90..ARL198508-198701

sub31250-36261

main31250-36261iWU90..ARL198701-198708

sub31250-36262

main31250-36290iRU75,85198511-198708

sub31250-36291

main31250-36340iWU9#..SA198610-198708

sub31250-36341

main31250-60080iWU9#..SA198511-198610

sub31250-36340

33311WBEARING (FOR INPUT SHAFT)

main90363-12002iRU75,85,YU6#,7#,8#198409-198708

sub90363-12024

main90363-15004iWU9#198409-198708

9011908134

main90119-08134

10 parts on this diagram · 2 diagrams in section
