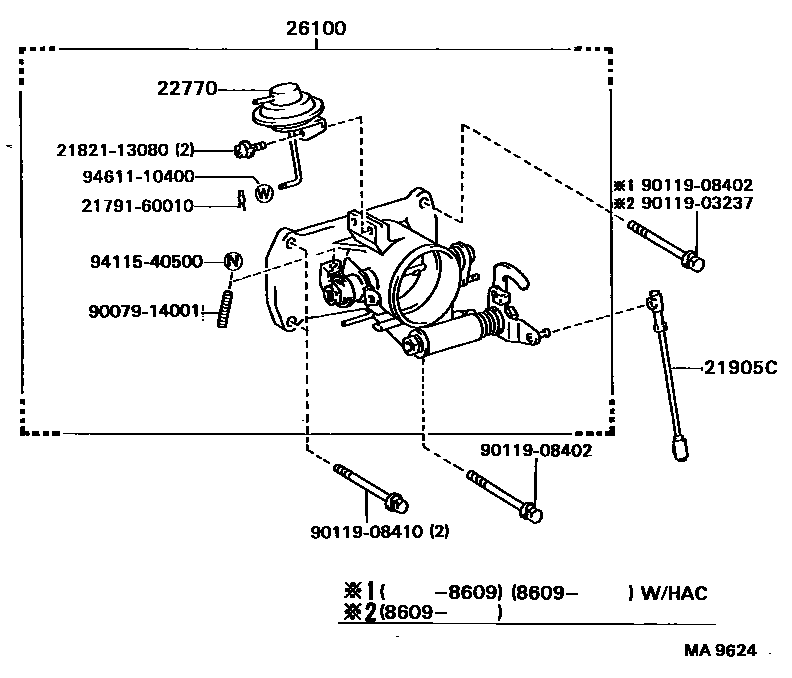

VENTURI

21905CROD, ACCELERATOR CONNECTING(FOR VENTURI)

main21905-78010i1W..WU9#198409-198708

22770ACTUATOR, IDEL UP

main26133-78020i1W..WU9#198409-198708

26100VENTURI ASSY

main26100-78020i1W..WU9#198409-198511

sub26100-78021

main26100-78021i1W..WU9#198511-198708

2179160010RING, SNAP, NO.1(FOR CARBURETOR LINK)

main21791-60010

2182113080SCREW, 2ND THROTTLE VALVE SET

main21821-13080

9007914001

main90079-14001

9011903237

main90119-03237

9011908402

main90119-08402

9011908410

main90119-08410

9411540500

main94115-40500

9461110400

main94611-10400

11 parts on this diagram · 1 diagram in section
