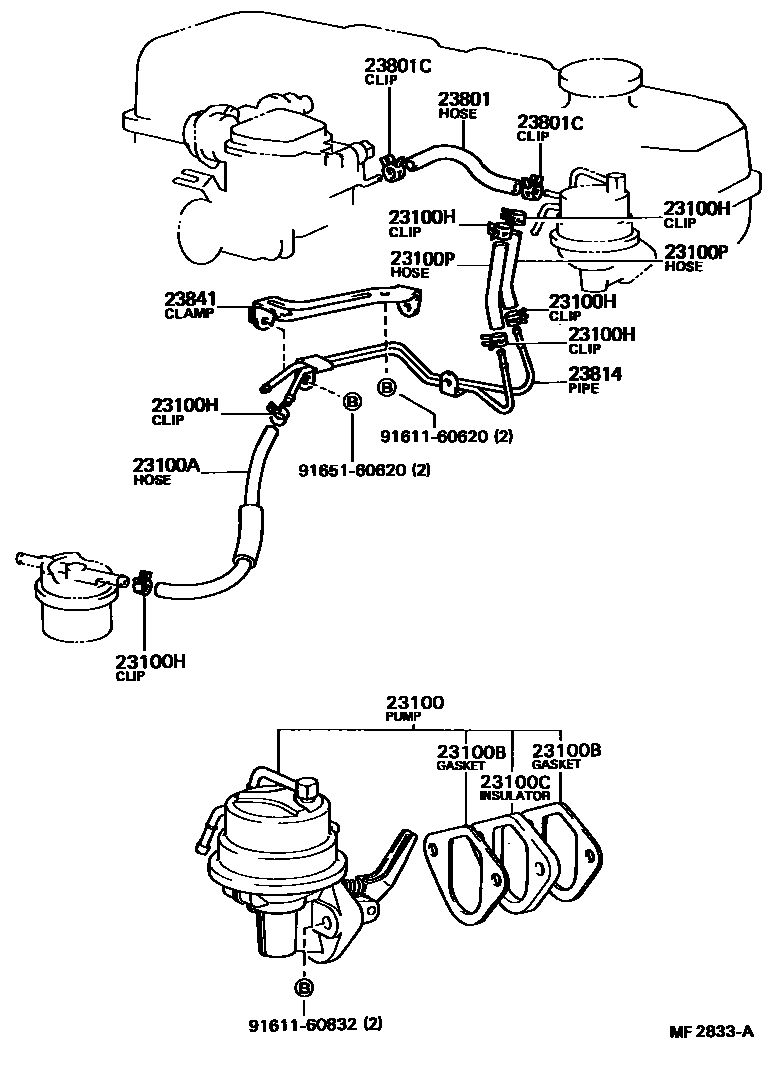

FUEL PUMP & PIPE

0001 1 0002 1

23100PUMP ASSY, FUEL

main23100-39336i22R..RU75,85¥11,300198409-198708

main23100-79025i3Y,4Y..YU6#,7#,8#¥9,500198409-198708

sub23100-79026¥9,900

23100AHOSE, FUEL

main23271-35050i22R..RU75,85¥1,300198409-198708

main95332-06030i3Y,4Y..YU6#,70,80¥590198409-198606

*H,L=280

sub95333-06030¥580

main95333-06028i3Y,4Y..YU6#,7#,8#¥590198606-198708

sub95333-06030¥580

23100BGASKET, FUEL PUMP

main90923-05005i3Y,4Y..YU6#,7#,8#¥250198409-198708

sub90923-05019¥250

23100CINSULATOR, FUEL PUMP

main90923-06001i22R..RU75,85¥380198409-198708

sub90923-06009¥350

23100HCLIP(FOR FUEL HOSE)

main96132-30600i3Y,4Y..YU60,61,70,80¥200198409-198708

PUMP SIDE

sub96132-51100¥120

main96132-30800i22R..RU75,85¥200198409-198708

FILTER SIDE

sub96132-51300¥120

23100PHOSE(FOR FUEL PUMP TO FUEL TUBE)

main95332-06020i22R..RU75,85¥350198409-198606

*H,L=120

sub95333-06020¥480

main95333-06012i22R..RU75,85¥500198606-198702

sub95333-06020¥480

main95333-06020i22R..RU75,85¥480198702-198708

*H,L=120

sub95337-06020¥570

23801PIPE OR HOSE SUB-ASSY, CARBURETOR FUEL, NO.1

main23811-71011i3Y,4Y..YU6#,7#,8#¥3,230198409-198708

main95332-06020i22R..RU75,85¥350198409-198606

L=200(*H,L=190)

sub95333-06020¥480

main95333-06019i22R..RU75,85¥500198606-198702

L=200(*H,L=190)

sub95333-06020¥480

main95333-06020i22R..RU75,85¥480198702-198708

L=200(*H,L=190)

sub95337-06020¥570

23801CCLIP(FOR CARBURETOR FUEL HOSE)

main96132-30600i3Y,4Y..YU6#,7#,8#¥200198409-198708

sub96132-51100¥120

23814PIPE, FUEL DELIVERY

main23814-35090i22R..RU75,85¥3,030198409-198708

23841CLAMP, FUEL PIPE(HOSE), NO.1

main23841-35050i22R..RU75,85¥640198409-198708

9161160620

main91611-60620¥90

9161160832

main91611-60832¥190

9165160620

main91651-60620¥80

13 parts on this diagram · 2 diagrams in section
