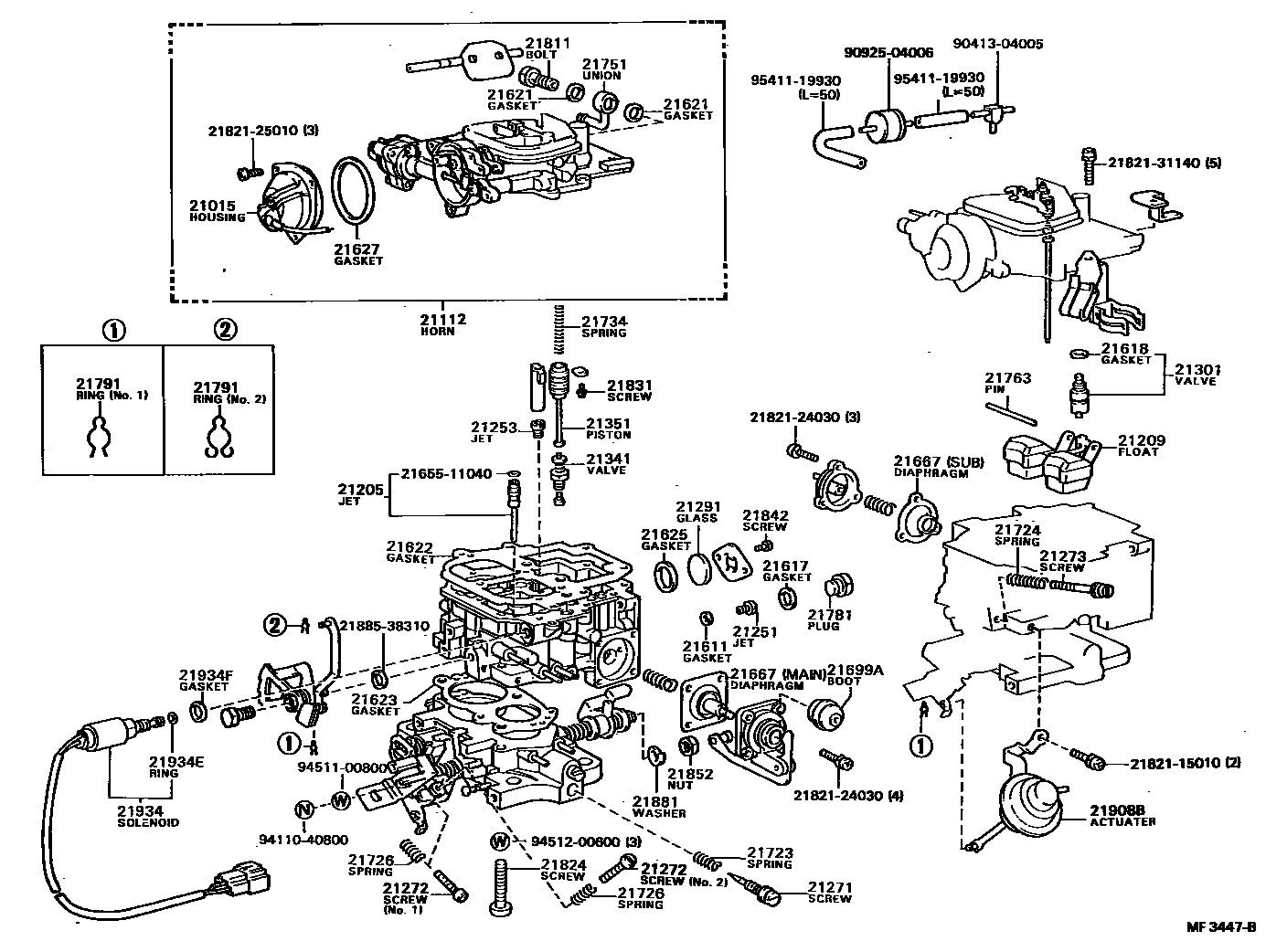

CARBURETOR

0001 1 0002 1 0003 1

21015HOUSING SUB-ASSY, COIL

main21015-35130i22R..RU75,85198409-198708

21112HORN, AIR

main21012-73130i3Y,4Y..YU6#,70,80198409-198608

main21012-73260i4Y..YU6#,71,81198608-198708

main21112-35330i22R..RU75,85198409-198708

sub21112-35331

21205JET SUB-ASSY, SLOW

main21205-34400i3Y,4Y..YU6#,70,80198409-198608

main21205-35240i22R..RU75,85198409-198708

main21205-73220i4Y..YU6#,71,81198608-198708

21209FLOAT SUB-ASSY

main21209-37041i22R..RU75,85198409-198708

main21209-73110i3Y,4Y..YU6#,7#,8#198409-198708

21251JET, 1ST MAIN

main21244-36120i3Y,4Y..YU6#,70,80198409-198608

main21251-44350i4Y..YU6#,71,81198608-198708

main90999-41114i22R..RU75,85198409-198708

21253JET, 2ND MAIN

main21253-37040i22R..RU75,85198409-198708

sub21253-35410

main21253-71030i3Y,4Y..YU6#,7#,8#198409-198708

21271SCREW, IDLE ADJUSTING

main21207-34420i3Y..YU60..EUR198409-198608

main21271-63070i22R..RU75,85198409-198708

sub21271-35010

main21271-71030i3Y,4Y..YU6#,7#,8#..ARL,GEN,SA198409-198708

21272SCREW, 1ST IDLE ADJUSTING

main21272-71010i22R..RU75,85198412-198708

NO.2

main21844-33010i22R..RU75,85198409-198412

NO.1,NO.2

main21844-33010i22R..RU75,85198412-198708

NO.1

21273SCREW, THROTTLE ADJUSTING

main21272-71030i3Y,4Y..YU6#,7#,8#198409-198708

main21273-35210i22R..RU75,85198409-198708

21291GLASS, LEVEL GAGE

main21291-34320i22R..RU75,85198409-198708

main21291-36120i3Y,4Y..YU6#,7#,8#198409-198708

21301VALVE SUB-ASSY, NEEDLE

main21301-35010i22R..RU75,85198409-198708

main21301-71030i3Y,4Y..YU6#,7#,8#198409-198708

21341VALVE, POWER

main21304-61060i22R..RU75,85198409-198708

21351PISTON, POWER

main21351-37040i22R..RU75,85198409-198708

21611GASKET, MAIN JET

main21611-22010i22R..RU75,85198409-198708

main21611-40021i3Y,4Y..YU6#,7#,8#198409-198708

21617GASKET, MAIN PASSAGE PLUG

main21617-30010i22R..RU75,85198409-198708

main21633-44150i3Y,4Y..YU6#,7#,8#198409-198708

21618GASKET, NEEDLE VALVE SEAT

main21618-14010i22R..RU75,85198409-198708

main21637-71030i3Y,4Y..YU6#,7#,8#198409-198708

21621GASKET, UNION NIPPLE

main21633-24030i22R..RU75,85198409-198708

21622GASKET, AIR HORN

main21622-63010i22R..RU75,85198409-198708

sub21622-35540

main21622-71030i3Y,4Y..YU6#,70,80198409-198608

sub21622-71060

main21622-73220i4Y..YU6#,71,81198608-198708

21623GASKET, BODY FLANGE

main21623-35290i22R..RU75,85198409-198708

sub21623-35510

21625GASKET, LEVEL GAGE

main21625-36120i3Y,4Y..YU6#,7#,8#198409-198708

main21655-60200i22R..RU75,85198409-198708

21627GASKET, COIL HOUSING

main21627-28150i22R..RU75,85198409-198708

21667DIAPHRAGM

main21667-35290i22R..RU75,85198409-198506

MAIN

sub21667-35330

main21667-35291i22R..RU75,85198506-198708

MAIN

sub21667-35510

main21667-38310i22R..RU75,85198409-198506

SUB

sub21675-35510

main21667-72080i22R..RU75,85198506-198708

SUB

sub21675-35510

21699BOOT(FOR PUMP PLUNGER)

main21656-71030i3Y,4Y..YU6#,7#,8#198409-198708

21699ABOOT(FOR ACCELERATION PUMP)

main21699-37040i22R..RU75,85198409-198708

21723SPRING, IDLE ADJUSTING

main21723-30030i3Y,4Y..YU6#,7#,8#198409-198708

main21723-37040i22R..RU75,85198409-198708

21724SPRING, THROTTLE ADJUSTING

main21723-38330i22R..RU75,85198409-198708

main21723-71030i3Y,4Y..YU6#,7#,8#198409-198708

21726SPRING, 1ST IDLE ADJUSTING

main21726-38310i22R..RU75,85198409-198708

21734SPRING, POWER PISTON

main21734-71010i22R..RU75,85198409-198708

21751UNION, NIPPLE

main21894-37040i22R..RU75,85198409-198708

21763PIN, FLOAT LEVER

main21763-34320i22R..RU75,85198409-198708

main21768-73110i3Y,4Y..YU6#,7#,8#198409-198708

21781PLUG, MAIN PASSAGE(FOR CARBURETOR JET)

main21776-44310i3Y,4Y..YU6#,7#,8#198409-198708

main21781-15230i22R..RU75,85198409-198708

21791RING, SNAP, NO.1(FOR CARBURETOR LINK)

main21791-13010i22R..RU75,85198409-198708

NO.2

main21791-60010i22R..RU75,85198409-198708

NO.1

sub21791-13011

main21797-44050i3Y,4Y..YU6#,7#,8#198409-198708

21811BOLT, UNION NIPPLE

main21811-11060i22R..RU75,85198409-198708

21824SCREW, SET(FOR 1ST IDLE CAM FOLLOWER SET)

main93110-16035i22R..RU75,85198409-198708

21831SCREW, POWER PISTON STOP

main21821-15060i22R..RU75,85198409-198708

21842SCREW, SET(FOR CARBURETOR LEVEL GAGE CLAMP SET)

main21832-36120i3Y,4Y..YU6#,7#,8#198409-198708

main21842-33010i22R..RU75,85198409-198708

21852NUT, THROTTLE LEVER SET

main21852-30010i22R..RU75,85198409-198708

21881WASHER, LOCK(FOR THROTTLE SHAFT)

main21881-60010i22R..RU75,85198409-198708

21908BACTUATOR SET, IDLE-UP

main88031-36012i22R..RU75,85198409-198708

21934SOLENOID, THROTTLE VALVE

main21062-35190i22R..RU75,85198409-198708

sub21062-35191

main21391-71070i3Y,4Y..YU6#,7#,8#198409-198708

21934ERING, O(FOR SOLENOID VALVE)

main21655-44101i22R..RU75,85198409-198708

21934FGASKET

main21617-10010i22R..RU75,85198409-198708

2165511040RING, O(FOR LIFTER ROD)

main21655-11040

2182115010SCREW, 2ND THROTTLE VALVE SET

main21821-15010

2182124030SCREW, 2ND THROTTLE VALVE SET

main21821-24030

2182125010SCREW, 2ND THROTTLE VALVE SET

main21821-25010

2182131140SCREW, 2ND THROTTLE VALVE SET

main21821-31140

2188538310

main21885-38310

9041304005

main90413-04005

9092504006

main90925-04006

9411040800

main94110-40800

9451100800

main94511-00800

9451200600

main94512-00600

9541119930

main95411-19930

54 parts on this diagram · 3 diagrams in section
