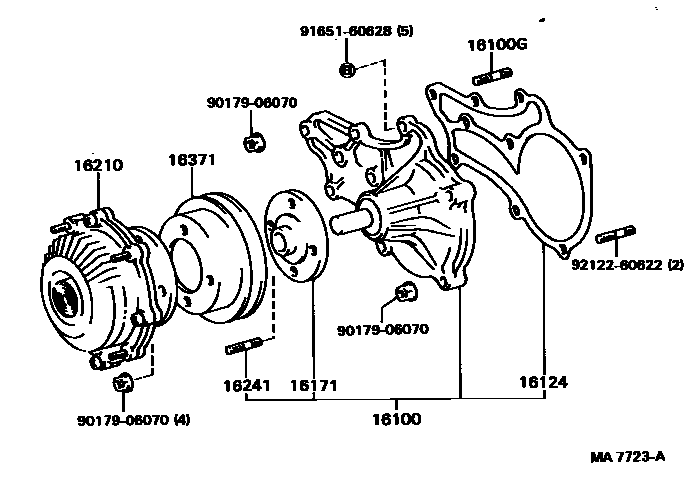

WATER PUMP

0001 1 0002 1 0003 1

16100PUMP ASSY, ENGINE WATER

main16100-39355i22R..RU75,85198409-198708

sub16100-39356

main16100-78010i1W..WU9#198409-198708

sub16100-78011

main16100-79035i3Y,4Y..YU6#,7#,8#198409-198707

sub16100-79036

main16100-79036i4Y..YU6#,71,81198707-198708

sub16100-79037

16100GBOLT, STUD(FOR WATER PUMP SET)

main16193-38030i22R..RU75,85198409-198708

16124GASKET, WATER PUMP COVER

main16124-71010i3Y,4Y..YU6#,7#,8#198409-198708

sub16124-71011

main16129-35020i22R..RU75,85198409-198708

sub16124-35010

16171SEAT, WATER PUMP PULLEY

main16171-13020i22R..RU75,85198409-198708

main16171-78010i1W..WU9#198409-198708

16210COUPLING ASSY, FLUID

main16210-35011i22R..RU75,85198409-198708

main16210-73010i3Y..YU60..EUR198409-198608

main16210-73010i4Y..YU81..LHD198609-198708

SWITZERLAND SPEC

main16250-78020i1W..WU90..ARL198409-198708

16241BOLT, STUD(FOR WATER PUMP COUPLING)

main16192-70010i3Y,4Y..YU6#,7#,8#198409-198708

main16241-28020i22R..RU75,85198409-198708

main90116-06042i1W..WU90..ARL198409-198708

16371PULLEY, FAN

main16173-35030i22R..RU75,85198409-198708

main16173-78010i1W..WU9#198409-198708

subS1617-32110

main16371-71010i3Y,4Y..YU6#,7#,8#198409-198708

sub16371-71021

9017906070

main90179-06070

9165160628

main91651-60628

9212260622

main92122-60622

10 parts on this diagram · 3 diagrams in section
