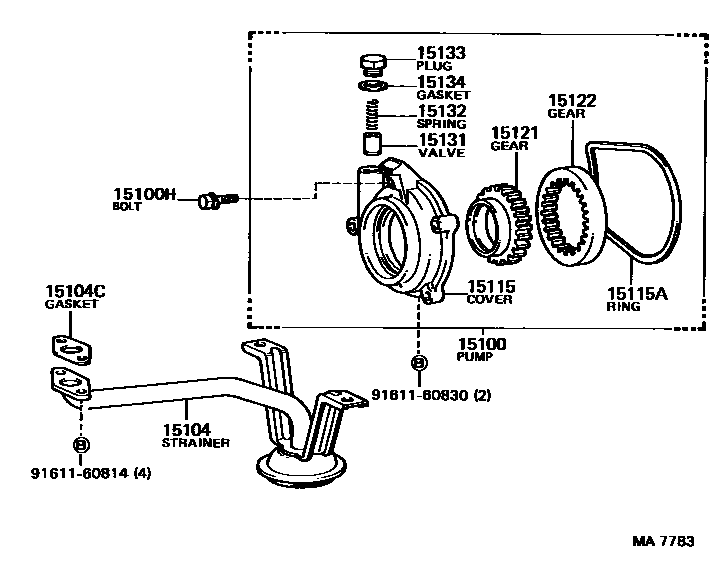

ENGINE OIL PUMP

0001 1 0002 1 0003 1

15100PUMP ASSY, OIL

main15100-35020i22R..RU75,85198409-198708

main15110-71010i3Y,4Y..YU6#,7#,8#198409-198708

main15110-78010i1W..WU9#198409-198708

sub15100-78040

sub90031-05124

15100HBOLT, SEAL

main15189-38020i22R..RU75,85198409-198708

15104STRAINER SUB-ASSY, OIL

main15104-38040i22R..RU75,85198409-198708

main15104-71010i3Y,4Y..YU6#,7#,8#198409-198708

main15401-78010i1W..WU9#198409-198708

sub15401-78020

15104CGASKET(FOR OIL STRAINER)

main15147-38020i22R..RU75,85198409-198708

15115COVER, OIL PUMP

main15115-35020i22R..RU75,85198409-198708

main15115-71015i3Y,4Y..YU6#,7#,8#198409-198708

15115ARING, O(FOR OIL PUMP COVER)

main15188-38030i22R..RU75,85198409-198708

15121GEAR, OIL PUMP DRIVE

main15121-38020i22R..RU75,85198409-198708

15122GEAR, OIL PUMP DRIVEN

main15122-38020i22R..RU75,85198409-198708

main15122-78010i1W..WU9#198409-198708

15131VALVE, OIL PUMP RELIEF

main15131-24010i3Y,4Y..YU6#,7#,8#198409-198708

main15131-38030i22R..RU75,85198409-198708

15132SPRING, OIL PUMP RELIEF VALVE

main15132-40010i3Y,4Y..YU6#,7#,8#198409-198708

main15132-46010i22R..RU75,85198409-198708

15133PLUG, OIL PUMP RELIEF VALVE

main15133-20010i22R..RU75,85198409-198708

main15133-24010i3Y,4Y..YU6#,7#,8#198409-198708

15134GASKET, OIL PUMP RELIEF VALVE

main15134-20010i22R..RU75,85198409-198708

9161160814

main91611-60814

9161160830

main91611-60830

14 parts on this diagram · 3 diagrams in section
