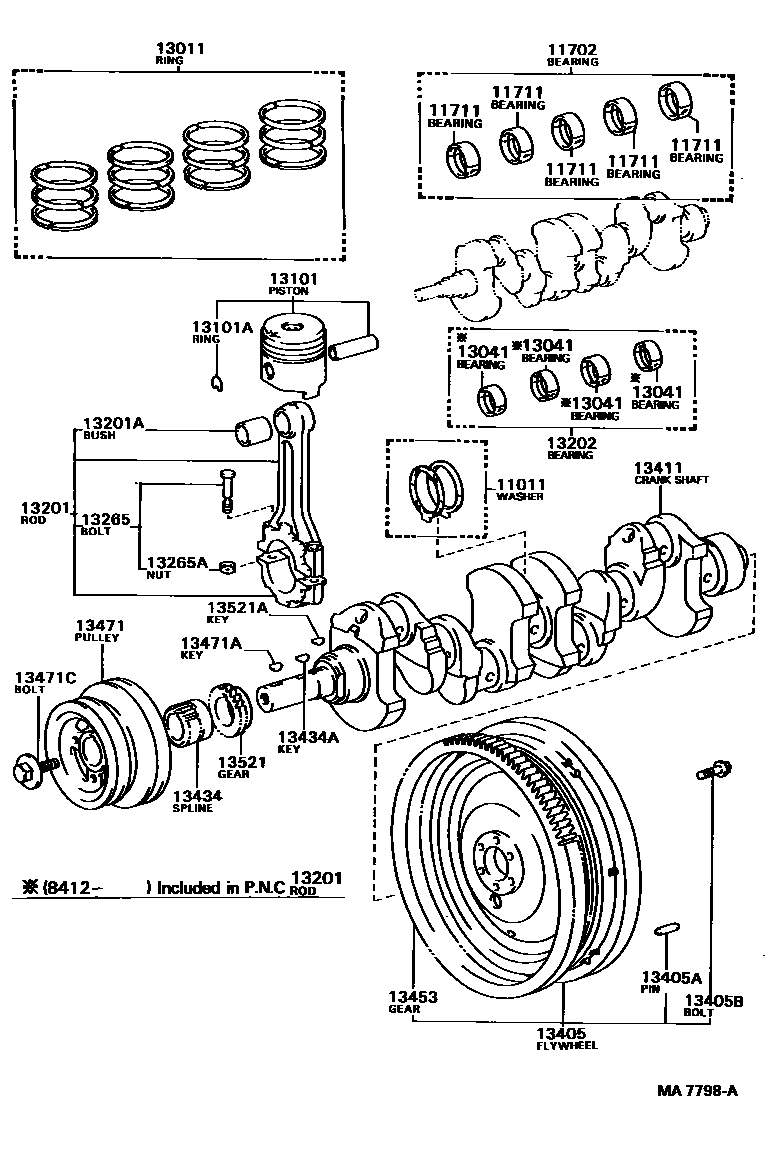

CRANKSHAFT & PISTON
11011WASHER SET, CRANKSHAFT THRUST
STD
STD,STD
O/S 0.125,O/S 0.125
O/S 0.250,O/S 0,250
11702BEARING SET, CRANKSHAFT
U/S 0.25,U/S 0.25
U/S 0.25,U/S 0.25
11711BEARING, CRANKSHAFT
MARK"3",MARK 3
MARK"4",MARK 4
MARK"5",MARK 5
MARK"1",MARK 1
MARK"2",MARK 2
MARK"3",MARK 3
13011RING SET, PISTON
STD,STD
O/S 0.50,O/S 0.50
O/S 1.00,O/S 1.00
13041BEARING, CONNECTING ROD
13101PISTON SUB-ASSY, W/PIN
STD,STD
STD,CHINA SPEC,STD
STD,STD
STD,CHINA SPEC,STD
STD,STD
O/S 0.50,O/S 0.50
O/S 0.50,CHINA SPEC,O/S 0.50
O/S 0.50,O/S 0.50
CHINA SPEC, O/S 0.50
O/S 0.75,O/S 0.75
O/S 0.75,CHINA SPEC,O/S 0.75
O/S 1.00,O/S 1.00
O/S 1.00,CHINA SPEC,O/S 1.00
13101ARING, HOLE SNAP(FOR PISTON PIN)
13202BEARING SET, CONNECTING ROD
U/S 0.25,U/S 0.25
13265BOLT, CONNECTING ROD
13265ANUT, HEXAGON(FOR CONNECTING ROD BOLT)
13405APIN, STRAIGHT(FOR FLYWHEEL)
L=23,OD=8,L=23,OD=8
L=24,OD=10,L=24,OD=10
13405BBOLT, FLYWHEEL SETTING
*11-1.25PX26-18
13434SPLINE, OIL PUMP DRIVE
N=42
13434AKEY(FOR OIL PUMP DRIVE SPLINE)
13453GEAR, FLYWHEEL RING
13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)
13521AKEY(FOR CRANKSHAFT TIMING GEAR)
24 parts on this diagram · 3 diagrams in section
