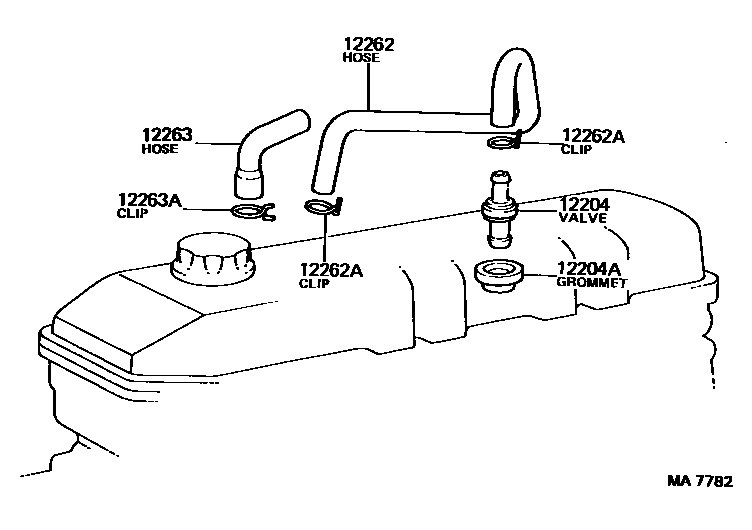

VENTILATION HOSE

0001 1 0002 1 0003 1

12204VALVE SUB-ASSY, VENTILATION

main12204-15022i3Y,4Y..YU6#,7#,8#198605-198708

main12204-35030i22R..RU75,85198409-198708

main12204-71010i3Y,4Y..YU6#,70,80198409-198605

sub12204-15030

12204AGROMMET(FOR VENTILATION SYSTEM)

main90480-18001i3Y,4Y..YU6#,7#,8#198409-198708

main90480-18180i22R..RU75,85198409-198708

12262HOSE, VENTILATION, NO.2

main12261-38011i22R..RU75,85198409-198708

main12262-71010i3Y,4Y..YU6#,7#,8#198409-198708

12262ACLIP(FOR VENTILATION HOSE NO.2)

main90467-15006i22R..RU75,85198409-198708

12263HOSE, VENTILATION, NO.3

main12262-35040i22R..RU75,85198409-198708

12263ACLIP(FOR VENTILATION HOSE)

main90467-19003i22R..RU75,85198409-198708

6 parts on this diagram · 3 diagrams in section
