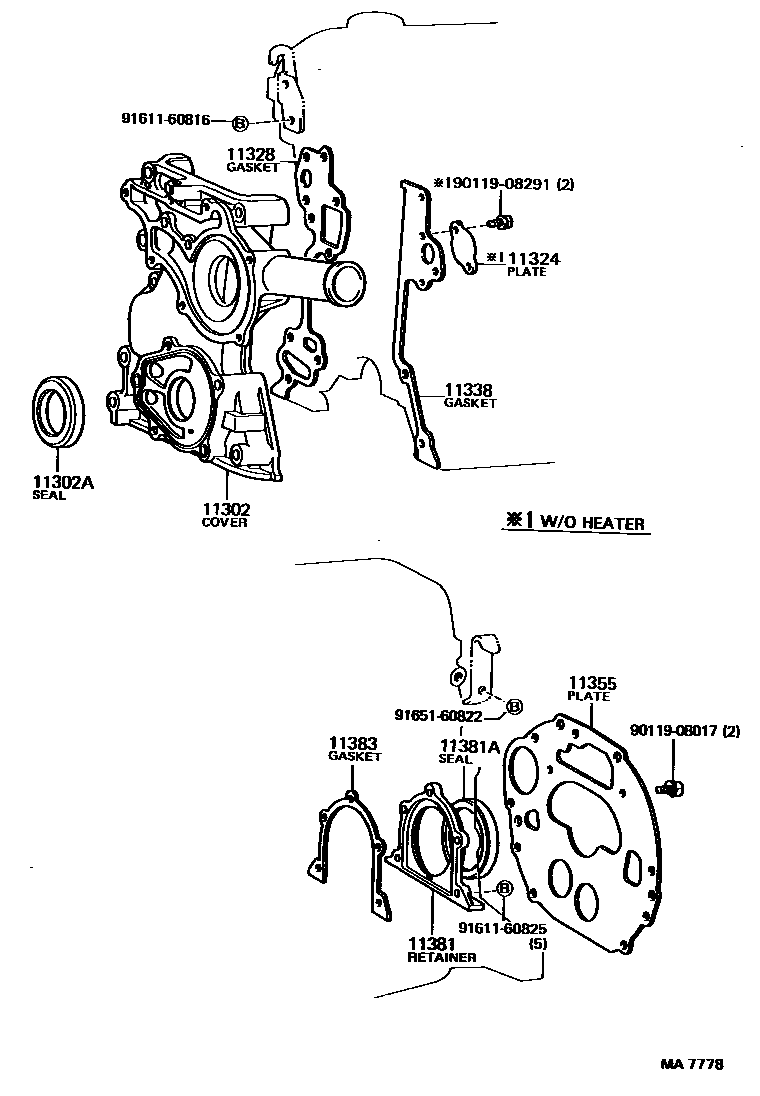

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1 0003 1 0004 1

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11302-35010i22R..RU75,85198409-198708

main11321-71010i3Y,4Y..YU6#,7#,8#198409-198708

main11321-78020i1W..WU9#198409-198708

sub11321-78040

sub11323-78020

sub90119-08618

sub90301-21003

11302ASEAL, OIL(FOR TIMING CHAIN OR BELT COVER)

main90311-42007i3Y,4Y..YU6#,7#,8#198409-198706

sub90311-42019

main90311-42019i4Y..YU6#,71,81198706-198708

sub90311-42036

main90311-45006i22R..RU75,85198409-198708

sub90311-45011

main90311-58005i1W..WU9#198409-198708

sub90033-11030

11324PLATE, TIMING CHAIN COVER

main11324-38020i22R..RU75,85..GEN198409-198708

W/O HEATER

11328GASKET, TIMING GEAR OR CHAIN COVER

main11328-35020i22R..RU75,85198409-198708

sub11328-35030

main11328-71010i3Y,4Y..YU6#,7#,8#198409-198708

sub11328-71011

11338GASKET, TIMING CHAIN COVER, NO.2

main11329-35020i22R..RU75,85198409-198708

sub11329-35030

11355PLATE, REAR END

main11355-35010i22R..RU75,85198409-198708

main11355-71010i3Y,4Y..YU6#,7#,8#198409-198708

11381RETAINER, ENGINE REAR OIL SEAL

main11381-38010i22R..RU75,85198409-198708

main11381-71010i3Y,4Y..YU6#,7#,8#198409-198708

11381ASEAL, ENGINE REAR OIL

main90311-80003i3Y,4Y..YU6#,7#,8#198409-198708

sub90311-80009

main90311-80004i22R..RU75,85198409-198708

HTC 80 100 12

sub90311-80010

main90311-99002i1W..WU9#198409-198708

subSZ311-00004

11383GASKET, ENGINE REAR OIL SEAL RETAINER

main11383-25010i3Y,4Y..YU6#,7#,8#198409-198708

main11383-35010i22R..RU75,85198409-198708

sub11383-35020

9011908017

main90119-08017

9011908291

main90119-08291

9161160816

main91611-60816

9161160825

main91611-60825

9165160822

main91651-60822

14 parts on this diagram · 4 diagrams in section
