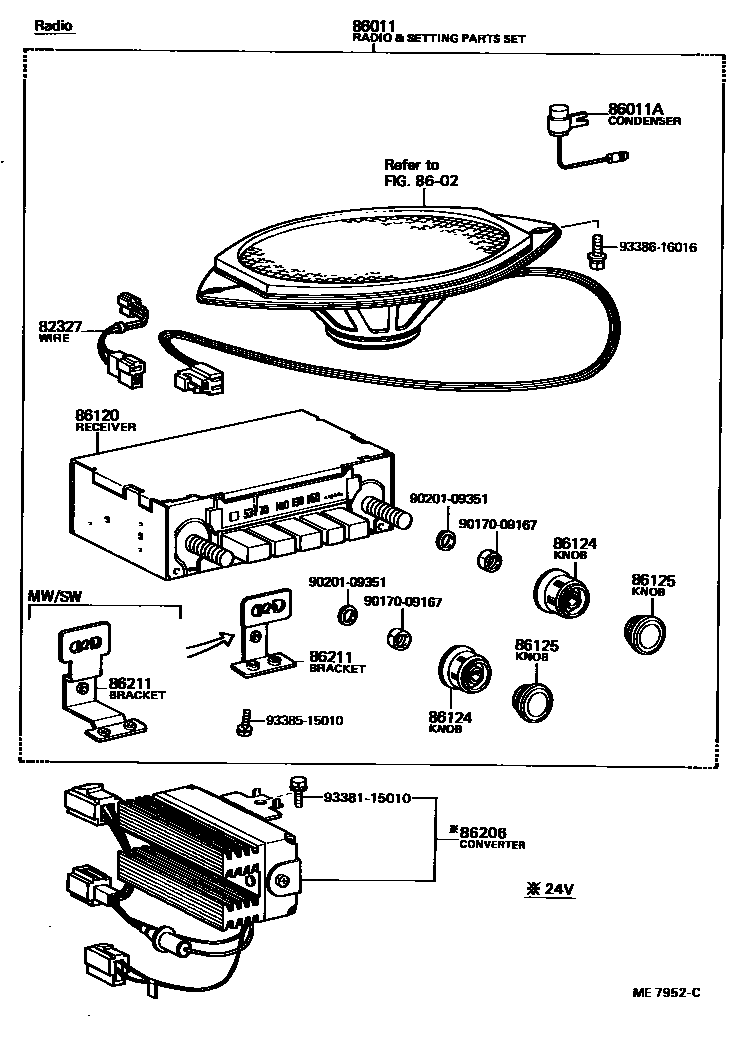

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1

82327WIRE, TO RADIO INSTRATION

main82311-95400iBU32;BU2#,30,31,36,40,HU30,40,50,RU2#,30,WU40,50..GEN,GHI197708-198411

12V,MW/SW 5-BUTTON

86011RADIO & SETTING PARTS SET

main86011-95400iBU20..ST..EUR;BU20,25,30..LHD..5H..WT197708-198408

24V,AM 5-BUTTON

main86011-95401iRU20,30;BU2#,30,31,32,40,HU30,40,50,RU25..ARL,GEN,GHI197708-198411

12V,AM 5-BUTTON

main86011-95405iBU32;BU2#,30,31,HU30,RU2#,30..GEN,GHI197708-198411

12V & 24V,MW/SW 5-BUTTON

86011ACONDENSER, RADIO SETTING

main90980-04011iBU40..LHD198302-198408

24V

main90980-04011iBU2#,30,HU30,JU20,RU2#,30197708-198008

main90980-04040iBU40..RHD198008-198411

8602

86120RECEIVER ASSY, RADIO

main86120-95400iBU20,30,JU20..EUR197708-198408

24V,AM 5-BUTTON

main86120-95A00iRU20,30;BU2#,3#,40,HU30,40,50,RU25,WU40,50..ARL,GEN,GHI197708-198411

12V,AM 5-BUTTON

main86120-95A03iBU32;BU2#,30,31,36,40,HU30,40,50,RU2#,30,WU40,50..GEN,GHI197708-198411

12V & 24V,MW/SW 5-BUTTON

86124KNOB, RADIO RECEIVER CONTROL

main86124-95A00iBU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50197708-198411

86125KNOB, RADIO RECEIVER SWITCH

main86125-95A00iBU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50197708-198411

86206CONVERTER SUB-ASSY, VOLTAGE

main86270-39015iBU40,WU40..LHD198302-198408

24V,TAPE PLAYER

main86270-39025iBU40,WU40..LHD198104-198408

24V,MW/SW

86211BRACKET, RADIO, NO.1

main86211-95400iBU2#,30,31,32,HU30,JU20,RU2#,30197708-198411

AM

main86211-95401iBU32;BU2#,30,31,HU30,RU2#,30..GEN,GHI197708-198411

MW/SW

main86211-95402iWU40..LHD198304-198408

24V,AM

main86211-95402iBU36,40,HU40,50,WU40..RHD198204-198408

AM

main86211-95403iBU36,40,HU40,50..RHD..GEN198204-198408

MW/SW

main86211-95404iBU36,WU40,50..LHD198304-198408

12V,AM

main86211-95404iBU40..LHD198302-198408

12V & 24V,AM

main86211-95405iBU36,40,WU40,50..LHD198302-198408

MW/SW

9017009167

main90170-09167

9020109351

main90201-09351

9338115010

main93381-15010

9338515010

main93385-15010

9338616016

main93386-16016

14 parts on this diagram · 2 diagrams in section
