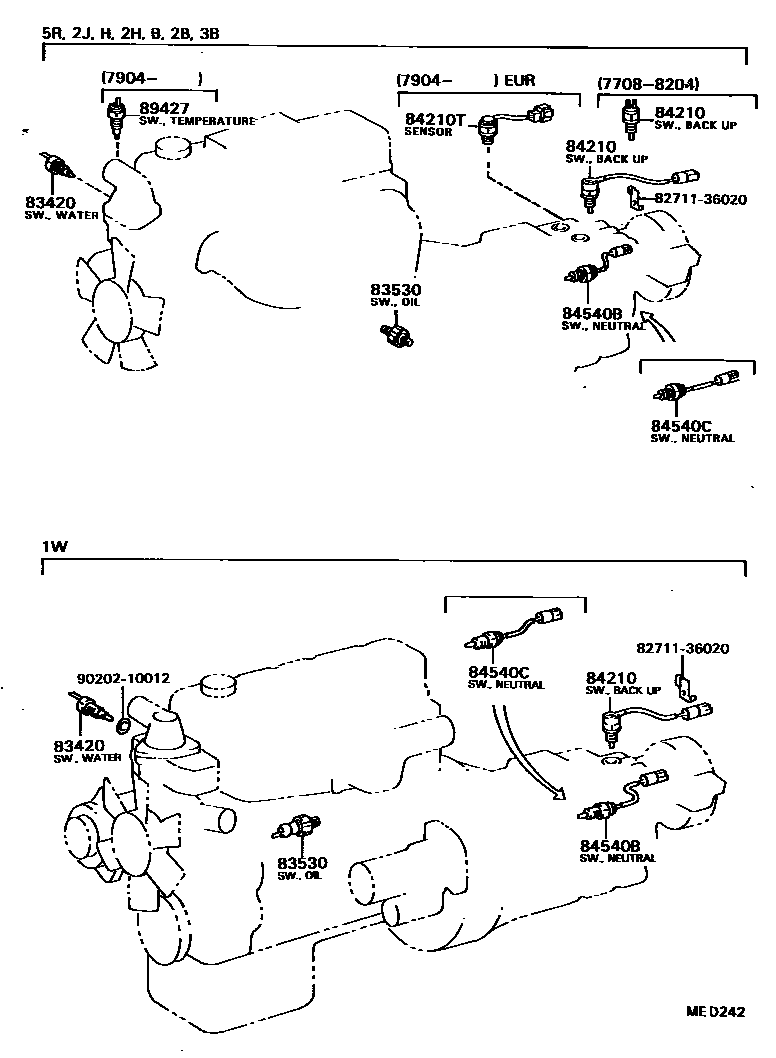

SWITCH & RELAY & COMPUTER

0001 1 0002 1 0003 1 0004 1 0005 1

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-16010iBU2#,3#,40,HU30,40,50,RU2#,30,WU40197912-198308

DENSO

sub83420-20020

main83420-20011iBU2#,30,HU30,JU20,RU2#,30197708-197912

main83420-20020iBU2#,3#,40,HU30,40,50,RU2#,30,WU40197912-198308

YAZAKI

main83420-20020iBU2#,3#,40,HU40,50,RU2#,30,WU40,50198308-198411

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-14010iBU2#,30,HU30,JU20197708-198411

sub83530-14030

main83530-30030iRU2#,30197708-198004

sub83530-14010

main83530-30043iWU40,50198304-198408

sub83530-14040

84210SWITCH ASSY, BACK-UP LAMP

main84210-14010iBU2#,3#,HU30,JU20,RU2#,30197708-198204

main84210-36010iBU2#,3#,40,HU40,50,RU2#,30,WU40,50198204-198411

84210TSENSOR ASSY, SHIFT POINT

main84220-36020iRU20,30..EUR197904-198408

sub84220-20050

84540BSWITCH ASSY, NEUTRAL START (FOR TILT CAB)

main84540-36010iBU20,RU25..ARL;RU20,30..T3..ARL197708-198008

main84540-36011iBU23,25,31,36,40,HU40,50,RU25,WU40,50;BU20,30,32,HU30,RU20,30..(T1,T3)..(CBU,IV3)198008-198411

84540CSWITCH ASSY, NEUTRAL (FOR EXHAUST BRAKE)

main84540-36010iBU20,30,HU30..RHD..WT..GEN197708-197907

main84540-36011iBU36,WU40;BU20,30,HU40..RHD..TR..(GEN,GHI)198008-198411

89427SWITCH, TEMPERATURE DETECT

main89428-35010iRU20,30..EUR197904-198408

8271136020WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-36020

9020210012

main90202-10012

9 parts on this diagram · 5 diagrams in section
