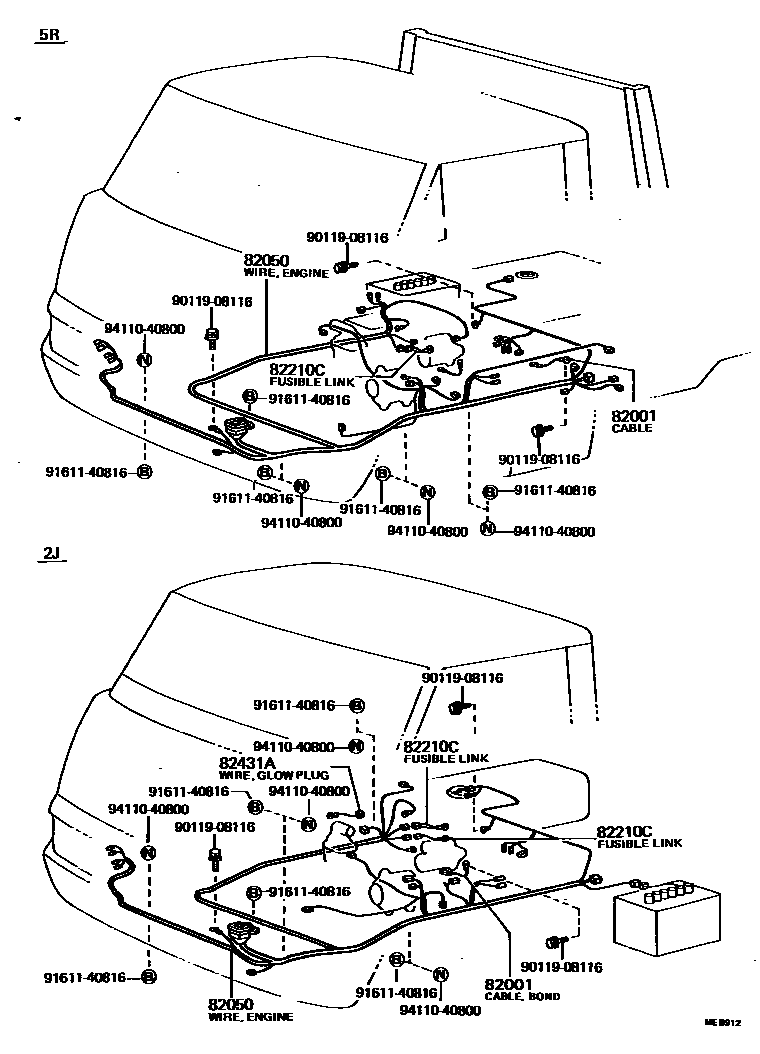

WIRING & CLAMP

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

82001CABLE, BOND, NO.1

main82046-95401iBU2#,30,31,32198204-198411

main82046-95402iBU36,40,HU40,50,WU40,50198204-198408

main90980-07040iRU20..V197708-198010

main90980-07100iHU30197708-198104

main90980-07124iRU2#,30..DMP,TR198008-198408

main90980-07125iBU2#,3#197708-198204

main90980-07223iWU40,50198304-198408

ALTERNATOR

82050WIRE ASSY, ENGINE

main82121-95407iBU20,30..RHD..(GEN,GHI)198103-198204

main82121-95408iBU20,30..RHD198103-198204

W/EDIC OR *EB

main82121-95409iBU2#,30,32..LHD198103-198204

main82121-95410iBU2#,3#..LHD198103-198204

W/EDIC

main82121-95412iRU20,30..RHD..GEN198103-198204

main82121-95413iRU20,30..ARL198103-198204

main82121-95414iRU2#,30..LHD..GEN198103-198204

main82121-95415iRU20,30..EUR198103-198204

main82121-95416iHU30..ARL198103-198104

main82121-95417iHU30..GEN198103-198104

main82121-95418iHU30..GEN198103-198104

W/EDIC

main82121-95419iBU30..RHD..IV3198103-198204

W/FOG LAMP;W/FOG LAMP & (EDIC OR *EB)

main82121-95420iBU32..ARL198104-198204

main82121-95426iBU40..RHD198204-198408

main82121-95427iHU40,50..GEN..IV3198302-198311

sub82121-95428

main82121-95428iHU40,50..GEN198204-198408

W/EDIC

main82121-95429iHU50..ARL198204-198408

main82121-95438iBU20,30..RHD198204-198411

W/EDIC OR *EB

main82121-95439iBU20,25,30,32..LHD..(GEN,GHI)198204-198408

main82121-95440iBU2#,3#..LHD198204-198408

W/EDIC

main82121-95441iRU20,30..RHD..GEN198204-198408

main82121-95442iRU20,30..ARL198204-198408

main82121-95443iRU2#,30..LHD..GEN198204-198408

main82121-95444iRU20,30..EUR198204-198301

main82121-95445iBU32..ARL198204-198408

main82121-95446iBU20,30..RHD..(GEN,GHI)198204-198411

main82121-95450iBU40..LHD198302-198408

main82121-95451iHU40..ARL198302-198304

main82121-95456iBU36..RHD..CBU198302-198408

main82121-95459iBU36..RHD..CBU198302-198408

W/EDIC OR *EB

main82121-95460iBU36..ARL198304-198408

main82121-95461iBU36..LHD198304-198408

main82121-95462iBU36..LHD198304-198408

W/EDIC OR *EB

main82121-95467iRU20,30..EUR198301-198408

main82121-95468iWU40..RHD198304-198408

main82121-95469iHU40..ARL198304-198408

main82121-95470iWU40,50..LHD198304-198408

12V

main82121-95471iWU40..LHD198304-198408

24V

main82121-95476iBU20,30..EUR198301-198408

W/EDIC

main82121-95477iBU20,30..EUR198301-198408

main82410-95B09iBU20,30..RHD197708-197801

W/EDIC

main82410-95B13iBU20,30..RHD..WT197708-197801

W/EDIC & *EB

main82410-95B14iBU20,30..RHD197708-197801

main82410-95B16iHU30..RHD..GEN197708-197801

main82410-95B17iHU30..RHD197708-197801

W/EDIC OR *EB

main82410-95B18iBU20,30..LHD197708-197801

main82410-95B20iJU20197708-197801

main82410-95B21iHU30..LHD197708-197801

main82410-95B22iBU20,30..LHD197708-197801

W/EDIC

main82410-95B23iHU30..LHD197708-197801

W/EDIC

main82410-95B36iRU2#,30..ARL197803-197904

main82410-95B37iBU20,30..RHD197801-198008

W/EDIC

main82410-95B41iBU20,30..RHD..WT197801-197807

W/EDIC & *EB

main82410-95B42iBU20,30..RHD197801-198008

main82410-95B43iRU20,30..RHD197708-197904

main82410-95B44iHU30..RHD..GEN197801-198008

main82410-95B45iHU30..RHD197801-197807

W/EDIC OR *EB

main82410-95B46iBU2#,30..LHD197801-198008

sub82410-95B50

main82410-95B47iRU20,30..LHD197708-197904

main82410-95B48iJU20197801-197904

main82410-95B49iHU30..LHD197801-198008

sub82410-95B51

main82410-95B50iBU2#,30..LHD197801-198008

W/EDIC

main82410-95B51iHU30..LHD197801-198008

W/EDIC

main82410-95B56iBU20,30..RHD..WT197807-197907

W/EDIC & *EB

main82410-95B57iHU30..RHD197907-198008

W/EDIC

main82410-95B57iHU30..RHD197807-197907

W/EDIC OR *EB

main82410-95B59iRU2#,30..RHD..GEN197904-198008

main82410-95B60iRU2#,30..LHD..GEN197904-198008

main82410-95B61iRU2#,30..ARL197904-198008

main82410-95B62iRU20,30..EUR197904-198008

main82410-95B71iBU20,30..RHD..GEN198008-198103

main82410-95B72iBU20,30..RHD198008-198103

W/EDIC OR *EB

main82410-95B73iBU2#,30..LHD198008-198103

sub82410-95B74

main82410-95B74iBU2#,30..LHD198008-198103

W/EDIC

main82410-95B76iRU20,30..RHD..GEN198008-198103

main82410-95B77iRU20,30..ARL198008-198103

main82410-95B78iRU2#,30..LHD..GEN198008-198103

main82410-95B79iRU20,30..EUR198008-198103

main82410-95B80iHU30..ARL198008-198103

main82410-95B81iHU30..GEN198008-198103

sub82410-95B82

main82410-95B82iHU30..GEN198008-198103

W/EDIC

main82410-95B83iBU30..RHD..IV3198008-198103

W/FOG LAMP;W/FOG LAMP & (EDIC OR *EB)

82210HARNESS ASSY, WIRING COWL TO HEADLAMP, NO.1

main82131-95407iBU40..RHD198204-198408

main82131-95408iHU40,50..ARL198204-198408

main82131-95409iHU40,50..GEN..IV3198302-198311

sub82131-95410

main82131-95410iHU40,50..GEN198204-198408

W/EDIC

main82131-95425iBU20,30..RHD..(GEN,GHI)198204-198411

main82131-95426iBU20,30..RHD..(GEN,GHI)198204-198411

W/EDIC OR *EB

main82131-95427iBU20,32..ARL198204-198302

main82131-95428iBU20,25,30,32..LHD198204-198408

main82131-95429iBU2#,30,31,32..LHD..(GEN,GHI)198204-198408

12V,W/EDIC

main82131-95430iBU20,30..EUR198204-198408

W/*RHW,W/*RHW & EDIC

main82131-95431iRU20,30..RHD..GEN198204-198408

main82131-95432iRU20,30..ARL198204-198302

main82131-95433iRU2#,30..LHD..GEN198204-198408

main82131-95434iRU20,30..EUR198204-198408

main82131-95435iBU20,25,30..LHD..5H..WT198204-198408

24V,W/EDIC

main82131-95436iBU20,30..EUR198204-198408

W/HEADLAMP CLEANER

main82131-95437iBU20,30..EUR198204-198408

W/HEADLAMP CLEANER & EDIC

main82131-95438iBU20,30..RHD..TR..(GEN,GHI)198204-198411

W/*EB & *FSW

main82131-95440iBU40..LHD198302-198408

12V

main82131-95441iBU40..LHD198302-198408

24V

main82131-95454iBU36..RHD..CBU198302-198408

main82131-95455iBU36..RHD..CBU198302-198408

W/*EB,EDIC OR *FSW

main82131-95456iBU36..ARL198304-198408

main82131-95457iBU36..LHD198304-198408

main82131-95458iBU36..LHD198304-198408

W/EDIC OR *EB

main82131-95459iWU40..RHD198304-198408

main82131-95460iWU40..RHD198304-198408

W/*EB

main82131-95461iWU40,50..LHD198304-198408

12V

main82131-95462iWU40,50..LHD198304-198408

12V,W/*EB

main82131-95463iWU40..LHD198304-198408

24V,W/*EB

main82131-95464iWU40..LHD198304-198408

24V

main82131-95470iBU20,32..ARL198302-198408

main82131-95471iRU20,30..ARL198302-198408

main82210-95463iBU20,30..RHD197708-197711

main82210-95465iHU30..RHD..GEN197708-197711

main82210-95466iBU20,30..RHD197708-197711

W/EDIC OR *EB

main82210-95467iHU30..ARL197708-197711

W/*EB OR EDIC

main82210-95468iBU20,30..LHD..5H..GEN197708-197711

main82210-95470iHU30..LHD..5H197708-197711

main82210-95471iBU20,30..LHD..5H..GEN197708-197711

W/EDIC

main82210-95472iHU30..5F197708-197711

W/EDIC

main82210-95474iBU20,30,JU20..EUR197708-197711

W/*RHW

main82210-95486iRU2#,30..ARL197803-198008

main82210-95B02iBU20,30..RHD..GEN197711-198008

main82210-95B03iRU20,30..RHD197708-198008

main82210-95B04iHU30..RHD..GEN197711-198008

main82210-95B05iBU20,30..RHD197711-198008

W/EDIC OR *EB

main82210-95B06iHU30..RHD..GEN197711-198008

W/*EB OR EDIC

main82210-95B07iBU2#,30..LHD..5H..GEN197711-198008

main82210-95B08iRU20,30..LHD197708-198008

main82210-95B09iHU30..LHD..5H197711-198008

main82210-95B10iBU20,30..5F;BU20,30,JU20..EUR197711-198008

W/EDIC

main82210-95B11iHU30..5F197711-198008

main82210-95B11iHU30..LHD..5H197711-198008

W/EDIC

main82210-95B12iBU20,30,JU20..EUR197711-198008

W/*RHW

main82210-95B15iRU20,30..EUR197904-198008

main82210-95B31iBU20,30..RHD..GEN198008-198103

main82210-95B32iBU20,30..RHD..GEN198008-198103

W/EDIC OR *EB

main82210-95B32iBU30..RHD..IV3198008-198101

W/FOG LAMP

main82210-95B33iBU20..ARL198008-198103

main82210-95B34iBU2#,30..LHD198008-198103

main82210-95B35iBU2#,30..LHD..GEN198008-198103

W/EDIC

main82210-95B36iBU20,30..EUR198008-198103

W/*RHW,W/*RHW & EDIC

main82210-95B39iRU20,30..RHD..GEN198008-198103

main82210-95B40iRU20,30..ARL198008-198103

main82210-95B41iRU2#,30..LHD..GEN198008-198103

main82210-95B42iRU20,30..EUR198008-198103

main82210-95B43iHU30..ARL198008-198103

main82210-95B44iHU30..GEN198008-198103

main82210-95B45iHU30..GEN198008-198103

W/EDIC

main82210-95B46iBU20,30..EUR198008-198103

W/EDIC

main82210-95B47iBU20,30..EUR198008-198103

W/HEADLAMP CLEANER

main82210-95B48iBU20,30..EUR198008-198103

W/HEADLAMP CLEANER & EDIC

main82210-95B63iBU20,30..RHD..(GEN,GHI)198103-198204

main82210-95B64iBU20,30..RHD..(GEN,GHI)198103-198204

W/EDIC OR *EB

main82210-95B65iBU20,32..ARL198103-198204

main82210-95B66iBU2#,30,32..LHD198103-198204

main82210-95B67iBU2#,3#..LHD..(GEN,GHI)198103-198204

W/EDIC(12V)

main82210-95B68iBU20,30..EUR198103-198204

W/*RHW,W/*RHW & EDIC

main82210-95B71iRU20,30..RHD..GEN198103-198204

main82210-95B72iRU20,30..ARL198103-198204

main82210-95B73iRU2#,30..LHD..GEN198103-198204

main82210-95B74iRU20,30..EUR198103-198204

main82210-95B75iHU30..ARL198103-198104

main82210-95B76iHU30..GEN198103-198104

main82210-95B77iHU30..GEN198103-198104

W/EDIC

main82210-95B78iBU20..ST..EUR;BU2#,30..LHD..5H..WT198104-198204

24V,W/EDIC

main82210-95B78iBU20,30..EUR198103-198104

W/EDIC

main82210-95B79iBU20,30..EUR198103-198204

W/HEADLAMP CLEANER

main82210-95B80iBU20,30..EUR198103-198204

W/HEADLAMP CLEANER & EDIC

main82210-95B83iBU20,30..RHD..TR..GEN198101-198103

W/*EB & *FSW

main82210-95B83iBU30..RHD..IV3198101-198103

W/FOG LAMP;W/FOG LAMP,*EB & *FSW

main82210-95B84iBU30..RHD..IV3198103-198204

W/FOG LAMP;W/FOG LAMP,*EB & *FSW

main82210-95B84iBU20,30..RHD..TR..(GEN,GHI)198103-198204

W/*EB & *FSW

82210CFUSIBLE LINK

main90982-08035iBU20,30,JU20..EUR197809-198008

24V,L=120,1.25BLACK

main90982-08038iBU2#,30,JU20197708-197809

L=110,2BLUE

main90982-08038iBU2#,30..ARL,GEN197809-198008

12V,L=110,2BLUE

main90982-08058iRU2#,30197708-197912

L=110,0.85R,0.5G,12V,L=110,0.85RED & 0.5GREEN

main90982-08064iBU2#,30,HU30,JU20197708-197912

L=130,1.25BLACK & 0.5GREEN

main90982-08068iHU30197708-198408

12V,L=120,3BLACK

main90982-08139iBU2#,3#,40,WU40,50..ARL,GEN,GHI198008-198411

12V,L=110,2BLUE

main90982-08140iRU2#,30198008-198408

12V,L=120,0.85RED & 0.3GREEN

main90982-08141iBU40..LHD198008-198408

24V,L=120,1.25BLACK

main90982-08142iBU2#,30,31,32198008-198411

L=130,1.25BLACK & 0.3PINK

main90982-08143iRU2#,30197912-198008

12V,L=110,0.85RED & 0.3PINK

main90982-08145iHU30198008-198104

12V,L=130,1.25BLACK & 0.3PINK

main90982-08145iBU2#,30,HU30197912-198008

L=130,1.25BLACK & 0.3PINK

main90982-08146iBU36,40,HU40,50,WU40,50198204-198408

12V,24V,L=130,1.25BLACK & 0.5G

main90982-08178iWU40..LHD198304-198408

24V,L=110,1.0YELLOW &1.25BLACK

main90982-08185iWU40..LHD198304-198408

24V,L=110,0.5GREEN

82431AWIRE, GLOW PLUG

main82431-95400iBU2#,30,JU20197801-197811

main82431-95401iHU30197801-197811

9011908116

main90119-08116

9161140816

main91611-40816

9411040800

main94110-40800

8 parts on this diagram · 7 diagrams in section
