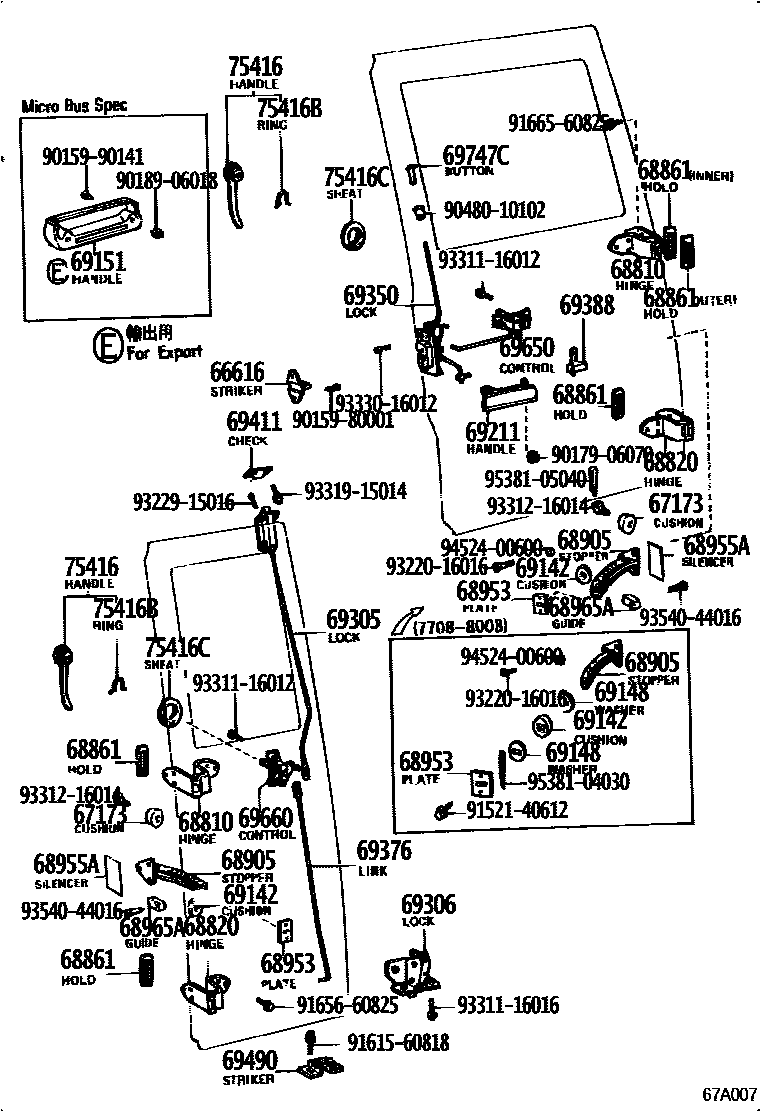

BACK DOOR LOCK & HINGE

66616STRIKER, TAIL GATE LOCK

main69410-95010iBU20,JU20,RU20..HRF,SRF¥1,280197708-198408

sub69410-37010¥1,320

67173CUSHION, BACK DOOR

main67173-92605iBU20,RU20..HRF,SRF¥650198008-198408

68810HINGE ASSY, BACK DOOR, UPPER

main68011-92605iBU20,RU20..HRF,SRF¥17,400198108-198408

main68801-92602iBU20,RU20..SRF¥7,400198408-198408

main68801-92605iBU20,JU20,RU20..V197708-198008

main68801-92606iBU20,RU20..HRF,SRF¥16,600198008-198108

sub68011-92605¥17,400

68820HINGE ASSY, BACK DOOR, LOWER

main68013-92605iBU20,RU20..HRF,SRF¥18,000198108-198408

main68803-92601iBU20,RU20..SRF¥8,100198408-198408

main68803-92605iBU20,JU20,RU20..V197708-198008

main68803-92606iBU20,RU20..HRF,SRF¥17,100198008-198108

sub68013-92605¥18,000

68861HOLD, BACK DOOR HINGE

main68861-92601iBU20,RU20..SRF¥440198408-198408

INNER

main68861-92605iBU20,JU20,RU20..HRF,SRF¥710197708-198408

INNER

main68862-92605iBU20,JU20,RU20..HRF,SRF¥800197708-198408

OUTER

main68863-92600iBU20,RU20..SRF¥510198408-198408

OUTER

68905STOPPER SUB-ASSY, BACK DOOR OPEN

main68905-92606iBU20,JU20,RU20..V¥2,760197708-198008

main68905-92607iBU20,RU20..HRF,SRF¥4,430198008-198408

68953PLATE, BACK DOOR OPEN STOPPER ARM GUIDE

main68953-92605iBU20,JU20,RU20..V¥940197708-197802

sub68954-92605¥1,400

main68953-92605iBU20,JU20,RU20..HRF,SRF¥940197802-198408

RH

sub68954-92605¥1,400

main68954-92605iBU20,JU20,RU20..HRF,SRF¥1,400197802-198408

LH

68955ASILENCER, BACK DOOR OPEN STOPPER

main68955-92605iBU20,RU20..HRF,SRF¥650198008-198408

68965AGUIDE, BACK DOOR OPEN STOPPER

main68965-92605iBU20,RU20..HRF,SRF¥920198008-198408

69142CUSHION, DOOR OPEN STOPPER

main69142-92605iBU20,JU20,RU20..V¥350197708-198008

main69142-92606iBU20,RU20..HRF,SRF¥330198008-198408

69148WASHER, DOOR OPEN STOPPER

main69148-92600iBU20,JU20,RU20..V¥340197708-198008

69151HANDLE, BACK DOOR INSIDE PULL

main69285-92160iBU20,RU20..BUS198204-198408

main69285-95402iBU20,RU20..VSG..GEN¥700197708-198104

MICRO BUS SPEC

main69285-95402iBU20,RU20..BUS¥700198104-198204

69211HANDLE, BACK DOOR OUTSIDE, RH

main69210-95403iBU20,JU20,RU20..HRF,SRF¥3,840197708-198408

69305LOCK SUB-ASSY, BACK DOOR, UPPER

main69370-92605iBU20,JU20,RU20..HRF,SRF¥6,400197708-198408

69306LOCK SUB-ASSY, BACK DOOR, LOWER

main69350-95A00iBU20,JU20,RU20..HRF,SRF¥3,950197708-198408

69350LOCK ASSY, BACK DOOR

main69330-92605iBU20,JU20,RU20..HRF,SRF¥11,300197708-198408

69376LINK, BACK DOOR LOCK

main69375-92605iBU20,JU20,RU20..HRF,SRF¥2,230197708-198408

69388SNAP, ROD(FOR DOOR LOCK)

main69388-12010iBU20,JU20,RU20..HRF,SRF¥400197708-198408

69411CHECK, BACK DOOR

main69431-92605iBU20,JU20,RU20..HRF,SRF¥2,360197708-198408

69490STRIKER ASSY, BACK DOOR LOCK

main69450-95A00iBU20,JU20,RU20..HRF,SRF¥1,070197708-198408

69650CONTROL ASSY, BACK DOOR LOCK REMOTE, RH

main69650-92605iBU20,JU20,RU20..HRF,SRF¥3,710197708-198408

69660CONTROL ASSY, BACK DOOR LOCK REMOTE, LH

main69660-92606iBU20,JU20,RU20..V¥4,940197708-198012

main69660-92606iBU20,RU20..HRF,SRF¥4,940198012-198408

W/CHILD PROTECTOR

69747CBUTTON, DOOR LOCKING(FOR BACK DOOR)

main69747-20020iBU20,JU20,RU20..HRF,SRF¥250197708-198408

75416HANDLE, TAIL GATE, INSIDE

main69271-95110iBU20,JU20,RU20..HRF,SRF¥1,760197708-198408

75416BRING, SNAP (FOR BACK DOOR INSIDE HANDLE)

main90520-01192iBU20,JU20,RU20..HRF,SRF¥140197708-198408

75416CSHEET(FOR BACK DOOR INSIDE HANDLE)

main69171-95110iBU20,JU20,RU20..HRF,SRF¥320197708-198408

9015980001

main90159-80001¥120

9015990141

main90159-90141

9017906070

main90179-06070¥180

9018906018

main90189-06018¥80

9048010102

main90480-10102¥190

9152140612

main91521-40612¥110

9161560818

main91615-60818¥120

9165660825

main91656-60825¥220

9166560825

main91665-60825¥170

9322016016

main93220-16016¥170

9322915016

main93229-15016¥110

9331116012

main93311-16012¥90

9331116016

main93311-16016¥120

9331216014

main93312-16014¥70

9331915014

main93319-15014¥140

9333016012

main93330-16012¥130

9354044016

main93540-44016¥110

9452400600

main94524-00600¥170

9538104030

main95381-04030¥50

9538105040

main95381-05040¥80

46 parts on this diagram · 1 diagram in section
