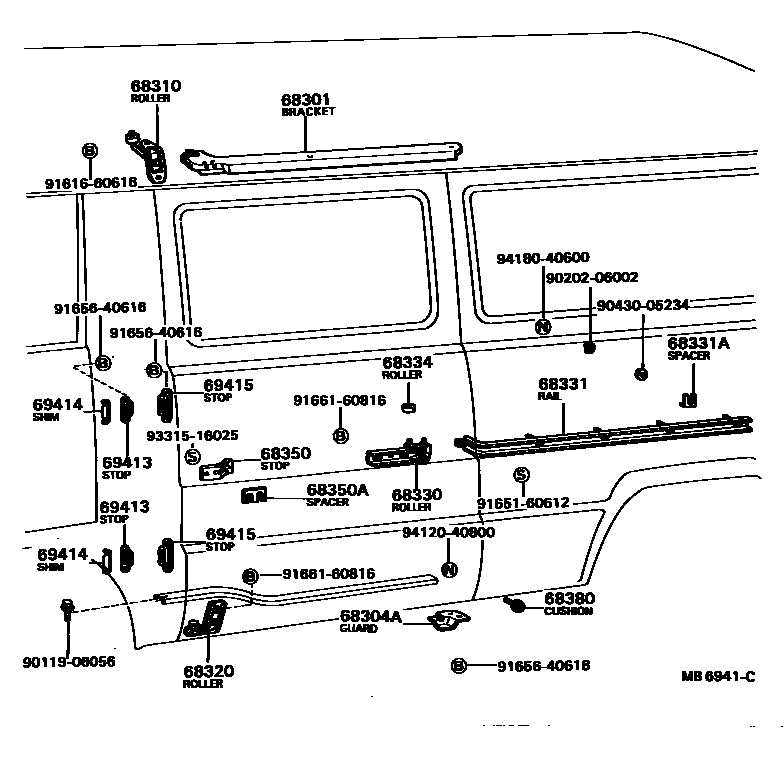

SLIDE ROLLER & RAIL

68301BRACKET SUB-ASSY, SLIDE DOOR UPPER RAIL

main68303-95A00iBU20,RU20..LHD..(HRF,SRF)197708-198408

main68304-95A00iBU20,RU20..RHD..SRF197708-198408

68304AGUARD, SLIDE DOOR LOWER RAIL

main68411-95A00iBU20,JU20,RU20..LHD..(HRF,SRF)197708-198408

main68412-95A00iBU20,RU20..RHD..SRF197708-198408

68310ROLLER ASSY, SLIDE DOOR, UPPER

main68310-95A00iBU20,JU20,RU20..LHD..V197708-198012

main68310-95A01iBU20,RU20..LHD..(HRF,SRF)198012-198408

main68320-95A00iBU20,RU20..RHD..SRF197708-198012

main68320-95A01iBU20,RU20..RHD..SRF198012-198408

68320ROLLER ASSY, SLIDE DOOR, LOWER

main68350-92615iBU20,JU20,RU20..LHD..V197708-198408

sub68350-92616

main68360-92605iBU20,RU20..RHD..SRF197708-198012

sub68360-92606

main68360-92606iBU20,RU20..RHD..SRF198012-198408

68330ROLLER ASSY, SLIDE DOOR, CENTER

main68370-92615iBU20,JU20,RU20..LHD..(HRF,SRF)197708-198408

main68380-92605iBU20,RU20..RHD..SRF197708-198408

68331RAIL, SLIDE DOOR, CENTER

main68301-95A00iBU20,JU20,RU20..LHD..(HRF,SRF)197708-198408

main68302-95A00iBU20,RU20..RHD..SRF197708-198408

68331ASPACER, SLIDE DOOR CENTER RAIL

main68333-95A00iBU20,JU20,RU20..HRF,SRF197708-198408

68334ROLLER, SLIDE DOOR CENTER, NO.2

main68334-95700iBU20,JU20,RU20..HRF,SRF197708-198408

68350STOPPER ASSY, SLIDE DOOR OPEN

main69405-95A00iBU20,JU20,RU20..HRF,SRF197708-198408

68350ASPACER, SLIDE DOOR OPEN STOPPER

main69411-95A00iBU20,JU20,RU20..HRF,SRF197708-198408

68380CUSHION ASSY, SLIDE DOOR

main53382-20011iBU20,JU20,RU20..HRF,SRF197708-198408

sub53382-90A00

69413STOP, SLIDE DOOR DOWN MALE

main69413-95700iBU20,JU20,RU20..HRF,SRF197708-198408

69414SHIM, SLIDE DOOR DOWN STOP MALE

main69418-95700iBU20,JU20,RU20..HRF,SRF197708-198408

69415STOPPER, SLIDE DOOR DOWN FEMALE

main69415-95A00iBU20,JU20,RU20..HRF,SRF197708-198408

9011906056

main90119-06056

9020206002

main90202-06002

9043005234

main90430-05234

9161660616

main91616-60616

9165160612

main91651-60612

9165640616

main91656-40616

9165640618

main91656-40618

9166160816

main91661-60816

9331516025

main93315-16025

9412040800

main94120-40800

9418040600

main94180-40600

25 parts on this diagram · 1 diagram in section
