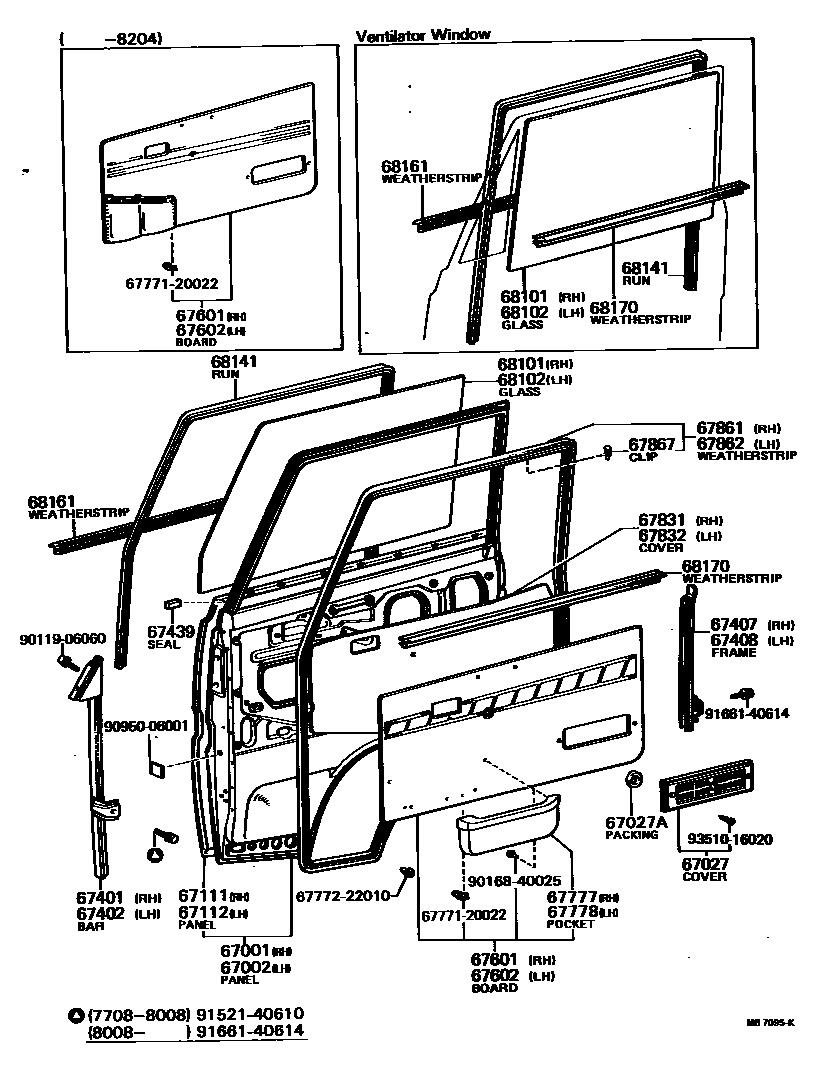

FRONT DOOR PANEL & GLASS

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-95404iBU20,30,RU20,30..WT..EUR197708-198012

NORWAY SPEC

sub67001-95407¥60,900

sub68170-95402¥2,860

main67001-95405iBU2#,30,HU30,RU2#,30..ARL,GEN197708-198012

W/VENTILATOR WINDOW

sub67001-95409¥60,900

sub68170-95403¥2,170

main67001-95406iBU20,JU20..ST..EUR¥64,200197708-198012

W/MIRROR

sub67001-95408

sub68170-95402¥2,860

main67001-95407iBU20,30,RU20,30..WT..EUR¥60,900198012-198110

sub67001-95413¥60,900

main67001-95407iBU20,30,31..GEN,GHI;BU32,HU30,RU20,30..ARL,GEN¥60,900198012-198204

NORWAY SPEC

sub67001-95413¥60,900

main67001-95408iBU20..ST..EUR198012-198110

W/MIRROR

main67001-95409iBU2#,3#,HU30,RU2#,30..ARL,GEN,GHI¥60,900198012-198204

W/VENTILATOR WINDOW

sub67001-95415¥60,900

main67001-95413iBU32;BU2#,30,31,36,40..GEN,GHI¥60,900198204-198308

sub67001-95414¥60,800

main67001-95414iBU32;BU2#,30,31,36,40..GEN,GHI¥60,800198308-198411

sub67001-95420¥60,800

main67001-95415iBU2#,3#,40,HU40,50,RU2#,30,WU40..ARL,GEN,GHI¥60,900198204-198308

W/VENTILATOR WINDOW

sub67001-95416¥60,800

main67001-95416iBU2#,3#,40,HU40,50,RU2#,30,WU40,50..ARL,GEN,GHI¥60,800198308-198411

W/VENTILATOR WINDOW

main67001-95417iBU20..ST..EUR¥60,900198110-198204

W/MIRROR

sub67001-95419¥60,900

main67001-95419iBU20,30,RU20,30..EUR¥60,900198204-198308

sub67001-95420¥60,800

main67001-95420iBU20,30,RU20,30..EUR¥60,800198308-198408

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-95404iBU2#,30,HU30,JU20,RU2#,30¥60,900197708-198012

sub67002-95407¥60,900

sub68170-95402¥2,860

main67002-95406iBU2#,30,HU30,RU2#,30..ARL,GEN¥60,900197708-198012

W/VENTILATOR WINDOW

sub67002-95409¥60,900

sub68220-95401¥2,170

main67002-95407iBU32,RU20,30..ARL,GEN;BU2#,30,31,RU25..GEN,GHI¥60,900198012-198204

sub67002-95413¥60,900

main67002-95409iBU2#,3#,HU30,RU2#,30¥60,900198012-198204

W/VENTILATOR WINDOW

sub67002-95417¥60,900

main67002-95413iRU20,30..ARL,GEN;BU2#,30,36,40,HU40,50,RU25,WU40..GEN,GHI¥60,900198204-198308

sub67002-95414¥60,800

main67002-95414iBU2#,30,36,40..GEN,GHI¥60,800198308-198411

sub67002-95422¥60,800

main67002-95417iBU2#,3#,40,HU40,50,RU2#,30,WU40..ARL,GEN,GHI¥60,900198204-198308

W/VENTILATOR WINDOW

sub67002-95418¥60,800

main67002-95418iBU36,HU40,50..GEN;BU2#,30,31,32,40,RU2#,30,WU40,50..ARL,GEN,GHI¥60,800198308-198411

W/VENTILATOR WINDOW

main67002-95419iBU20,30,RU20,30..EUR¥60,900198110-198204

sub67002-95421¥60,900

main67002-95421iBU20,30,RU20,30..EUR¥60,900198204-198308

sub67002-95422¥60,800

main67002-95422iBU20,30,RU20,30..EUR¥60,800198308-198408

main67002-95424iBU36,HU40,50..ARL198308-198408

67027COVER SUB-ASSY, DOOR VENTILATING HOLE

main68300-95400iBU2#,3#,HU30,JU20,RU2#,30¥1,400197708-198204

main68300-95401iBU2#,3#,40,HU40,50,RU2#,30,WU40,50¥1,380198204-198411

67027APACKING, FRONT SCUFF

main58644-95A00iBU2#,3#,HU30,JU20,RU2#,30,WU40,50¥190197708-198411

67111PANEL, FRONT DOOR, OUTER RH

main67111-95405iBU20,30,RU20,30..WT..EUR¥17,800198110-198408

main67111-95405iBU20..ST..EUR¥17,800198110-198204

W/MIRROR

main67111-95901iBU20..ST..EUR¥15,700197907-198411

67112PANEL, FRONT DOOR, OUTER LH

main67112-95404iBU20,30,RU20,30..EUR¥17,800198110-198408

main67112-95901iBU2#,3#,HU30,RU2#,30¥15,700197907-198411

67401BAR SUB-ASSY, FRONT DOOR WINDOW, FRONT RH

main67401-95400iBU32;BU2#,30,31,36,40..EUR,GEN,GHI¥1,630197708-198411

67402BAR SUB-ASSY, FRONT DOOR WINDOW, FRONT LH

main67402-95400iHU40,50..GEN;HU30,JU20,RU2#,30,WU40,50¥1,550197708-198411

67407FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67407-95400iBU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50¥930197708-198411

67408FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67408-95400iBU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50¥930197708-198411

67439SEAL, FRONT JOINT PIECE

main67439-95400iHU40,50..GEN;HU30,JU20,RU2#,30,WU40,50197708-198411

67601BOARD SUB-ASSY, FRONT DOOR TRIM, RH

main67610-95400iBU20,30,HU30,RU2#,30..RHD¥6,400197708-198008

W/POCKET

sub67610-37040

main67610-95401iBU2#,30,HU30,JU20,RU2#,30¥6,400197708-198008

W/O POCKET

sub67610-95400¥6,400

main67610-95402iRU20..ST..ARL;RU20..RHD..GEN;BU20,30,32,RU30..RHD¥6,500198008-198204

W/POCKET

main67610-95404iRU20,30..ARL,GEN;BU2#,3#,HU30,RU25¥5,300198008-198204

W/O POCKET

sub67610-95402¥6,500

main67610-95405iBU20..5F..ARL;BU20..RHD..GEN;BU30,32,36,40,HU40,50,RU20,30..RHD¥7,900198204-198411

W/POCKET

sub67610-37050¥7,900

main67610-95406iBU36,WU40,50..LHD¥6,000198304-198408

sub67610-95408

main67610-95406iBU2#,30,31,32,RU2#,30¥6,000198204-198411

W/O POCKET

sub67610-95408

main67610-95408iBU20,30..EUR198304-198408

FINLAND SPEC

sub67610-37060¥10,700

67602BOARD SUB-ASSY, FRONT DOOR TRIM, LH

main67620-95400iBU2#,30,HU30,RU2#,30¥6,400197708-198008

W/O POCKET

sub67620-95401¥6,400

main67620-95401iBU2#,30,HU30,JU20,RU2#,30..LHD¥6,400197708-198008

W/POCKET

sub67620-37040

main67620-95403iRU20,30..ARL,GEN;BU2#,3#,HU30,RU25¥5,300198008-198204

W/O POCKET

sub67620-37060¥5,300

main67620-95407iBU2#,3#,HU30,RU2#,30..LHD198008-198204

W/POCKET

sub67620-37080

main67620-95408iHU40,50..GEN¥6,000198204-198411

W/O POCKET

sub67620-37090¥6,000

main67620-95409iBU2#,3#,40,RU2#,30,WU40,50..LHD¥7,900198204-198408

W/POCKET

sub67620-95414¥7,200

main67620-95413iBU36,HU40,50..ARL¥6,000198204-198408

sub67620-95408¥6,000

main67620-95414iBU20,30..EUR¥7,200198304-198408

FINLAND SPEC

sub67620-37110

67777POCKET, FRONT DOOR TRIM, RH

main67778-95400iBU20..5F..ARL;BU20..RHD..GEN;BU32,36,40,HU40,50,RU20,30,WU40..RHD198204-198411

sub67778-22030¥4,730

67778POCKET, FRONT DOOR TRIM, LH

main67777-95400iBU2#,3#,40,RU2#,30,WU40,50..LHD198204-198408

sub67777-22040¥4,730

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-95402iBU2#,30,HU30,JU20,RU2#,30197708-198008

main67831-95403iBU2#,3#,40,HU30,40,50,RU2#,30,WU40,50¥760198008-198411

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67832-95402iBU2#,30,HU30,JU20,RU2#,30197708-198008

main67832-95403iBU2#,3#,40,HU30,40,50,RU2#,30,WU40,50¥760198008-198411

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-95402iBU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50¥6,300197708-198411

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-95402iBU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50¥6,300197708-198411

67867CLIP, DOOR WEATHERSTRIP

main67867-95401iBU2#,3#,40,HU30,40,50,RU2#,30,WU40,50¥210197708-198411

WHITE

main67868-30040iBU2#,3#,40,HU40,50,RU2#,30,WU40,50¥110198107-198411

NATURAL

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68111-95403iHU40,50..GEN;HU30,JU20,RU2#,30,WU40¥10,000197708-198411

*TEM,T=4.0

sub68111-95402¥10,900

main68111-95405iBU2#,3#,40,HU30,40,50,RU2#,30,WU40,50..ARL,GEN,GHI¥8,100197708-198411

W/VENTILATOR WINDOW

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68112-95403iHU40,50..GEN;HU30,JU20,RU2#,30,WU40,50¥10,000197708-198411

*TEM,T=4.0

sub68112-95402¥10,900

main68112-95405iBU2#,3#,40,HU30,40,50,RU2#,30,WU40,50..ARL,GEN,GHI¥8,100197708-198411

W/VENTILATOR WINDOW

68141RUN, FRONT DOOR GLASS

main68141-95404iHU40,50..GEN;HU30,JU20,RU2#,30,WU40,50¥3,150197708-198411

main68141-95405iBU2#,3#,40,HU30,40,50,RU2#,30,WU40,50..ARL,GEN,GHI¥2,760197708-198411

W/VENTILATOR WINDOW

sub68141-95404¥3,150

68161WEATHERSTRIP, FRONT DOOR GLASS, OUTER

main68160-95400iHU40,50..GEN;HU30,JU20,RU2#,30,WU40,50¥2,710197708-198411

RH

main68160-95401iBU2#,30,31,32,HU30,RU2#,30,WU40,50..ARL,GEN,GHI¥2,660197708-198411

RH,W/VENTILATOR WINDOW

main68210-95400iBU2#,30,31,32,HU30,RU2#,30,WU40,50..ARL,GEN,GHI¥2,660197708-198411

LH,W/VENTILATOR WINDOW

main68210-95401iHU40,50..GEN;HU30,JU20,RU2#,30,WU40,50¥2,710197708-198411

LH

68170WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER

main68170-95400iHU30,RU2#,30;BU2#,30,JU20..EUR,GEN¥2,870197708-198012

sub68170-95402¥2,860

main68170-95401iBU2#,30,HU30,RU2#,30..ARL,GEN¥2,190197708-198012

RH,W/VENTILATOR WINDOW

sub68170-95403¥2,170

main68170-95402iHU40,50..GEN;HU30,RU2#,30,WU40,50¥2,860198012-198411

main68170-95403iBU2#,3#,40,HU30,40,50,RU2#,30,WU40,50..ARL,GEN,GHI¥2,170198012-198411

RH,W/VENTILATOR WINDOW

main68220-95400iBU2#,30,HU30,RU2#,30..ARL,GEN¥2,190197708-198012

LH,W/VENTILATOR WINDOW

sub68220-95401¥2,170

main68220-95401iBU2#,3#,40,HU30,40,50,RU2#,30,WU40,50..ARL,GEN,GHI¥2,170198012-198411

LH,W/VENTILATOR WINDOW

6777120022WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-20022¥200

6777222010WEATHERSTRIP, BACK DOOR TRIM, LH

main67772-22010¥170

9011906060

main90119-06060¥600

9016840025

main90168-40025¥70

9095006001

main90950-06001¥170

9152140610

main91521-40610¥110

9166140614

main91661-40614¥120

9351016020

main93510-16020¥240

33 parts on this diagram · 1 diagram in section
