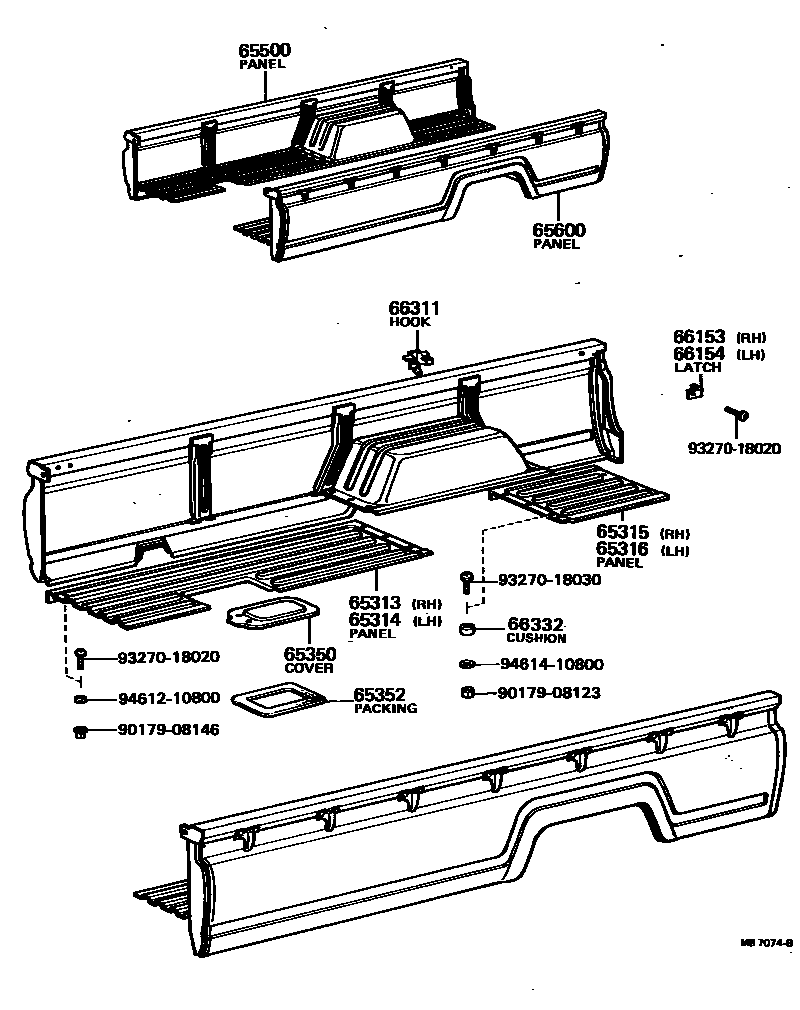

REAR BODY SIDE PANEL

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

65313PANEL, FLOOR FRONT CORNER, RH

main65313-95404iBU20,RU20..T1197708-198411

main65313-95405iRU20..TW1197708-198408

65314PANEL, FLOOR FRONT CORNER, LH

main65314-95403iBU20,RU20..T1197708-198411

main65314-95404iRU20..TW1197708-198408

65315PANEL, FLOOR REAR CORNER, RH

main65315-95405iBU20,RU20..T1,TW1197708-198411

sub65315-25010

65316PANEL, FLOOR REAR CORNER, LH

main65316-95405iBU20,RU20..T1,TW1197708-198411

sub65316-25010

65350COVER ASSY, BATTERY SERVICE HOLE

main65305-95402iBU20,RU20..T1197708-198411

65352PACKING, BATTERY SERVICE HOLE COVER

main65307-95A01iBU20,RU20..T1198008-198411

main65352-95400iBU20,RU20..T1197708-198008

sub65307-95A01

65500PANEL ASSY, REAR BODY SIDE, RH

main65500-92745iBU20..TB198302-198408

main65500-92802iBU30,HU30,RU30..TB197708-197904

main65500-92803iBU30,HU30,RU30..TB197904-197912

main65500-92804iBU30,HU30,RU30..TB197912-198008

main65500-92805iBU3#,HU30,RU30..TB198008-198204

main65500-92807iBU30..T2198302-198408

main65500-92822iBU36,40,HU40,WU40198204-198408

main65500-92855iBU30,32,RU30..T3198204-198408

main65500-92870iHU50198204-198408

FR

main65500-95411iHU30,RU30..TS197708-198408

sub65500-95432

main65500-95415iBU20,RU20..T1197708-198411

main65500-95416iRU20..TW1197708-198408

main65500-95422iRU30..TS198201-198408

main65510-93110iBU25,RU25197803-198408

main65530-93102iRU25198304-198408

SAUDI ARABIA SPEC

main65800-92870iHU50198204-198408

RR

65600PANEL ASSY, REAR BODY SIDE, LH

main65520-93110iBU25,RU25197803-198408

main65540-93102iRU25198304-198408

SAUDI ARABIA SPEC

main65600-92745iBU20..TB198302-198408

main65600-92802iBU30,HU30,RU30..TB197708-197904

main65600-92803iBU30,HU30,RU30..TB197904-197912

main65600-92804iBU30,HU30,RU30..TB197912-198008

main65600-92805iBU3#,HU30,RU30..TB198008-198204

main65600-92807iBU30..T2198302-198408

main65600-92822iBU36,40,HU40,WU40198204-198408

main65600-92855iBU30,32,RU30..T3198204-198408

main65600-92870iHU50198204-198408

FR

main65600-95409iBU20,JU20,RU20..T3197708-198408

sub65600-95424

main65600-95411iBU20,RU20..T1197708-198411

main65600-95412iRU20..TW1197708-198408

main65600-95413iHU30,RU30..TS197708-198008

main65600-95418iRU30..TS198201-198408

main65900-92870iHU50198204-198408

RR

66153LATCH, TAIL GATE FEMALE, RH

main66153-95012iBU20,RU20..T1,TW1197708-198411

main66201-93101iBU25,RU25197803-198008

main66201-93102iBU25,RU25198008-198408

66154LATCH, TAIL GATE FEMALE, LH

main66153-95012iBU20,RU20..T1,TW1197708-198411

main66202-93101iBU25,RU25197803-198008

main66202-93102iBU25,RU25198008-198408

66311HOOK, ROPE

main66311-95400iHU30,RU30..TS197708-198411

sub66311-37010

66332CUSHION, RUBBER

main66332-95A00iBU20,RU20..T1,TW1198308-198411

main90540-09060iBU20,RU20..T1,TW1197708-198308

9017908123

main90179-08123

9017908146

main90179-08146

9327018020

main93270-18020

9327018030

main93270-18030

9461210800

main94612-10800

9461410800

main94614-10800

18 parts on this diagram · 7 diagrams in section
