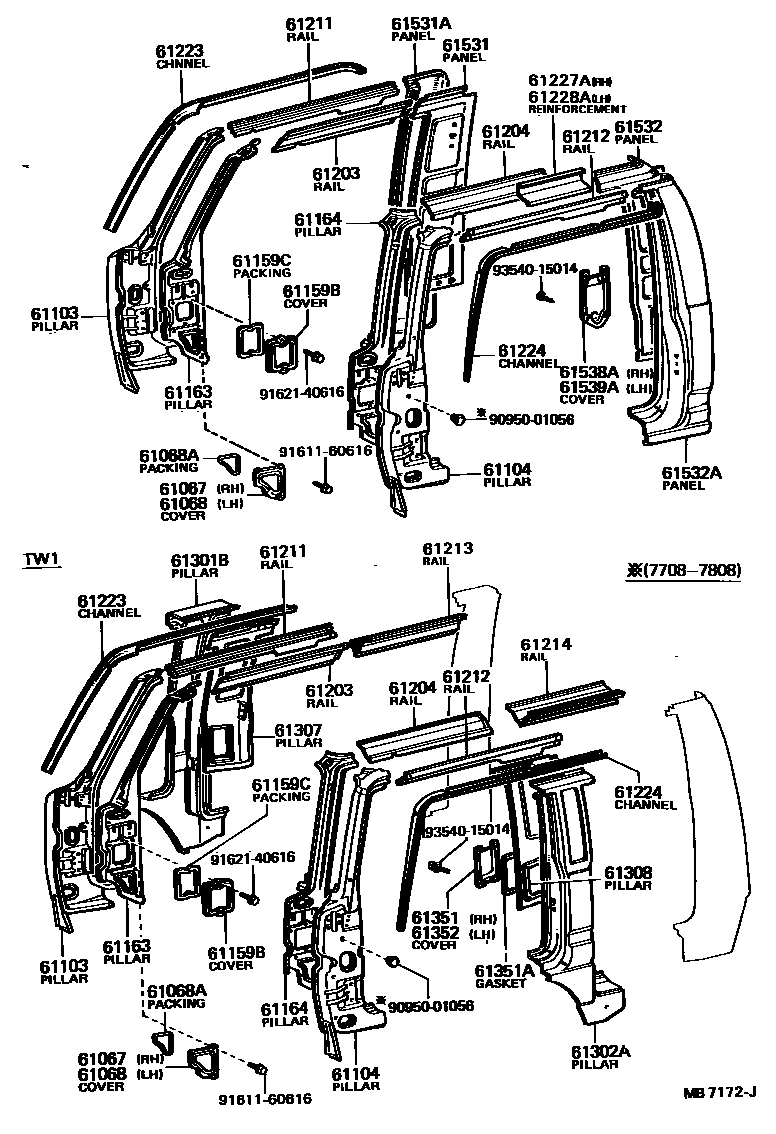

SIDE MEMBER

0001 1 0002 1 0003 1

61067COVER SUB-ASSY, FRONT PILLAR SERVICE HOLE, RH

main61067-95400iBU2#,3#,40,HU30,JU20,RU2#,30,WU40,50..LHD197708-198408

main61158-95401iBU20,30,32,36,40,HU30,40,50,RU2#,30,WU40..RHD197708-198411

61068COVER SUB-ASSY, FRONT PILLAR SERVICE HOLE, LH

main61068-95400iBU20,30,32,36,40,HU30,40,50,RU2#,30,WU40..RHD197708-198411

main61159-95401iBU2#,3#,40,HU30,JU20,RU2#,30,WU40,50..LHD197708-198408

61068APACKING, FRONT PILLAR SERVICE HOLE

main61183-95400iBU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50197708-198411

61103PILLAR SUB-ASSY, FRONT BODY, RH

main61103-95401iBU20,30,32,36,40,HU30,40,50,RU2#,30,WU40..RHD..(CBU,IV3)197708-198411

sub61103-95402

main61103-95402iBU2#,3#,40,HU30,JU20,RU2#,30,WU40,50..LHD197708-198408

61104PILLAR SUB-ASSY, FRONT BODY, LH

main61104-95400iBU20,30,32,36,40,HU30,40,50,RU2#,30,WU40..RHD..(CBU,IV3)197708-198411

main61104-95401iBU2#,3#,40,HU30,JU20,RU2#,30,WU40,50..LHD197708-198408

sub61104-95400

61159BCOVER, HEATER

main87195-95402iBU20,25,30,32,36,40,HU30,50,JU20,RU2#,30,WU40..EUR,GEN197708-198411

W/O HEATER

61159CPACKING, HEATER COVER

main61183-95400iBU20,25,30,32,36,40,HU30,50,JU20,RU2#,30,WU40..EUR,GEN197708-198411

W/O HEATER

61163PILLAR, FRONT BODY, INNER RH

main61063-95405iBU20,30,32,36,40,HU30,40,50,RU2#,30,WU40..RHD..(CBU,IV3)197708-198411

main61063-95406iBU2#,3#,40,HU30,JU20,RU2#,30,WU40,50..LHD197708-198408

main61063-95409iBU2#,3#,40,HU30,RU2#,30,WU40,50..LHD198008-198408

W/SUN VISOR=ASSISTANT

61164PILLAR, FRONT BODY, INNER LH

main61064-95405iBU20,30,32,36,40,HU30,40,50,RU2#,30,WU40..RHD..(CBU,IV3)197708-198411

main61064-95406iBU2#,3#,40,HU30,JU20,RU2#,30,WU40,50..LHD197708-198408

61203RAIL SUB-ASSY, ROOF SIDE, INNER RH

main61205-92605iBU20,JU20,RU20..LHD..(HRF,SRF)197708-198408

main61205-92615iBU20,RU20..RHD..SRF198008-198408

main61231-95403iBU20,RU20..RHD;BU20,RU20..LHD..TS;BU30,HU30,JU20,RU30..TR197708-198411

main61231-95404iBU2#,3#,40,HU30,JU20,RU2#,30,WU40,50..LHD..(DMP,TR)197803-198408

61204RAIL SUB-ASSY, ROOF SIDE, INNER LH

main61206-92605iBU20,RU20..RHD..SRF197708-198408

main61206-92615iBU20,RU20..LHD..(HRF,SRF)198008-198408

main61232-95403iBU20..TS;RU20..4H,5F;BU20..LHD..V;RU20..LHD..5H;RU20..RHD..TS..5H;BU30,HU30,JU20,RU30197708-198408

main61232-95404iBU20,30,32,36,40,HU30,40,50,RU2#,30..RHD..(DMP,TR)197803-198411

61211RAIL, ROOF SIDE, OUTER RH

main61211-95401iBU32,HU30,RU20,30..T1,T3;BU2#,30,31,36,40,HU40,50,JU20,RU25,WU40,50..DMP,TR197708-198411

main61211-95401iBU20,RU20..RHD..SRF197708-198408

LWR

main61211-95402iBU32,HU30,RU20,30..TW1197708-198408

LWR

main61215-92605iBU20,JU20,RU20..HRF,SRF197708-198408

UPR

61212RAIL, ROOF SIDE, OUTER LH

main61212-95401iBU32,HU30,RU20,30..T1,T3;BU2#,30,31,36,40,HU40,50,JU20,RU25,WU40,50..DMP,TR197708-198411

main61212-95401iBU20,JU20,RU20..LHD..(HRF,SRF)197708-198408

LWR

main61212-95402iBU20,RU20..RHD..SRF197708-198408

LWR

main61216-92605iBU20,JU20,RU20..HRF,SRF197708-198408

UPR

61213RAIL, ROOF SIDE, OUTER REAR RH

main61206-92105iBU20,JU20,RU20..HRF197708-198204

main61218-92605iBU20,RU20..SRF197708-198408

main61310-95400iBU32,HU30,RU20,30..TW1197708-198408

61214RAIL, ROOF SIDE, OUTER REAR LH

main61205-92105iBU20,JU20,RU20..HRF197708-198204

main61217-92605iBU20,RU20..SRF197708-198408

main61310-95400iBU32,HU30,RU20,30..TW1197708-198408

61223CHANNEL, ROOF DRIP, FRONT RH

main61261-95401iRU20..BUS;BU32,HU30,RU20,30..(T1,T3,VSG,VSP)..(CBU,IV3);BU2#,30,31,36,40,HU40,50,JU20,RU25,WU40,50..CBU,IV3197708-198411

main61261-95402iBU32,HU30,RU20,30..TW1197708-198408

61224CHANNEL, ROOF DRIP, FRONT LH

main61262-95401iRU20..BUS;BU32,HU30,RU20,30..T1,T3,VSG,VSP;BU2#,30,31,36,40,HU40,50,JU20,RU25,WU40,50197708-198411

main61262-95402iBU32,HU30,RU20,30..TW1197708-198408

61227AREINFORCEMENT, RAIL ROOF SIDE, RH

main61227-95400iRU20,30..RHD..T3..5H..WT..GEN..IV3197909-198408

NEW ZEALAND SPEC

main61227-95400iRU20,30..T3..5F..GEN198210-198408

SAA

main61227-95400iBU32,RU25..GEN198302-198408

OMAN SPEC

main61227-95400iRU25..ARL197708-198408

61228AREINFORCEMENT, RAIL ROOF SIDE, LH

main61228-95400iRU20,30..RHD..T3..WT..GEN..IV3197909-198008

NEW ZEALAND SPEC

main61228-95400iRU25..ARL197708-198408

main61228-95400iRU20,30..T3..5F..GEN198210-198408

SAA

main61228-95400iBU32,RU25..GEN198302-198408

OMAN SPEC

61301BPILLAR, CENTER BODY, OUTER RH

main61301-92120iBU20,JU20,RU20..HRF197708-198204

main61301-92605iBU20,RU20..RHD..SRF197708-198408

main61301-92615iBU20,RU20..LHD..SRF197708-198408

main61301-95400iBU32,HU30,RU20,30..TW1197708-198408

61302APILLAR, CENTER BODY, OUTER LH

main61302-92120iBU20,JU20,RU20..HRF197708-198204

main61302-92123iBU20,RU20..BUS198110-198408

main61302-92605iBU20,RU20..RHD..SRF197708-198408

main61302-92615iBU20,RU20..LHD..VSG..SRF197708-198408

main61302-95400iBU32,HU30,RU20,30..TW1197708-198408

61307PILLAR SUB-ASSY, CENTER BODY, INNER RH

main61303-92605iBU20,RU20..RHD..SRF197708-198408

main61303-92615iBU20,JU20,RU20..LHD..(HRF,SRF)197708-198408

main61303-95401iBU32,HU30,RU20,30..TW1197708-198408

61308PILLAR SUB-ASSY, CENTER BODY, INNER LH

main61304-92605iBU20,RU20..RHD..SRF197708-198408

main61304-92615iBU20,JU20,RU20..LHD..(HRF,SRF)197708-198408

main61304-95401iBU32,HU30,RU20,30..TW1197708-198408

61351COVER, CENTER BODY, INNER RH

main61351-95400iRU20,30..TW1..GEN197708-198408

W/*NLR

main61351-95401iBU32,HU30,RU20,30..TW1..ARL197708-198408

W/*ELR

main61351-95401iRU30..TS..EUR198201-198408

main61351-95A00iBU20,JU20,RU20..HRF,SRF197708-198408

61351AGASKET(FOR CENTER BODY INNER COVER)

main61352-95400iRU20,30..TW1..GEN197708-198408

W/*NLR

sub61352-95010

61352COVER, CENTER BODY, INNER, LH

main61351-95400iRU20,30..TW1..GEN197708-198408

W/*NLR

main61351-95401iBU32,HU30,RU20,30..TW1197708-198408

W/*ELR

main61351-95401iRU30..TS..EUR198201-198408

main61351-95A00iBU20,JU20,RU20..HRF,SRF197708-198408

61531PANEL, BACK CORNER, INNER RH

main61503-95403iBU32,HU30,RU20,30..T1,T3;BU2#,30,31,36,40,HU40,50,JU20,RU25,WU40,50..DMP,TR197708-198411

main61503-95406iBU23,25,31,32,40,RU25,WU40,50..GEN;BU20,30,36,HU40,50,RU20,30..(T1,T3)..(ARL,GEN,GHI)198302-198411

W/STEREO

61531APANEL, BACK CORNER, OUTER RH

main61501-95405iHU50;RU20,30..(T1,T3)..GEN;BU2#,3#,40,HU30,40,RU25,WU40,50..(DMP,TR)..(GEN,GHI)197708-198411

main61501-95406iBU32,HU30,RU20,30..T3..(ARL,EUR);BU20,30,36,JU20,RU25..(DMP,TR)..(ARL,EUR)197708-198408

main61501-95406iRU20,30..RHD..T3..WT..GEN..IV3197909-198008

NEW ZEALAND SPEC

main61501-95406iRU20,30..T3..5F..GEN198210-198408

SAA

main61501-95406iBU32,RU25..GEN198302-198408

OMAN SPEC

61532PANEL, BACK CORNER, INNER LH

main61504-95403iBU32,HU30,RU20,30..T1,T3;BU2#,30,31,36,40,HU40,50,JU20,RU25,WU40,50..DMP,TR197708-198411

main61504-95406iBU23,25,31,32,40,RU25,WU40,50..GEN;BU20,30,36,HU40,50,RU20,30..(T1,T3)..(ARL,GEN,GHI)198302-198411

W/STEREO

61532APANEL, BACK CORNER, OUTER LH

main61502-95405iHU50;RU20,30..(T1,T3)..GEN;BU2#,3#,40,HU30,40,RU25,WU40,50..(DMP,TR)..(GEN,GHI)197708-198411

main61502-95406iRU20,30..T3..5F..GEN198210-198408

SAA

main61502-95406iRU20,30..RHD..T3..WT..GEN..IV3197909-198008

NEW ZEALAND SPEC

main61502-95406iBU32,HU30,RU20,30..T3..(ARL,EUR);BU20,30,36,JU20,RU25..(DMP,TR)..(ARL,EUR)197708-198408

61538ACOVER, BACK CORNER HOLE, RH

main61351-95400iRU20..TS..5F..ST..GEN198308-198408

SAA,OMAN SPEC,W/*NLR

main61539-95400iHU50;RU20,30..(T1,T3)..(EUR,GEN);BU2#,3#,40,HU30,40,JU20,RU25,WU40,50..(DMP,TR)..(EUR,GEN,GHI)..(CBU,IV3)197708-198411

W/*NLR

main61539-95401iBU20,JU20,RU20..V197708-198411

W/*ELR

61539ACOVER, BACK CORNER HOLE, LH

main61309-95401iRU20..TS..5F..ST..GEN198308-198408

SAA,OMAN SPEC,W/*NLR

main61538-95400iBU30,RU20..RHD..T3..(GEN,GHI)..IV3197708-198411

W/*ELR

main61539-95400iHU50;RU20,30..(T1,T3)..(EUR,GEN);BU2#,3#,40,HU30,40,JU20,RU25,WU40,50..(DMP,TR)..(EUR,GEN,GHI)..(CBU,IV3)197708-198411

W/*NLR

main61539-95404iBU32,RU25,30..5F..GEN198308-198408

SAA,OMAN SPEC,W/*NLR

9095001056

main90950-01056

9161160616

main91611-60616

9162140616

main91621-40616

9354015014

main93540-15014

36 parts on this diagram · 3 diagrams in section
