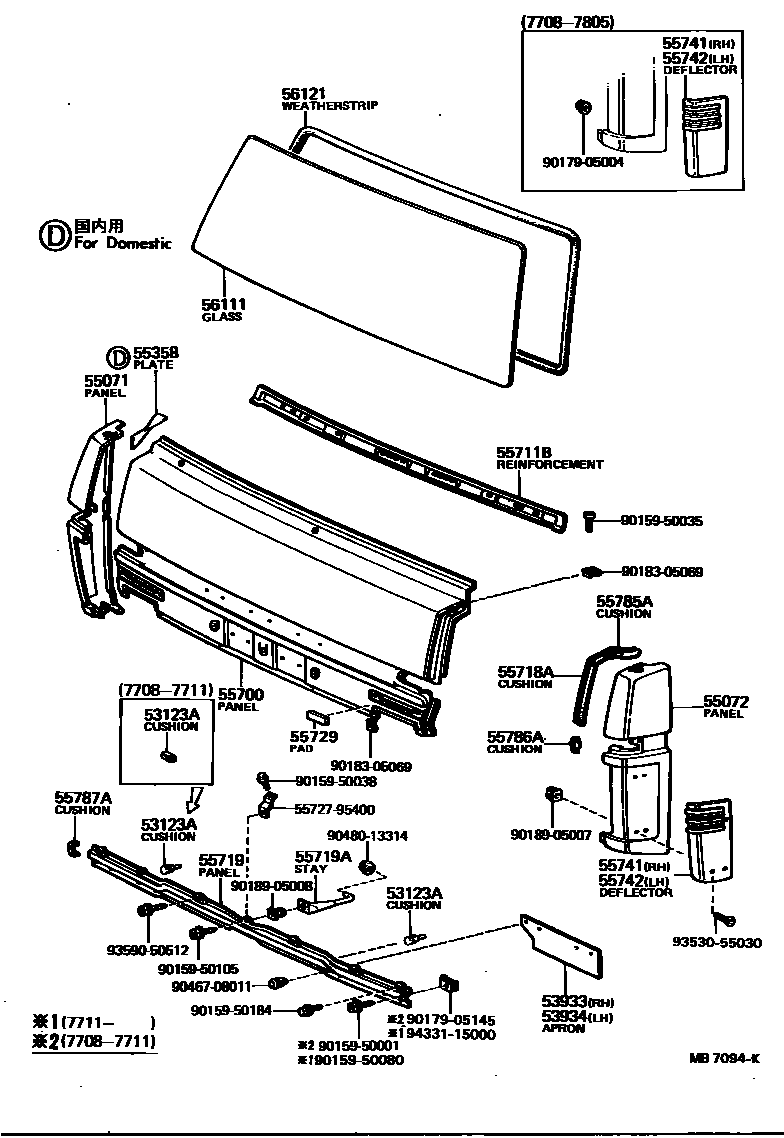

FRONT PANEL & WINDSHIELD GLASS

53123ACUSHION, RADIATOR GRILLE

main53123-95400iBU20,30,HU30,JU20,RU20,30197708-197711

main90541-04005iBU20,25,30,HU30,JU20,RU2#,30197711-198411

53933APRON, GRILLE SIDE, LOWER RH

main53933-95400iBU20,30,HU30,JU20,RU20,30197708-197711

main53933-95401iBU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50197711-198411

53934APRON, GRILLE SIDE, LOWER LH

main53933-95400iBU20,30,HU30,JU20,RU20,30197708-197711

main53933-95401iBU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50197711-198411

55071PANEL SUB-ASSY, FRONT SIDE, RH

main55071-95405iBU20,30,HU30,JU20,RU20,30197708-197711

main55071-95406iBU2#,30,HU30,JU20,RU2#,30197711-198411

sub55071-95407

main55071-95407iBU20,30,RU20,30..EUR198008-198408

55072PANEL SUB-ASSY, FRONT SIDE, LH

main55072-95402iBU20,30,HU30,JU20,RU20,30197708-197711

main55072-95403iBU2#,30,HU30,JU20,RU2#,30197711-198411

sub55072-95404

main55072-95404iBU20,30,RU20,30..EUR198008-198408

55358PLATE, WATER PROOF

55700PANEL ASSY, FRONT

main55700-95455iBU20,30,HU30,RU2#,30..RHD197708-198008

main55700-95456iBU2#,30,HU30,JU20,RU2#,30..LHD197708-198008

main55700-95467iBU20,30,32,HU30,RU20,30..RHD198008-198411

main55700-95468iBU2#,30,31,32,HU30,RU2#,30..LHD..(GEN,GHI)198008-198408

main55700-95469iBU36,40,HU40,50,WU40..RHD198204-198408

main55700-95470iBU20,30,RU20,30..EUR198008-198408

main55700-95472iBU36,40,WU40,50..LHD198302-198408

55711BREINFORCEMENT SUB-ASSY, FRONT PANEL

main55701-95404iBU20,30,32,HU30,RU2#,30..RHD197708-198411

main55701-95405iBU2#,30,31,32,HU30,JU20,RU2#,30..LHD197708-198408

main55701-95406iBU36,40,HU40,50,WU40..RHD198204-198408

main55701-95407iBU36,40,WU40,50..LHD198302-198408

55718ACUSHION, FRONT SIDE PANEL

main55719-95400iBU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50197708-198411

L=295

55719PANEL, FRONT LOWER

main55073-95400iBU2#,30,HU30,JU20,RU2#,30197711-198008

sub55073-95401

main55073-95401iBU2#,30,31,32,HU30,RU2#,30198008-198411

main55073-95402iBU36,40,HU40,50,WU40,50198204-198408

main55718-95403iBU20,30,HU30,JU20,RU20,30197708-197711

sub55718-95404

55719ASTAY, FRONT LOWER PANEL

main55743-95400iBU2#,30,31,32,HU30,JU20,RU2#,30197708-198411

main55743-95401iBU40,HU40,50198204-198408

main55743-95402iBU36,40,WU40,50..LHD198302-198408

55729PAD, FRONT SIDE PANEL

main55729-87001iBU2#,3#,40,HU30,40,50,RU2#,30,WU40,50198101-198411

55741DEFLECTOR, FRONT SIDE SPLASH, RH

main55741-95400iBU2#,30,HU30,JU20,RU2#,30197708-197805

sub55741-95401

sub93239-55030

sub94115-40500

sub94613-10500

main55741-95401iBU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50197805-198411

55742DEFLECTOR, FRONT SIDE SPLASH, LH

main55742-95400iBU2#,30,HU30,JU20,RU2#,30197708-197805

sub55742-95401

sub93239-55030

sub94115-40500

sub94613-10500

main55742-95401iBU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50197805-198411

55785ACUSHION, FRONT SIDE PANEL, NO.2

main55783-95400iBU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50197708-198411

RH

main55784-95400iBU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50197708-198411

LH

55786ACUSHION, FRONT SIDE PANEL, NO.3

main55786-95400iBU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50197708-198411

55787ACUSHION, FRONT SIDE PANEL, NO.4

main55787-95400iBU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50197708-198411

RH

main55788-95400iBU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50197708-198411

LH

56111GLASS, WINDSHIELD

main56111-95408iBU2#,30,31,32,HU30,JU20,RU2#,30..EUR,GEN,GHI197708-198411

*ZT,T=5.0

sub56111-95409

main56111-95409iBU2#,30,31,32,HU30,JU20,RU2#,30197708-198411

*LAM,T=5.7

main56111-95411iBU36,40,HU40,50,WU40,50..GEN198204-198408

*ZT,T=5.0

sub56111-95413

main56111-95413iBU36,40,HU40,50,WU40,50198204-198408

*LAM,T=5.7

sub56111-95414

main56111-95414iBU36,40,HU40,50,WU40..GEN198302-198408

*LAM,T=5.7,W/TOP SHADE

56121WEATHERSTRIP, WINDSHIELD

main56121-95405iBU2#,30,31,32,HU30,JU20,RU2#,30197708-198411

main56121-95408iBU36,40,HU40,50,WU40,50198204-198408

5572795400SEAL, COWL TOP REINFORCEMENT

main55727-95400

9015950001

main90159-50001

9015950035

main90159-50035

9015950038

main90159-50038

9015950080

main90159-50080

9015950105

main90159-50105

9015950184

main90159-50184

9017905004

main90179-05004

9017905145

main90179-05145

9018305069

main90183-05069

9018905007

main90189-05007

9018905008

main90189-05008

9046708011

main90467-08011

9048013314

main90480-13314

9353055030

main93530-55030

9359050512

main93590-50512

9433115000

main94331-15000

36 parts on this diagram · 1 diagram in section
