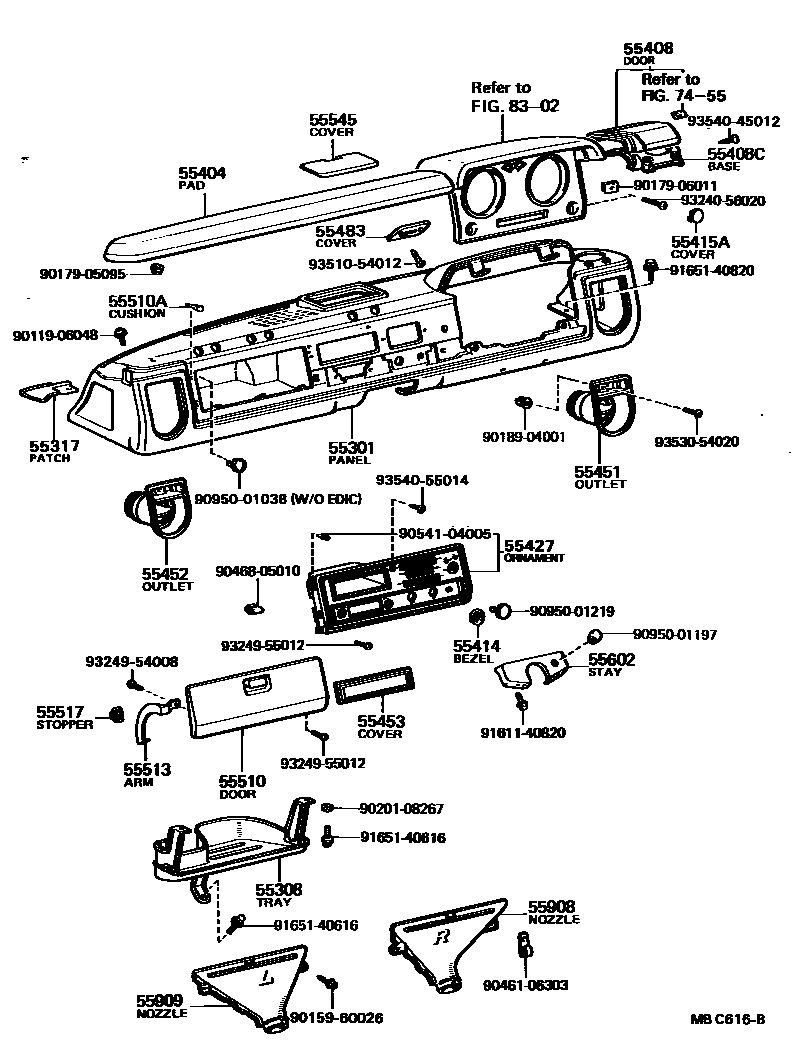

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1 0003 1 0004 1

55301PANEL SUB-ASSY, INSTRUMENT

main55301-95444iBU2#,30,HU30,JU20,RU2#,30..LHD197708-198008

main55301-95446iBU20,30,HU30,RU2#,30..RHD197708-198008

main55301-95449iBU20,30,32,HU30,RU20,30..RHD198008-198204

main55301-95450iBU2#,3#,HU30,RU2#,30..LHD198008-198204

main55301-95451iBU36,40,HU40,50,WU40..RHD198204-198408

main55301-95452iBU20,30,32,RU20,30..RHD198204-198411

main55301-95453iBU2#,30,31,32,RU2#,30..LHD198204-198408

main55301-95456iBU20,32..ARL198204-198408

W/RHEOSTAT

main55301-95457iBU36,HU40,50..ARL198204-198408

W/RHEOSTAT

main55301-95458iBU36,40,WU40,50..LHD198302-198408

55308TRAY SUB-ASSY, INSTRUMENT PANEL UNDER

main74650-95412iBU20,30,HU30,RU2#,30..RHD197708-198008

W/HEATER

main74650-95413iBU20,30,HU30,JU20,RU20,30..LHD197708-197802

W/HEATER

main74650-95414iBU20,30,HU30,RU2#,30..RHD..GEN197708-198008

W/O HEATER

main74650-95415iBU2#,30,HU30,JU20,RU2#,30..LHD197708-198008

main74650-95417iBU20,30,RU20,30..RHD..(GEN,GHI)198204-198411

W/O HEATER

main74650-95418iBU20,30,32,HU30,RU20,30..RHD198008-198204

W/HEATER

main74650-95420iBU20,30,RU20,30..RHD..(GEN,GHI)198008-198204

W/O HEATER

main74650-95421iBU2#,3#,HU30,RU2#,30..LHD198008-198204

main74650-95423iBU36,40,HU40,50,WU40..RHD198204-198408

main74650-95425iBU20,30,32,RU20,30..RHD198204-198411

W/HEATER

main74650-95426iBU2#,30,31,32,RU2#,30..LHD198204-198408

main74650-95427iBU36,40,WU40,50..LHD198302-198408

55317PATCH, INSTRUMENT PANEL

main55317-95400iBU2#,30,HU30,JU20,RU2#,30197708-198008

RH,W/O SIDE DEFROSTER

main55317-95401iBU2#,3#,HU30,RU2#,30198008-198204

RH,W/O SIDE DEFROSTER

main55317-95402iBU20,30..EUR198204-198411

RH,W/O SIDE DEFROSTER

main55318-95400iBU2#,30,HU30,JU20,RU2#,30197708-198008

LH,W/O SIDE DEFROSTER

main55318-95402iBU2#,3#,HU30,RU2#,30198008-198204

LH,W/O SIDE DEFROSTER

main55318-95403iBU20,30..EUR198204-198411

LH,W/O SIDE DEFROSTER

55404SAFETY PAD SUB-ASSY, INSTRUMENT PANEL, UPPER

main55401-95403iBU20,30,HU30,RU2#,30..RHD197708-198008

sub55401-95423

main55401-95404iBU2#,30,HU30,JU20,RU2#,30..LHD197708-198008

sub55401-95424

main55401-95406iBU20,30,32,HU30,RU20,30..RHD198008-198204

sub55401-95420

main55401-95407iBU2#,3#,HU30,RU2#,30..LHD198008-198204

sub55401-95421

main55401-95408iBU36,40,HU40,50,WU40..RHD198204-198405

sub55401-95418

main55401-95409iBU20,30,32,RU20,30..RHD198204-198405

sub55401-95416

main55401-95410iBU2#,30,31,32,RU2#,30..LHD198204-198405

sub55401-95417

main55401-95411iBU36,40,WU40,50..LHD198302-198405

sub55401-95419

main55401-95416iBU20,30,32,RU20,30..RHD198405-198411

main55401-95417iBU2#,30,31,32,RU2#,30..LHD198405-198408

main55401-95418iBU36,40,HU40,50,WU40..RHD198405-198408

main55401-95419iBU36,40,WU40,50..LHD198405-198408

55408DOOR SUB-ASSY, RESERVOIR TANK SERVICE HOLE

main55402-95405iBU20,30,HU30,RU2#,30..RHD197708-198008

main55402-95406iBU2#,30,HU30,JU20,RU2#,30..LHD197708-198008

main55402-95413iBU20,30,32,HU30,RU20,30..RHD198008-198204

main55402-95414iBU2#,3#,HU30,RU2#,30..LHD198008-198204

main55402-95415iBU20,30,32,36,40,HU40,50,RU20,30,WU40..RHD198204-198411

main55402-95417iBU2#,3#,40,RU2#,30,WU40,50..LHD198204-198408

55408CBASE, RESERVOIR TANK SERVICE HOLE DOOR

main55432-95405iBU20,30,HU30,RU2#,30..RHD197708-198008

main55432-95406iBU2#,30,HU30,JU20,RU2#,30..LHD197708-198008

main55432-95408iBU20,30,32,HU30,RU20,30..RHD198008-198204

main55432-95409iBU2#,3#,HU30,RU2#,30..LHD198008-198204

main55432-95410iBU36,40,HU40,50,WU40..RHD198204-198408

main55432-95411iBU20,30,32,RU20,30..RHD198204-198411

main55432-95412iBU2#,30,31,32,RU2#,30..LHD198204-198408

main55432-95416iBU36,40,WU40,50..LHD198302-198408

55414BEZEL, CIGAR LIGHTER HOLE

main55477-95400iBU2#,30,31,32,40,HU30,40,50,JU20,RU2#,30,WU40,50197708-198411

55415ACOVER, METER HOOD

main55415-95403iBU2#,3#,HU30,JU20,RU2#,30197708-198204

sub55415-95404

main55415-95404iBU2#,30,31,32,HU40,50,RU2#,30,WU40,50198204-198411

55427ORNAMENT, INSTRUMENT PANEL, CENTER

main55411-95404iBU20,30,HU30..RHD197708-198008

sub55411-95416

main55411-95405iRU2#,30..RHD197708-198008

sub55411-95417

main55411-95410iBU2#,30,HU30,JU20..LHD197708-198008

sub55411-95422

main55411-95411iRU2#,30..LHD197708-198008

sub55411-95423

main55411-95416iBU20,30,32..RHD198008-198204

W/HEATER

sub55411-95430

main55411-95417iRU20,30..RHD198008-198204

W/HEATER

sub55411-95427

main55411-95418iBU2#,30,32,HU30..LHD..(GEN,GHI)198008-198204

sub55411-95428

main55411-95419iRU2#,30..LHD..GEN198008-198204

sub55411-95429

main55411-95420iBU20,30..RHD..(GEN,GHI)198008-198204

sub55411-95430

main55411-95421iRU20,30..RHD..GEN198008-198204

sub55411-95431

main55411-95422iBU2#,3#,HU30..LHD198008-198204

W/HEATER

sub55411-95432

main55411-95423iRU2#,30..LHD198008-198204

W/HEATER

sub55411-95433

main55411-95424iBU36,40,HU40,50,WU40..RHD..GEN198204-198408

W/HEATER

sub55411-95430

main55411-95425iBU36,40,HU40,50,WU40..RHD..GEN198204-198408

sub55411-95430

main55411-95426iBU20,30,32..RHD198204-198411

W/HEATER

sub55411-95430

main55411-95427iRU20,30..RHD198204-198408

W/RHEOSTAT

sub55411-95431

main55411-95427iRU20,30..RHD198204-198408

W/HEATER

sub55411-95431

main55411-95428iBU20,25,30,32..LHD198204-198408

main55411-95429iRU2#,30..LHD..GEN198204-198408

main55411-95430iBU20,30..RHD..(GEN,GHI)198204-198411

main55411-95431iRU20,30..RHD..GEN198204-198408

main55411-95432iBU2#,30,31,32..LHD198204-198408

W/HEATER

sub55411-95428

main55411-95433iRU2#,30..LHD198204-198408

W/HEATER

sub55411-95429

main55411-95434iBU36,HU40,50..ARL198204-198408

W/RHEOSTAT

sub55411-95431

main55411-95435iBU36,40,WU40..LHD198302-198408

sub55411-95428

main55411-95436iBU36,40,WU40,50..LHD198302-198408

W/HEATER

sub55411-95428

main55411-95437iBU20,30..RHD..(CBU,IV3)198302-198411

W/HEATER & STEREO

sub55411-95442

main55411-95438iBU36,40,WU40,50..LHD198302-198408

W/HEATER & STEREO

sub55411-95446

main55411-95439iRU20,30..RHD..GEN198302-198411

W/HEATER & STEREO

sub55411-95443

main55411-95439iRU20,30..T3..ARL198302-198408

W/STEREO

sub55411-95443

main55411-95440iBU20,25,30,32..LHD..GEN198302-198408

W/STEREO

main55411-95441iRU20..BUS;RU20,30..LHD..(T3,VSG)..GEN198302-198408

W/STEREO

main55411-95442iBU20,30..RHD..(GEN,GHI)..(CBU,IV3)198302-198411

W/STEREO

main55411-95443iRU20,30..RHD..GEN198302-198411

W/STEREO

main55411-95444iRU2#,30..LHD..GEN198302-198408

W/HEATER & STEREO

sub55411-95441

main55411-95445iBU36,40,HU40,50,WU40..RHD..GEN198302-198408

W/HEATER & STEREO

sub55411-95442

main55411-95446iBU36,40,HU40,50,WU40..RHD..GEN198302-198408

W/STEREO

sub55411-95442

main55411-95447iBU36,HU40,50..ARL198302-198408

W/STEREO

sub55411-95443

main55411-95448iBU36,40,WU40..LHD198302-198408

W/STEREO

sub55411-95446

main55411-95449iBU2#,30,31,32..LHD..(GEN,GHI)198302-198408

W/HEATER & STEREO

sub55411-95446

55451OUTLET, AIR OUTER, RH

main55409-95401iBU2#,3#,HU30,JU20,RU2#,30197708-198204

main55409-95403iBU2#,3#,40,HU40,50,RU2#,30,WU40,50198204-198411

55452OUTLET, AIR OUTER, LH

main55409-95401iBU20,30,32,HU30,RU2#,30..RHD197708-198204

main55409-95402iBU2#,3#,HU30,JU20,RU2#,30..LHD197708-198204

main55409-95403iBU20,30,32,36,40,HU40,50,RU20,30,WU40..RHD198204-198411

main55409-95404iBU2#,3#,40,RU2#,30,WU40,50..LHD198204-198408

55453COVER, RADIO TUNER OPENING

main55463-20041iRU30..EUR197708-198411

55483COVER, HEATER INGICATOR LAMP

main55416-95400iBU2#,30,HU30,RU2#,30..GEN197708-198008

main55416-95401iBU20,30..EUR198008-198204

main55416-95402iBU20,30..EUR198204-198411

55510DOOR ASSY, GLOVE COMPARTMENT

main55501-95406iBU20,30,HU30,RU20,30..RHD197708-197803

sub55501-95408

main55501-95407iBU20,30,HU30,JU20,RU20,30..LHD197708-197803

sub55501-95406

sub55514-95401

main55501-95408iBU2#,30,HU30,JU20,RU2#,30197803-198008

main55501-95409iBU2#,3#,HU30,RU2#,30198008-198204

main55501-95411iBU2#,3#,40,HU40,50,RU2#,30,WU40,50198204-198411

55510ACUSHION(FOR GLOVE COMPARTMENT DOOR)

main90541-04007iBU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50197708-198411

55513ARM, GLOVE COMPARTMENT DOOR CHECK

main55513-95405iBU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50197708-198411

RH

main55514-95401iBU20,30,HU30,JU20,RU20,30..LHD197708-198411

LH

55517STOPPER, GLOVE COMPARTMENT DOOR ARM

main55517-95A00iBU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50197708-198411

55545COVER, FUSE BOX OPENING

main55412-95403iBU2#,30,HU30,JU20,RU2#,30197708-198008

main55412-95406iBU2#,3#,HU30,RU2#,30198008-198204

main55412-95408iBU2#,30,31,32,RU2#,30198204-198411

main55540-95403iBU36,40,HU40,50,WU40,50198204-198408

55602STAY SUB-ASSY, STEERING COLUMN, UPPER

main55602-95411iRU20,30..RHD197708-198008

sub55602-95428

main55602-95412iRU2#,30..LHD197708-198008

sub55602-95422

main55602-95413iBU20,30,HU30..RHD197708-198008

sub55602-95428

main55602-95414iBU20,30,HU30,JU20..LHD197708-198008

sub55602-95422

main55602-95415iRU25..RHD197803-197908

sub55602-95428

main55602-95422iBU25197803-197908

main55602-95423iRU20,30..RHD198008-198204

sub55602-95428

main55602-95424iBU20,30,32,HU30..RHD198008-198204

sub55602-95428

main55602-95429iRU2#,30..LHD198008-198204

sub55602-95422

main55602-95430iBU2#,3#,HU30..LHD198008-198204

sub55602-95422

main55602-95435iRU20,30,WU40..RHD198204-198408

sub55602-95428

main55602-95437iRU2#,30,WU40,50..LHD198204-198408

sub55602-95422

main55602-95438iBU2#,3#,40..LHD198204-198408

sub55602-95422

main55602-95442iBU20,30,32,36,40,HU40,50..RHD198204-198411

sub55602-95428

main55602-95443iWU40..LHD198304-198408

CHINA SPEC

55908NOZZLE SUB-ASSY, DEFROSTER, RH

main55950-95407iBU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50197708-198411

55909NOZZLE SUB-ASSY, DEFROSTER, LH

main55960-95408iBU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50197708-198411

7455

8302

9011906048

main90119-06048

9015960026

main90159-60026

9017905095

main90179-05095

9017906011

main90179-06011

9018904001

main90189-04001

9020108267

main90201-08267

9046106303

main90461-06303

9046805010

main90468-05010

9054104005

main90541-04005

9095001038

main90950-01038

9095001197

main90950-01197

9095001219

main90950-01219

9161140820

main91611-40820

9165140616

main91651-40616

9165140820

main91651-40820

9324056020

main93240-56020

9324954008

main93249-54008

9324955012

main93249-55012

9351054012

main93510-54012

9353054020

main93530-54020

9354045012

main93540-45012

9354055014

main93540-55014

45 parts on this diagram · 4 diagrams in section
