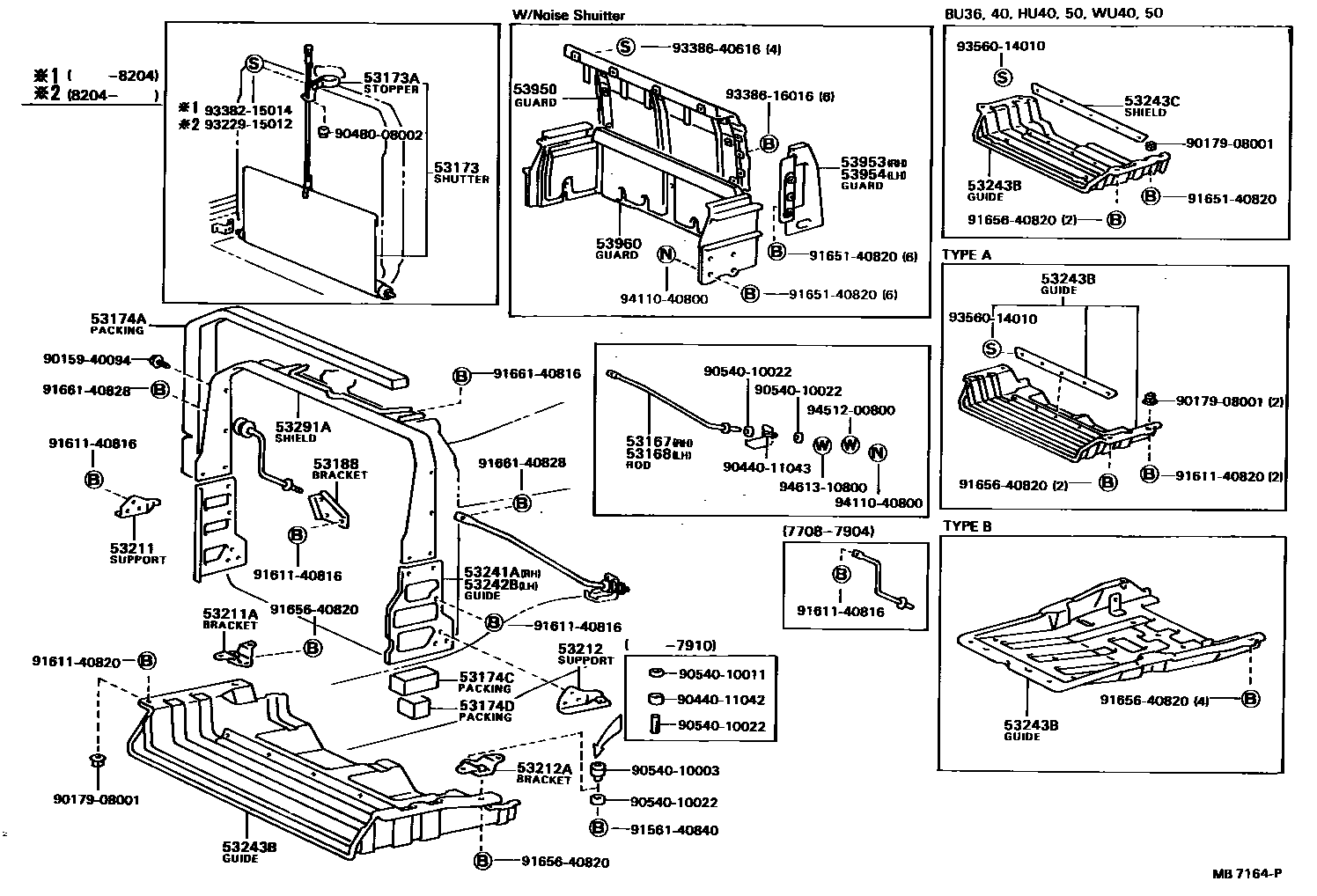

RADIATOR SUPPORT & WIND GUIDE

53167ROD, RADIATOR BRACE, RH

main53016-36020iBU2#,30,31,32,HU30,RU2#197904-198411

main53016-36030iBU36,40,HU40,50,WU40,50198204-198408

main53167-36020iBU2#,30,HU30,JU20,RU2#,30197708-197904

53168ROD, RADIATOR BRACE, LH

main53018-36020iBU36,40,HU40,50,WU40,50198204-198408

main53169-36020iBU2#,30,31,32,HU30,RU2#197708-198411

53173SHUTTER SUB-ASSY, RADIATOR WIND

main87540-95407iBU20,30,JU20,RU20..EUR197708-198008

COLD SPEC

main87540-95407iBU20,30..EUR198008-198204

main87540-95408iWU40,50198302-198408

main87540-95409iBU20,30..EUR198204-198408

53173ASTOPPER, RADIATOR SHUTTER WIRE

main87542-95404iBU20,30,JU20,RU20..EUR197708-198008

COLD SPEC

main87542-95404iBU20,30..EUR198008-198204

53174APACKING, NO.1(FOR RADIATOR WIND SHUTTER)

main53724-95402iBU2#,3#,HU30,RU2#,30..ARL,GEN,GHI198008-198411

53174CPACKING, NO.3(FOR RADIATOR WIND SHUTTER)

main53726-95400iBU2#,3#,HU30,RU2#,30..ARL,GEN,GHI198008-198411

53174DPACKING, NO.4(FOR RADIATOR WIND SHUTTER)

main53727-95400iBU20,25,30,32,RU2#,30..ARL,GEN,GHI198008-198411

53188BRACKET, RADIATOR BRACE ROD, RH

main53221-36010iBU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50197708-198411

main53221-36020iHU50198204-198408

PS

53211SUPPORT, RADIATOR, RH

main53211-36020iBU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50197708-198411

53211ABRACKET, RADIATOR SUPPORT, RH

main51406-36050iHU40,50198204-198408

main51411-36030iBU2#,3#,40,HU30,40,50,JU20,RU2#,30197708-198411

main51411-36040iBU36,40,WU40,50198204-198408

53212SUPPORT, RADIATOR, LH

main53212-36020iBU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50197708-198411

53212ABRACKET, RADIATOR SUPPORT, LH

main51407-36010iHU40,50198204-198408

main51412-36040iBU2#,30,31,32,HU30,JU20,RU2#,30197708-198411

main51412-36050iBU36,40,WU40,50198204-198408

53241AGUIDE, SIDE WIND, RH

main16593-56010iBU36,40,WU40,50198204-198408

main53241-36020iBU20,30,HU30,JU20,RU20,30197708-197801

main53241-36021iBU2#,30,31,32,HU30,JU20,RU2#,30197801-198411

53242BGUIDE, SIDE WIND, LH

main16595-56010iBU36,40,WU40,50198204-198408

main53242-36020iBU20,30,HU30,JU20,RU20,30197708-197801

main53242-36021iBU2#,30,31,32,HU30,JU20,RU2#,30197801-198411

53243BGUIDE, LOWER WIND

main53204-36010iBU20,30,JU20,RU20..EUR197708-198408

main53240-36020iBU20,25,30,RU2#,30..ARL,GEN,GHI197708-198411

TYPE A

main53240-36030iBU31,32,HU30197708-198408

main53240-36050iWU40,50198302-198408

COLD SPEC

main53240-36070iBU20..RHD..TS..GEN198204-198411

TYPE B

main53243-36030iBU23,36,40,HU40,50,WU40,50198204-198408

sub53240-36050

53243CSHIELD, RADIATOR TO LOWER WIND GUIDE

main53292-36030iBU36,40,HU40,50,WU40,50198204-198408

53291ASHIELD, RADIATOR TO CAB FLOOR PANEL

main16594-56010iBU36,40,WU40,50198204-198408

main16594-58020iBU2#,3#198204-198411

main53291-36010iBU2#,30,HU30,JU20,RU2#,30197708-198104

main53291-36020iRU2#,30198104-198207

53950GUARD ASSY, NOISE SHUTTER, UPPER

main53950-95400iBU20..EUR198204-198408

53953GUARD, NOISE SHUTTER SIDE, UPPER RH

main53953-95400iBU20..EUR198204-198408

main53953-95401iBU20..EUR198204-198408

W/TILT CAB

53954GUARD, NOISE SHUTTER SIDE, UPPER LH

main53954-95400iBU20..EUR198204-198408

main53954-95401iBU20,RU20,30..T3..EUR198204-198408

W/TILT CAB

53960GUARD ASSY, NOISE SHUTTER, LOWER

main53960-95400iBU20,RU20,30..T3..EUR198204-198408

9015940094

main90159-40094

9017908001

main90179-08001

9044011042

main90440-11042

9044011043

main90440-11043

9048008002

main90480-08002

9054010003

main90540-10003

9054010011

main90540-10011

9054010022

main90540-10022

9156140840

main91561-40840

9161140816

main91611-40816

9161140820

main91611-40820

9165140820

main91651-40820

9165640820

main91656-40820

9166140816

main91661-40816

9166140828

main91661-40828

9322915012

main93229-15012

9338215014

main93382-15014

9338616016

main93386-16016

9338640616

main93386-40616

9356014010

main93560-14010

9411040800

main94110-40800

9451200800

main94512-00800

9461310800

main94613-10800

44 parts on this diagram · 1 diagram in section
