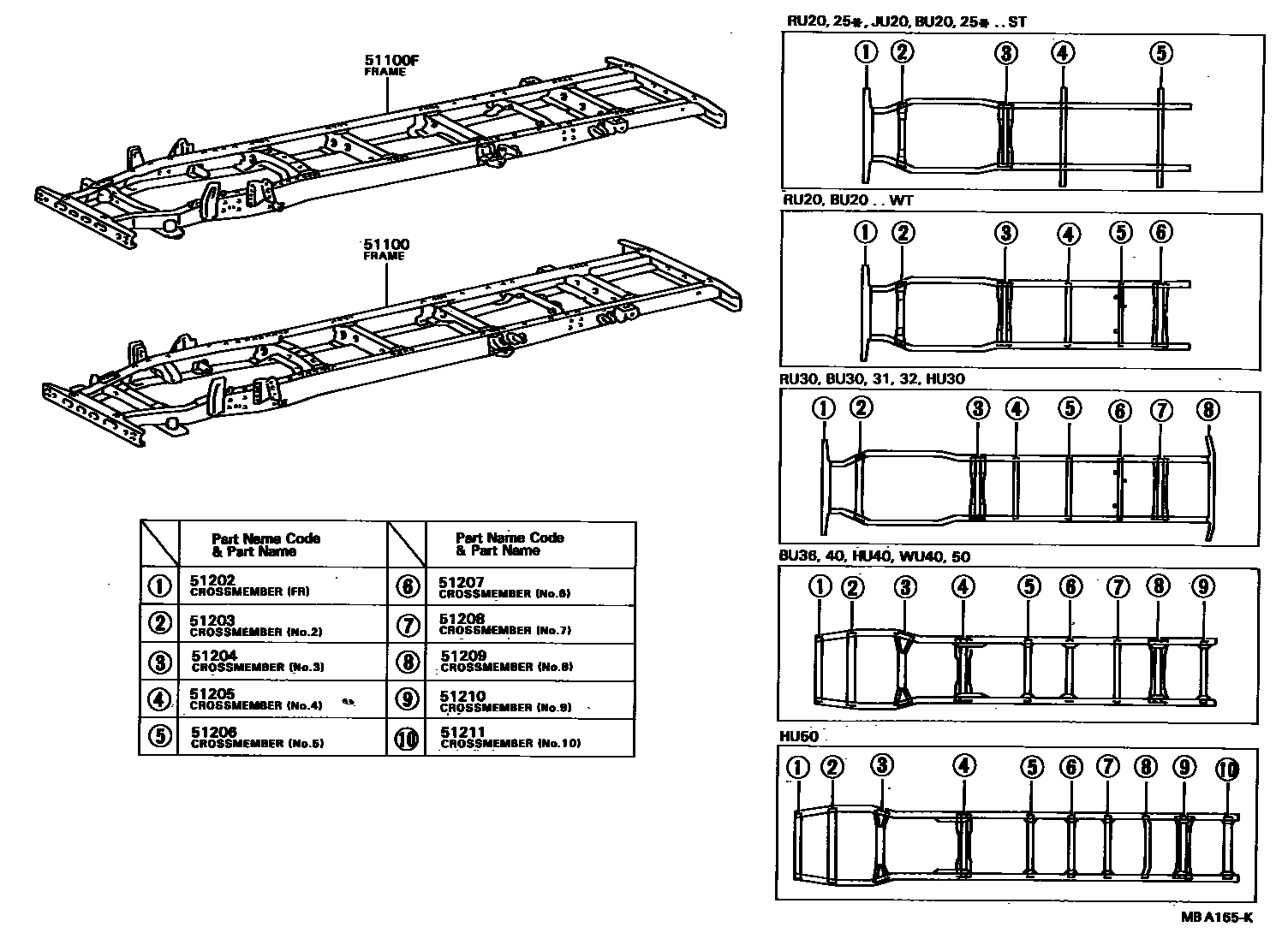

FRAME

0001 1 0002 1

51100FRAME ASSY

main51100-36630iBU20,JU20,RU20..ST197708-197904

sub51003-36390

sub51401-36060

sub51402-36080

sub51721-36060

sub90201-10489

sub90201-12002

sub91111-71030

sub91161-71230

sub94110-51000

sub94115-51200

main51100-36790iRU20..WT197708-197904

sub51003-36491

sub51401-36060

sub51402-36080

sub51721-36060

sub90201-10489

sub90201-12002

sub91111-71030

sub91161-71230

sub94110-41000

sub94110-51000

sub94115-51200

main51100-36830iBU20..WT197708-197904

sub51003-36521

sub51401-36060

sub51402-36080

sub51721-36060

sub90201-10489

sub90201-12002

sub91111-71030

sub91161-71230

sub94110-41000

sub94110-51000

sub94115-51200

main51100-3B040iBU30,RU30197708-197904

sub51003-36611

sub51401-36060

sub51402-36080

sub51721-36060

sub90201-10489

sub90201-12002

sub91111-71030

sub91161-71230

sub94110-41000

sub94110-51000

sub94115-51200

main51100-3B080iHU30197708-197904

sub51003-36631

sub51401-36070

sub51402-36070

sub51721-36060

sub90201-10489

sub90201-12002

sub91111-71025

sub91161-71230

sub94110-41000

sub94110-51000

sub94115-51200

main51100-3B250iRU20..RHD..T1197806-197904

W/HEAVY I BEAM

sub51003-36740

sub51401-36041

sub51402-36041

sub51721-36060

sub90201-10489

sub90201-12002

sub91111-71030

sub91161-71230

sub94110-51000

sub94115-51200

main51100-3B270iRU20..LHD..T1197806-197904

W/HEAVY I BEAM

sub51003-36760

sub51401-36041

sub51402-36041

sub51722-36030

sub90201-10489

sub90201-12002

sub91111-71030

sub91161-71230

sub94110-51000

sub94115-51200

main51100-3B280iRU20..RHD..T3..ST197806-197904

W/HEAVY I BEAM

sub51003-36750

sub51401-36060

sub51402-36080

sub51721-36060

sub90201-10489

sub90201-12002

sub91111-71030

sub91161-71230

sub94110-51000

sub94115-51200

main51100-3B300iRU20..LHD..T3..ST197806-197904

W/HEAVY I BEAM

sub51003-36770

sub51401-36060

sub51402-36080

sub51721-36060

sub90201-10489

sub90201-12002

sub91111-71030

sub91161-71230

sub94110-51000

sub94115-51200

main51100-3B320iRU20..RHD..SRF197806-197904

W/HEAVY I BEAM

sub51003-36780

sub51401-36041

sub51402-36041

sub51721-36060

sub90201-10489

sub90201-12002

sub91111-71030

sub91161-71230

sub94110-51000

sub94115-51200

main51100-3B340iRU20..LHD..V197806-197904

W/HEAVY I BEAM

sub51003-36790

sub51401-36041

sub51402-36041

sub51722-36030

sub90201-10489

sub90201-12002

sub91111-71030

sub91161-71230

sub94110-51000

sub94115-51200

main51100-3B350iRU20..RHD..TW1197806-197904

W/HEAVY I BEAM

sub51003-36740

sub51401-36041

sub51402-36041

sub51721-36060

sub90201-10489

sub90201-12002

sub91111-71030

sub91161-71230

sub94110-51000

sub94115-51200

main51100-3B360iRU20..LHD..TW1197806-197904

W/HEAVY I BEAM

sub51003-36760

sub51401-36041

sub51402-36041

sub51722-36030

sub90201-10489

sub90201-12002

sub91111-71030

sub91161-71230

sub94110-51000

sub94115-51200

main51100-3B370iBU30..RHD197811-197904

sub51003-36821

sub51401-36060

sub51402-36080

sub51721-36060

sub90201-10489

sub90201-12002

sub91111-71030

sub91161-71230

sub94110-41000

sub94110-51000

sub94115-51200

main51100-3B380iRU30..RHD..TB197811-197904

sub51003-36821

sub51401-36060

sub51402-36080

sub51721-36060

sub90201-10489

sub90201-12002

sub91111-71030

sub91161-71230

sub94110-41000

sub94110-51000

sub94115-51200

51100FFRAME SUB-ASSY

main51001-3B010iBU20,RU20..RHD..T3..ST197904-198104

sub51003-36411

sub17572-44070

main51001-3B011iBU20..RHD..T3..ST198104-198302

sub51003-36411

sub17572-44070

main51001-3B020iRU20..LHD..T3..ST197904-198104

sub51003-36420

sub17572-44070

main51001-3B021iBU20,RU20..LHD..T3..ST198104-198302

sub51003-36420

sub17572-44070

main51001-3B030iRU20..RHD..SRF197904-198104

sub51003-36431

sub17572-44070

main51001-3B031iBU20..RHD;RU20..VSG;BU20..LHD..V;RU20..RHD..TS198104-198302

sub51003-36431

sub17572-44070

main51001-3B040iRU20..LHD..V197904-198104

sub51003-36440

sub17572-44070

main51001-3B041iBU20,RU20..LHD..(HRF,SRF)198104-198302

sub51003-36440

sub17572-44070

main51001-3B050iRU20..RHD..TW1197904-198104

sub51003-36451

sub17572-44070

main51001-3B051iRU20..ARL..CBU198104-198302

sub51003-36451

sub17572-44070

main51001-3B060iRU20..RHD..T1197904-198104

W/HEAVY I BEAM

sub51003-36741

sub17572-44070

main51001-3B061iBU20..RHD..T1198104-198302

HIGH GROUND CLEARANCE TYPE

sub51003-36741

sub17572-44070

main51001-3B061iBU20..5F..ST198302-198411

sub51003-36741

sub17572-44070

main51001-3B070iRU20..RHD..T3..ST197904-198104

W/HEAVY I BEAM

sub51003-36751

sub17572-44070

main51001-3B071iBU20..RHD..T3..ST198104-198302

HIGH GROUND CLEARANCE TYPE

sub51003-36751

sub17572-44070

main51001-3B071iBU20..5H..ST..IV3198302-198408

sub51003-36751

sub17572-44070

main51001-3B080iBU20,RU20..LHD..T1197904-198104

W/HEAVY I BEAM

sub51003-36760

sub17572-44070

main51001-3B081iBU20,RU20..LHD..T1198104-198203

HIGH GROUND CLEARANCE TYPE

sub51003-36760

sub17572-44070

main51001-3B090iBU20,RU20..LHD..T3..ST197904-198104

W/HEAVY I BEAM

sub51003-36770

sub17572-44070

main51001-3B091iBU20,RU20..T3..ST..CBU198302-198408

sub51003-36770

sub17572-44070

main51001-3B091iBU20,RU20..LHD..T3..ST198104-198302

HIGH GROUND CLEARANCE TYPE

sub51003-36770

sub17572-44070

main51001-3B100iBU20,RU20..RHD..SRF197904-198104

W/HEAVY I BEAM

sub51003-36780

sub17572-44070

main51001-3B101iBU20,RU20..RHD..SRF198104-198302

HIGH GROUND CLEARANCE TYPE

sub51003-36780

sub17572-44070

main51001-3B101iBU20,RU20..RHD..5H..ST..CBU198302-198408

sub51003-36780

sub17572-44070

main51001-3B110iBU20,RU20..LHD..V..GEN197904-198104

W/HEAVY I BEAM

sub51003-36790

sub17572-44070

main51001-3B111iBU20,RU20..LHD..SRF198302-198408

sub51003-36790

sub17572-44070

main51001-3B111iBU20,RU20..LHD..(HRF,SRF)198104-198302

HIGH GROUND CLEARANCE TYPE

sub51003-36790

sub17572-44070

main51001-3B170iBU36..RHD198302-198408

main51001-3B181iBU20..TB198302-198408

main51001-3B230iBU30,32..RHD..T3198104-198411

main51001-3B240iBU32..TS198104-198408

main51001-3B250iBU30,31,32..LHD198104-198408

main51001-3B330iBU40..RHD198204-198408

main51001-3B360iHU40198204-198408

main51001-3B370iHU50198204-198408

main51001-3B380iRU20..ARL..CBU198302-198408

main51001-3B380iRU20..ARL..CBU198207-198302

W/HEAVY I BEAM

main51001-3B440iRU30..LHD..TS198207-198408

main51001-3B470iBU36..LHD198302-198408

main51001-3B490iWU40..RHD198302-198408

main51001-3B500iWU40..LHD198302-198408

main51001-3B530iRU25198304-198408

SAUDI ARABIA SPEC

main51001-3B540iWU50198312-198408

main51001-3B550iBU23198312-198408

main51002-3B080iBU36..LHD198402-198408

*AXC=Q194

main51003-36391iBU20..RHD..T1197904-197906

main51003-36400iBU20..LHD..T1197904-197906

main51003-36411iBU20..RHD..T3..ST197904-197906

main51003-36420iBU20..LHD..T3..ST197904-197906

main51003-36431iBU20..RHD..SRF197904-197906

main51003-36440iBU20..LHD..V197904-197906

main51003-36461iRU20..LHD..TW1197904-198104

sub51003-36460

sub17572-44070

main51003-36462iRU20..TW1..GEN198104-198302

sub51003-36460

sub17572-44070

main51003-36501iRU20..RHD..WT197904-198104

sub51003-36502

main51003-36502iRU20..RHD..WT198104-198302

main51003-36511iRU20..LHD..WT197904-198104

sub51003-36512

main51003-36512iRU20..LHD..WT198104-198302

main51003-36521iBU20,RU20..RHD..WT197904-198104

W/HEAVY I BEAM

sub51003-36522

main51003-36522iBU20,RU20..RHD..TS..WT198302-198411

main51003-36522iBU20,RU20..RHD..WT198104-198302

HIGH GROUND CLEARANCE TYPE

main51003-36531iBU20,RU20..LHD..WT197904-198104

W/HEAVY I BEAM

sub51003-36532

main51003-36532iBU20,RU20..LHD..WT198104-198302

HIGH GROUND CLEARANCE TYPE

main51003-36532iBU20,RU20..LHD..WT198302-198408

main51003-36532iRU20..EUR198207-198408

W/HEAVY I BEAM

main51003-36621iBU30,RU30..LHD..TB197904-198104

sub51003-36622

main51003-36622iBU30,RU30..LHD..TB198104-198408

main51003-36631iHU30..RHD..TB197904-198104

main51003-36641iHU30..LHD197904-198104

main51003-36651iRU30..RHD..TS..GEN197904-198008

main51003-36661iRU30..LHD..TS197904-198104

sub51003-36662

main51003-36662iRU30..LHD..TS198104-198207

main51003-36671iRU30..TS..ARL197904-198104

sub51003-36672

main51003-36672iRU30..TS..5H..IV3198104-198408

main51003-36681iHU30..TS197904-198104

main51003-36720iRU25..RHD197803-198008

main51003-36730iBU25,RU25..LHD197803-198104

sub51003-36731

main51003-36731iBU25,RU25198104-198408

main51003-36741iBU20..RHD..T1197904-197906

W/HEAVY I BEAM

main51003-36751iBU20..RHD..T3..ST197904-197906

W/HEAVY I BEAM

main51003-36760iBU20..LHD..T1197806-197906

W/HEAVY I BEAM

main51003-36770iBU20..LHD..T3..ST..GEN197806-197906

W/HEAVY I BEAM

main51003-36780iBU20..RHD..SRF197806-197906

W/HEAVY I BEAM

main51003-36790iBU20..LHD..V..GEN197806-197906

W/HEAVY I BEAM

main51003-36801iRU20..RHD..TW1197904-198104

W/HEAVY I BEAM

main51003-36811iRU20..LHD..TW1197904-198104

W/HEAVY I BEAM

sub51003-36812

main51003-36812iRU20..TW1..GEN198104-198302

HIGH GROUND CLEARANCE TYPE

main51003-36812iRU20..TW1..GEN198302-198408

main51003-36821iBU30,RU30..RHD..TB197904-198104

sub51003-36822

main51003-36822iBU30,RU30..RHD..T3198104-198408

main51003-36830iBU20,RU20..RHD..T1197904-198104

sub51003-36391

sub17572-44070

main51003-36831iBU20..RHD..T1198104-198302

sub51003-36391

sub17572-44070

main51003-36841iBU30..T2198302-198408

main51003-36890iBU20,RU20..LHD..T1197904-198104

sub51003-36400

sub17572-44070

main51003-36891iBU20,RU20..LHD..T1198104-198203

sub51003-36400

sub17572-44070

main51100-3B770iBU40..LHD198302-198408

51202CROSSMEMBER SUB-ASSY, FRAME, NO.1

main51201-36050iBU2#,30,HU30,JU20,RU2#,30197708-198104

main51201-36051iBU2#,30,31,32,RU2#,30198104-198411

main51201-36060iWU40;BU36,40,HU40,50..RHD198204-198408

main51201-36110iBU36,40,WU50..LHD198302-198408

51203CROSSMEMBER SUB-ASSY, FRAME, NO.2

main51202-36060iBU2#,30,31,32,HU30,JU20,RU2#,30197708-198411

main51202-36070iWU40;BU36,40,HU40,50..RHD198204-198408

main51202-36110iBU36,40,WU50..LHD198302-198408

51204CROSSMEMBER SUB-ASSY, FRAME, NO.3

main51025-36030iBU36,40,HU40,50,WU40,50198204-198408

main51203-36210iBU20,30,JU20,RU20,30197708-198411

main51203-36220iBU23,31,32,HU30197708-198408

main51231-36120iBU25,RU25197803-198408

51205CROSSMEMBER SUB-ASSY, FRAME, NO.4

main51203-36220iBU36,40,HU40,50,WU40,50198204-198408

main51204-36050iBU30,HU30,RU30197708-198102

sub51204-36060

main51204-36060iBU30,31,32,HU30,RU30198102-198304

main51204-36061iBU30,31,32,RU30198304-198411

main51241-36070iBU20,JU20,RU20..ST197708-198411

main51241-36100iBU25,RU25197803-198408

main51251-36060iBU20,RU20..WT197708-197904

sub51251-36070

sub94110-41000

main51251-36070iBU20,RU20..WT197904-198304

main51251-36071iBU20,23,RU20..WT198304-198411

51206CROSSMEMBER SUB-ASSY, FRAME, NO.5

main51204-36060iBU36198302-198304

main51204-36061iBU36198304-198408

main51204-36090iBU40,HU40,50198204-198304

main51204-36091iBU40,HU40,50,WU40,50198304-198408

main51206-36010iBU20,23,RU20..T3..WT197708-198411

main51206-36020iBU20..TB198302-198408

main51209-36170iBU25,RU25197803-198408

main51251-36050iBU20,JU20,RU20..ST197708-198411

main51251-36060iBU30,HU30,RU30197708-197904

sub51251-36070

sub94110-41000

main51251-36070iBU30,31,32,HU30,RU30197904-198304

main51251-36071iBU30,31,32,RU30198304-198411

51207CROSSMEMBER SUB-ASSY, FRAME, NO.6

main51204-36090iHU50198204-198304

main51204-36091iHU50198304-198408

main51205-36090iBU40,HU40,WU40,50198304-198408

main51206-36030iBU30,31,32,HU30,RU30197708-198411

main51207-36020iBU20,23,RU20..T3..WT197708-198411

main51207-36030iBU20..TB198302-198408

main51251-36070iBU36,40,HU40198204-198304

main51251-36071iBU36198304-198408

51208CROSSMEMBER SUB-ASSY, FRAME, NO.7

main51205-36090iHU50198304-198408

main51206-36030iBU36198302-198408

main51206-36060iBU40,HU40,WU40,50198204-198408

main51207-25030iBU30..T2198302-198408

main51207-36020iBU30,31,32,HU30,RU30..T3,TW1197708-198411

main51251-36070iHU50198204-198304

51209CROSSMEMBER SUB-ASSY, FRAME, NO.8

main51206-36060iHU50198204-198408

main51207-36010iBU40,HU40,WU40,50198204-198408

main51207-36020iBU36198302-198408

main51291-36090iBU30,31,32,HU30,RU30197708-198411

51210CROSSMEMBER SUB-ASSY, FRAME, NO.9

main51207-36010iHU50198204-198408

main51209-36190iBU36,40,HU40,WU40,50198204-198408

51211CROSSMEMBER SUB-ASSY, FRAME, NO.10

main51209-36190iHU50198204-198408

12 parts on this diagram · 2 diagrams in section
