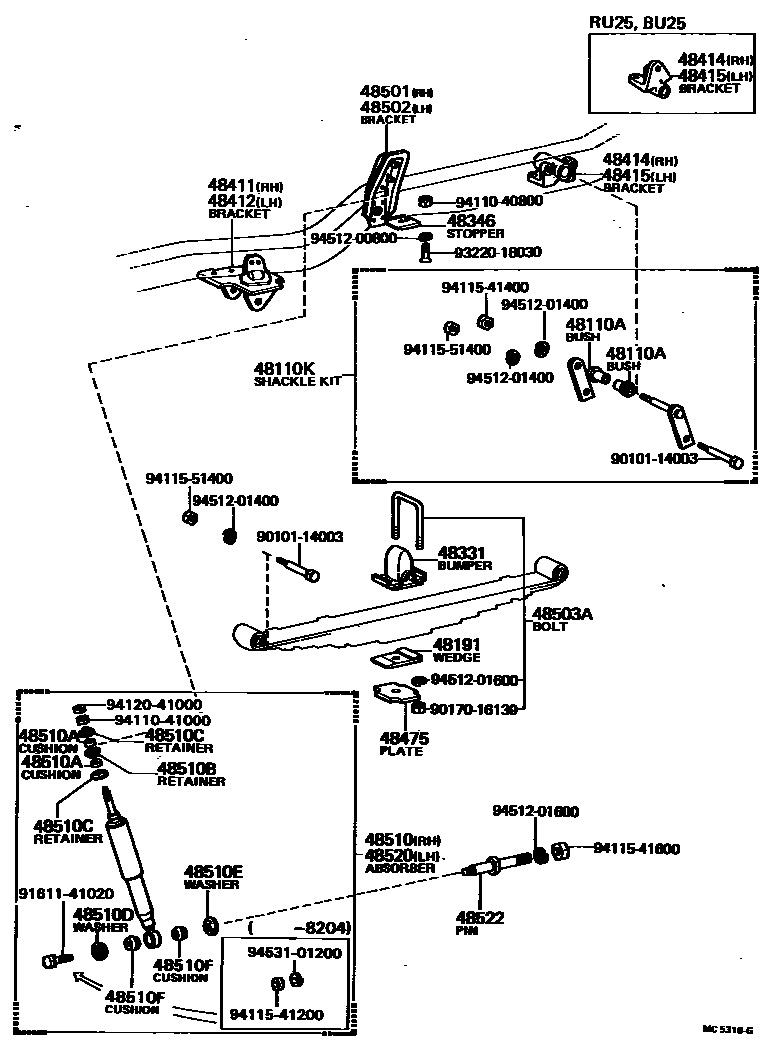

FRONT SPRING & SHOCK ABSORBER

0001 1 0002 1 0003 1 (8308-8408)RU25 0008 130..T2 0012 1 0016 1 0019 1 0020 1

48110SPRING ASSY, FRONT, RH

main48110-36150iBU2#,JU20,RU2#197708-198008

NO.7 LEAF T=6

sub48110-36260

main48110-36160iBU30,RU30197708-198008

NO.7 LEAF T=13

sub48110-36320

main48110-36170iBU30..RHD197904-198008

THAILAND SPEC

sub48110-36440

main48110-36170iHU30197708-198008

sub48110-36440

main48110-36220iBU20..RHD..T1;BU20..RHD..WT..GEN197904-198008

THAILAND SPEC

sub48110-36450

main48110-36240iHU30..ARL198008-198104

8-LEAF SPRING

sub48110-36440

main48110-36250iBU23,31,HU30..GEN198008-198408

sub48110-36440

main48110-36250iBU30,RU30..LHD..GEN198008-198104

8-LEAF SPRING

sub48110-36440

main48110-36260iBU20,RU20..ARL..IV3198008-198408

7-LEAF SPRING

main48110-36280iRU20..ARL..CBU198104-198308

main48110-36290iBU20,RU20..BUS198104-198308

main48110-36290iBU20,30,RU20,30..EUR197911-198104

NO.7 LEAF T=10,7-LEAF SPRING

main48110-36300iBU2#,RU2#..LHD..GEN198008-198104

sub48110-36260

main48110-36320iBU30..RHD..5H..GEN198104-198408

main48110-36320iBU30,RU30..RHD198008-198104

7-LEAF SPRING

main48110-36330iBU30..LHD..(EUR,GEN)198104-198408

sub48110-36320

main48110-36330iBU30,RU30..LHD..GEN198008-198104

7-LEAF SPRING

sub48110-36320

main48110-36360iRU20..ARL..CBU198308-198408

sub48110-36280

main48110-36370iBU20,RU20..BUS198308-198408

sub48110-36290

main48110-36401iBU36198302-198408

main48110-36440iBU2#,RU2#..LHD..WT..GEN198008-198104

8-LEAF SPRING

main48110-36441iBU20,25,RU2#..LHD..WT..GEN198104-198408

10-LEAF SPRING

main48110-36450iBU20,RU20..RHD..GEN198104-198411

main48110-36450iBU20,RU20..RHD..GEN198008-198104

9-LEAF SPRING

main48110-36460iBU20,RU20..LHD..(TR,V)..GEN198104-198408

sub48110-36450

main48110-36460iBU2#,RU2#..LHD..GEN198008-198104

9-LEAF SPRING

sub48110-36450

main48110-36470iBU32..ARL198104-198408

sub48110-36441

main48110-36470iBU30..RHD..GHI198104-198411

10-LEAF SPRING

sub48110-36441

main48110-36480iBU32..GEN198104-198408

10-LEAF SPRING

sub48110-36441

main48110-36490iBU40,HU40,50,WU40..RHD198204-198408

main48110-36500iWU40..RHD..IV3198304-198408

THAILAND SPEC

main48110-36510iRU25198304-198408

S.ARABIA SPEC

main48110-36530iBU40,WU40,50..LHD198302-198408

main48110-36550iHU40,50..GEN..IV3198311-198408

W/LSPV

48110ABUSH(FOR FRONT SPRING SHACKLE)

main90385-18025iBU2#,30,HU30,JU20,RU2#,30197708-198411

48110KSHACKLE KIT, FRONT SPRING

main04481-36040iBU20,30,HU30,JU20,RU20,30197708-197904

sub04481-36041

main04481-36041iBU20,30,HU30,RU20,30197904-198004

sub04481-36042

main04481-36042iBU20,23,30,31,32,HU30,RU20,30198004-198411

main04481-36050iBU25,RU25197803-198004

sub04481-36051

main04481-36052iBU25,RU25198004-198408

sub04481-36060

48191WEDGE, CASTER(FOR FRONT LEAF SPRING)

main48191-35010iBU2#,3#,40,HU40,50,RU2#,30,WU40,50197912-198411

main48191-35020iBU2#,30,HU30,JU20,RU2#,30197708-198408

48331BUMPER, FRONT SPRING, NO.1

main48304-36030iBU2#,3#,HU30,JU20,RU2#,30197708-198411

sub48304-36080

main48304-36060iBU40,HU40,50,WU40,50198204-198408

sub48304-36070

48346STOPPER, BUMPER, FRONT

main48346-25020iHU30197708-198008

main48346-36030iBU25,RU25197803-198408

48411BRACKET, FRONT SPRING(FOR FRONT RH)

main48411-36070iBU2#,30,31,32,HU30,JU20,RU2#,30197708-198411

main48411-36082iBU36198302-198408

main48411-36090iBU40,HU40,50,WU40,50198204-198408

48412BRACKET, FRONT SPRING(FOR FRONT LH)

main48412-36070iBU2#,30,31,32,HU30,JU20,RU2#,30197708-198411

main48412-36082iBU36198302-198408

main48412-36090iBU40,HU40,50,WU40,50198204-198408

48414BRACKET, FRONT SPRING(FOR REAR RH)

main48413-36020iBU20,23,30,31,32,HU30,JU20,RU20,30197708-198411

main48433-36030iBU25,RU25197803-198408

main48433-36040iBU36,40,HU40,50,WU40,50198204-198408

sub48433-36050

48415BRACKET, FRONT SPRING(FOR REAR LH)

main48413-36020iBU20,23,30,31,32,HU30,JU20,RU20,30197708-198411

main48434-36030iBU25,RU25197803-198408

main48434-36040iBU36,40,HU40,50,WU40,50198204-198408

sub48434-36050

48475PLATE, DISTANCE(FOR FRONT)

main48475-36070iBU2#,3#,HU30,JU20,RU2#,30197711-198411

48501BRACKET SUB-ASSY, FRONT SHOCK ABSORBER, UPPER RH

main48501-36030iBU36,40,HU40,50,WU40,50198204-198408

main48512-36050iBU2#,30,31,32,HU30,JU20,RU2#,30197708-198411

48502BRACKET SUB-ASSY, FRONT SHOCK ABSORBER, UPPER LH

main48502-36040iBU36,40,HU40,50,WU40,50198204-198408

main48512-36050iBU2#,30,31,32,HU30,JU20,RU2#,30197708-198411

48503ABOLT, U(FOR FRONT SHOCK ABSORBER BRACKET)

main90118-16067iBU20,RU20..ARL,EUR197708-198408

L=105

sub90118-16214

main90118-16067iRU25198304-198408

S.ARABIA SPEC,L=105

sub90118-16214

main90118-16102iBU20,RU20..ARL,EUR197708-198408

L=115

sub90118-16216

main90118-16102iBU2#,30,JU20,RU2#,30197711-198104

W/DISTANCE PLATE,L=115

sub90118-16216

main90118-16102iBU30,RU30;BU20,RU20..ARL,EUR198008-198104

W/8-LEAF SPRING,L=115

sub90118-16216

main90118-16102iBU20,RU20..BUS198104-198408

L=105

sub90118-16216

main90118-16102iRU25198304-198408

S.ARABIA SPEC,W/PLATE,L=115

sub90118-16216

main90118-16146iBU2#,RU2#..GEN198008-198104

W/PLATE,L=130,THAILAND SPEC

sub90118-16217

main90118-16146iBU20,RU20..(TR,V)..GEN198104-198204

W/10-LEAF & PLATE,L=130

sub90118-16217

main90118-16165iBU2#,30,RU2#,30..WT..GEN198008-198104

W/8-LEAF & PLATE,L=125

sub90118-16215

main90118-16165iBU23,31,36198104-198408

L=115,W/DISTANCE PLATE

sub90118-16215

main90118-16165iBU40,HU40,50,WU40,50198204-198408

L=125

sub90118-16215

main90118-16165iHU30197711-198104

W/DISTANCE PLATE,L=125

sub90118-16215

main90118-16165iBU20,RU20..(TR,V)..GEN198104-198411

W/10-LEAF SPRING,L=125

sub90118-16215

main90118-16165iBU2#,RU2#..GEN198008-198104

L=125,THAILAND SPEC

sub90118-16215

main90118-16194iBU30..GHI;BU25,32,RU25198104-198411

L=135,W/10-LEAF SPRING,L=135

sub90117-16015

main90118-16194iBU30..GHI;BU25,32,RU25198104-198411

L=135,L=135

sub90117-16015

main90118-16195iBU30..GHI;BU25,32,RU25198104-198411

W/DISTANCE PLATE,L=145

sub90118-16218

main90118-16195iBU20,RU20,30..WT..GEN198104-198411

W/10-LEAF & PLATE,L=145

sub90118-16218

main90118-16195iHU40,50..GEN..IV3198311-198408

W/LSPV

sub90118-16218

main90118-16198iBU20,RU20..(TR,V)..GEN198204-198411

W/10-LEAF & PLATE,L=130

sub90118-16217

main90118-16198iBU30..T2198302-198408

W/DISTANCE PLATE,L=130

sub90118-16217

main90118-16198iWU40..RHD..IV3198304-198408

THAILAND SPEC,L=130

sub90118-16217

48510ABSORBER ASSY, SHOCK, FRONT RH

main48511-39225iBU30..EUR,GEN197708-198204

sub48511-39226

main48511-39226iRU25198304-198408

S.ARABIA SPEC

sub48511-39227

main48511-39226iBU30..EUR,GEN198204-198411

sub48511-39227

main48511-39295iBU20,RU20,30..EUR198008-198204

sub48511-39296

main48511-39296iBU20,RU20,30..EUR198204-198408

sub48511-39297

main48511-39306iBU36198302-198408

sub48511-39307

main48511-39325iBU20,RU20,30..WT..GEN198104-198204

W/10-LEAF SPRING

sub48511-39326

main48511-39326iBU30..GHI;BU25,32,RU25198204-198411

W/10-LEAF SPRING

sub48511-39327

48510ACUSHION, FRONT SHOCK ABSORBER

main90948-01003iBU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50197708-198411

48510BRETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER)

main90948-02007iBU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50197708-198411

48510CRETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER)

main90948-02002iBU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50197708-198411

48510DWASHER, FRONT SHOCK ABSORBER CUSHION, NO.1

main90948-03003iBU2#,3#,HU30,JU20,RU2#,30197708-198204

main90948-03007iBU2#,3#,40,HU40,50,RU2#,30,WU40,50198204-198411

48510EWASHER, FRONT SHOCK ABSORBER CUSHION, NO.2

main90948-03004iBU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50197708-198411

48510FCUSHION, SHOCK ABSORBER

main90385-16007iBU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50197708-198411

48520ABSORBER ASSY, SHOCK, FRONT LH

main48511-39225iBU20,31,RU20,30..ARL,GEN197708-198204

sub48511-39226

main48511-39226iBU30..EUR,GEN198204-198411

sub48511-39227

main48511-39226iRU25198304-198408

S.ARABIA SPEC

sub48511-39227

main48511-39295iBU20,30,RU20,30..EUR198008-198204

sub48511-39296

main48511-39296iBU20,RU20,30..EUR198204-198408

sub48511-39297

main48511-39306iBU36198302-198408

sub48511-39307

main48511-39325iBU20,RU20,30..WT..GEN198104-198204

W/10-LEAF SPRING

sub48511-39326

main48511-39326iBU30..GHI;BU25,32,RU25198204-198411

W/10-LEAF SPRING

sub48511-39327

48522PIN, FRONT SHOCK ABSORBER LOWER PIVOT

main48522-25010iBU2#,3#,40,HU40,50,RU2#,30,WU40,50198204-198411

main48522-36030iBU2#,3#,HU30,JU20,RU2#,30197708-198204

9010114003

main90101-14003

9017016139

main90170-16139

9161141020

main91611-41020

9322018030

main93220-18030

9411040800

main94110-40800

9411041000

main94110-41000

9411541200

main94115-41200

9411541400

main94115-41400

9411541600

main94115-41600

9411551400

main94115-51400

9412041000

main94120-41000

9451200800

main94512-00800

9451201400

main94512-01400

9451201600

main94512-01600

9453101200

main94531-01200
