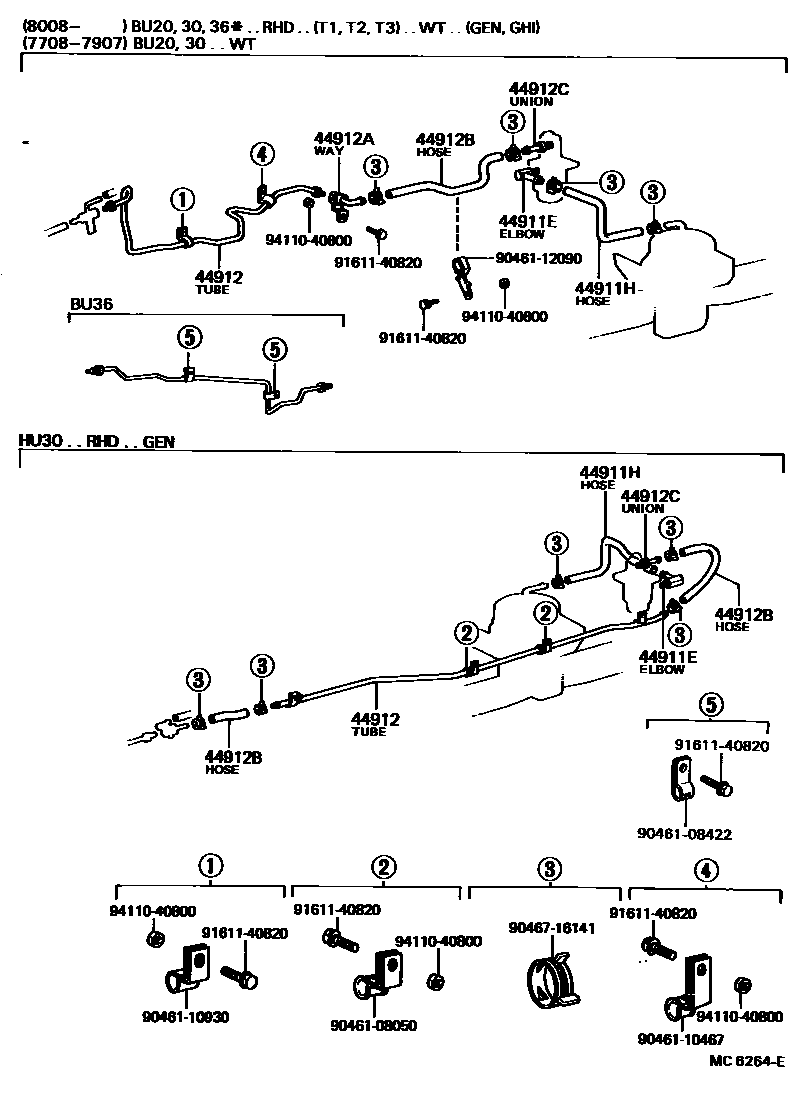

EXHAUST BRAKE TUBE & CLAMP

0001 1 0003 1

44911EELBOW (FOR MAGNETIC VALVE TO VACUUM CYLINDER TUBE)

main90407-51002iBU36,40,HU40,50,WU40,50197708-198411

44911HHOSE (FOR MAGNETIC VALVE TO VACUUM CYLINDER TUBE)

main90445-17002iBU20,30..RHD..WT197708-197904

sub95441-09200

main90445-17016iHU30..RHD..GEN197904-197907

sub95441-09300

main90445-17033iHU30..RHD..GEN197708-197904

sub95441-09220

main90445-17895iBU20,30..RHD..WT197904-198212

sub95441-09250

main95441-09250iBU36,40,HU40,50,WU40,50198212-198411

sub95441-09270

44912TUBE, 3 WAY TO MAGNETIC VALVE

main44912-36030iBU20,30..RHD..WT197708-197904

main44912-36031iBU20,30..RHD..TR..(GEN,GHI)197904-198411

main44912-36040iHU30..RHD..GEN197708-197907

main44912-36050iBU36,40,WU40,50198204-198408

main44912-36060iHU40;HU50..GEN198204-198408

main44912-36070iHU50..ARL198204-198408

44912AWAY, 2(FOR 3 WAY TO MAGNETIC VALVE TUBE)

main90412-14005iBU20,30..RHD..WT197708-197904

main90412-14007iBU20,30..RHD..WT197904-198411

44912BHOSE(FOR 3 WAY TO MAGNETIC VALVE TUBE)

main44771-36010iBU20,30..RHD..(T1,T3)..(GEN,GHI)197708-198411

main44771-36020iBU36198302-198408

main44771-36030iBU40,WU40,50198204-198408

main90445-17039iHU30..RHD..GEN197708-197907

FR,L=90

main90445-17895iHU40,50198204-198212

sub95441-09250

main90445-17895iHU30..RHD..GEN197708-197907

RR,L=250

sub95441-09250

main95441-09250iHU40,50198212-198408

sub95441-09270

44912CUNION(FOR 3 WAY TO MAGNETIC VALVE TUBE)

main90404-51319iBU20,30,HU30..RHD..WT..GEN197708-198411

9046108050

main90461-08050

9046108422

main90461-08422

9046110467

main90461-10467

9046110930

main90461-10930

9046112090

main90461-12090

9046716141

main90467-16141

9161140820

main91611-40820

9411040800

main94110-40800

14 parts on this diagram · 2 diagrams in section
