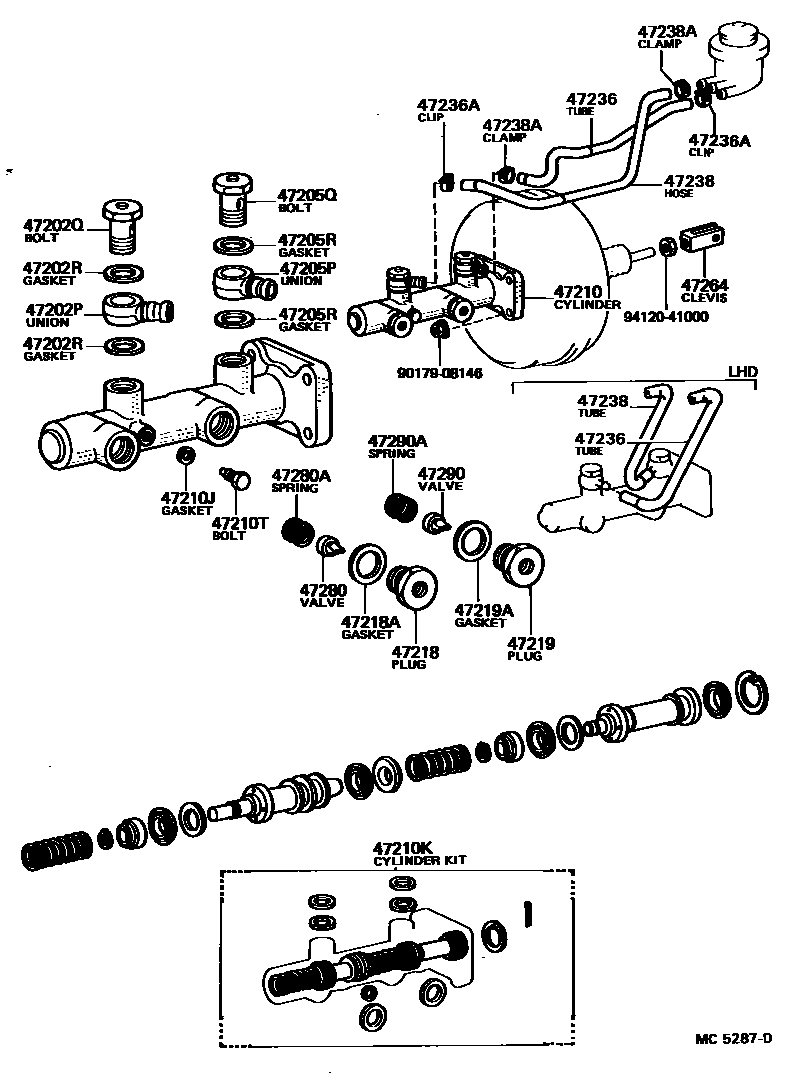

BRAKE MASTER CYLINDER

47202PUNION, RESERVOIR(FOR BRAKE MASTER CYLINDER SIDE)

main90405-13137iBU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50197708-198411

47202QBOLT, RESERVOIR UNION(FOR BRAKE MASTER CYLINDER SIDE)

main90401-16002iBU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50197708-198411

47202RGASKET, RESERVOIR UNION(FOR BRAKE MASTER CYLINDER SIDE)

main90430-16044iBU2#,3#,HU30,JU20,RU2#,30197708-198411

main90430-16242iBU40,HU40,50,WU40,50198204-198408

47205PUNION, RESERVOIR(FOR BRAKE MASTER CYLINDER REAR SIDE)

main90405-13137iBU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50197708-198411

47205QBOLT, RSVR UNION, NO.2(FOR BRAKE MASTER CYLINDER RR SIDE)

main90401-16002iBU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50197708-198411

47205RGASKET, RESERVOIR UNION(FOR BRAKE MASTER CYLINDER REAR SIDE)

main90430-16044iBU2#,3#,HU30,JU20,RU2#,30197708-198411

main90430-16242iBU40,HU40,50,WU40,50198204-198408

47210CYLINDER ASSY, MASTER, W/O BOOSTER

main47201-36050iBU20,30,32,HU30,RU2#,30..RHD197708-198411

main47201-36080iBU2#,30,31,32,HU30,JU20,RU2#,30..LHD197708-198408

main47201-36110iBU40,HU40,50,WU40..RHD198204-198408

main47201-36120iBU36..RHD198302-198408

main47201-36140iBU40,WU40,50..LHD198302-198408

main47201-36150iBU36..LHD198304-198408

47210JGASKET(FOR MASTER CYLINDER)

main90430-06104iBU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50197708-198411

47210KCYLINDER KIT, BRAKE MASTER

main04493-36020iBU2#,30,31,32,HU30,JU20,RU2#,30197708-198411

main04493-36040iBU36198302-198408

sub04493-36050

main04493-36060iBU40,HU40,50,WU40,50198204-198408

47210TBOLT(FOR BRAKE MASTER CYLINDER)

main90109-06008iBU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50197708-198411

47218PLUG, MASTER CYLINDER FLUID OUTLET

main47218-36030iBU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50197708-198411

47218AGASKET(FOR FLUID OUTLET PLUG)

main90430-11001iBU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50197708-198411

47219PLUG, MASTER CYLINDER FLUID OUTLET(FOR REAR SIDE)

main47218-36030iBU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50197708-198411

47219AGASKET(FOR FLUID OUTLET PLUG REAR SIDE)

main90430-11001iBU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50197708-198411

47236TUBE, RESERVOIR BRAKE

main47234-36050iBU20,30,HU30,RU2#,30..RHD197708-198008

main47234-36051iBU20,30,32,HU30,RU20,30..RHD198008-198411

main47234-36060iBU2#,3#,40,HU30,JU20,RU2#,30,WU40,50..LHD197708-198408

main47234-36070iBU36,40,HU40,50,WU40..RHD198204-198408

47236ACLIP(FOR RESERVOIR TUBE)

main90467-16141iBU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50197708-198411

47238HOSE, MASTER CYLINDER BRIDGE

main47235-36050iBU20,30,HU30,RU2#,30..RHD197708-198008

main47235-36051iBU20,30,32,HU30,RU20,30..RHD198008-198411

main47235-36060iBU2#,3#,40,HU30,JU20,RU2#,30,WU40,50..LHD197708-198408

main47235-36070iBU36,40,HU40,50,WU40..RHD198204-198408

47238ACLAMP, HOSE(FOR MASTER CYLINDER BRIDGE HOSE)

main90467-16141iBU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50197708-198411

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-35010iBU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50197708-198411

47280VALVE ASSY, BRAKE MASTER CYLINDER OUTLET CHECK

main47281-30020iBU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50197708-198411

47280ASPRING, COMPRESSION

main90504-05003iBU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50197708-198411

47290VALVE ASSY, MASTER CYLINDER OUTLET(FOR REAR SIDE)

main47281-30020iBU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50197708-198411

47290ASPRING, COMPRESSION(FOR FLUID OUTLET REAR SIDE)

main90504-05003iBU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50197708-198411

9017908146

main90179-08146

9412041000

main94120-41000

25 parts on this diagram · 1 diagram in section
