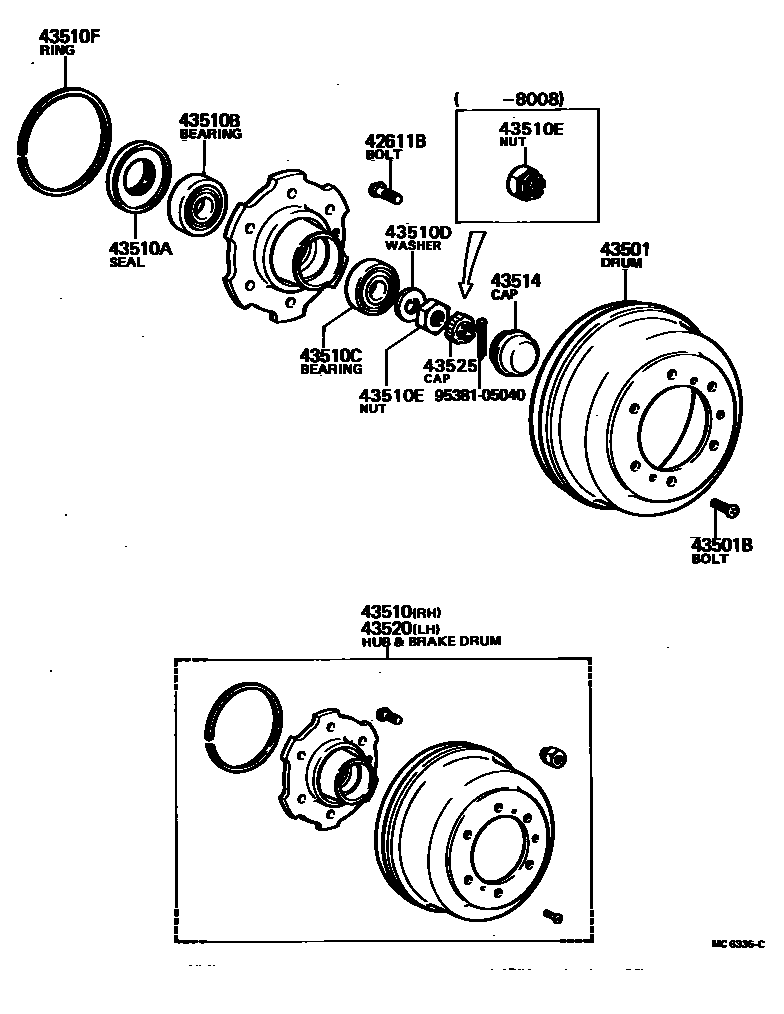

FRONT AXLE HUB

0001 1 0002 1 0003 1 0004 1TAIWAN WIDE CAB

42611BBOLT, HUB (FOR FRONT AXLE)

main90039-12003iBU40,HU40,50,WU40,50198204-198408

RH

main90039-12004iBU40,HU40,50,WU40,50198204-198408

LH

main90942-02024iBU20..BUS;BU20..T3..ST;JU20,RU20..ST;BU20,30..T1,T2,VSG,VSP197708-198411

RH

main90942-02025iBU20..BUS;BU20..T3..ST;JU20,RU20..ST;BU20,30..T1,T2,VSG,VSP197708-198411

LH

main90942-02039iBU2#,30,HU30,RU2#,30..WT197708-198008

RH

main90942-02040iBU2#,30,HU30,RU2#,30..WT197708-198008

LH

main90942-02045iBU20,30..T3..WT;BU23,25,31,32,36,HU30,RU2#,30..WT198008-198411

RH

main90942-02045iBU40,WU40,50..LHD198403-198408

TAIWAN WIDE CAB,RH

main90942-02046iBU40,WU40,50..LHD198403-198408

TAIWAN WIDE CAB,LH

main90942-02046iBU20,30..T3..WT;BU23,25,31,32,36,HU30,RU2#,30..WT198008-198411

LH

43501DRUM SUB-ASSY, FRONT BRAKE

main43512-36020iBU20,JU20,RU20..ST197708-198006

main43512-36030iBU2#,30,HU30,RU2#,30..WT197708-198008

main43512-36040iBU20,30..T3..WT;BU25,31,32,36,HU30,RU2#,30..WT198008-198309

sub43512-36041

main43512-36041iBU20,30..T3..WT;BU23,25,31,32,36,RU2#,30..WT198309-198411

main43512-36060iRU20..ST;BU20..BUS;BU20..T3..ST;BU20,30..T1,T2,VSG,VSP198006-198411

main43512-36080iBU40,HU40,50198204-198305

sub43512-36081

main43512-36081iBU40,HU40,50,WU40,50198305-198408

main43512-36110iBU40,WU40,50..LHD198403-198408

TAIWAN WIDE CAB

43501BBOLT, SET (FOR FRONT BRAKE DRUM SETTING)

main90113-10015iBU20,JU20,RU20..ST197708-198206

sub90113-10035

main90113-10035iRU20..ST;BU20..BUS;BU20..T3..ST;BU20,30..T1,T2,VSG198206-198411

main91111-51016iBU40,HU40,50,WU40,50198204-198408

43510HUB AND BRAKE DRUM ASSY, FRONT AXLE, RH

main43510-36050iBU20,JU20,RU20..ST197708-198006

sub43510-36051

main43510-36051iRU20..ST;BU20..BUS;BU20..T3..ST;BU20,30..T1,T2,VSG,VSP198006-198408

sub43510-36110

main43510-36060iBU2#,30,HU30,RU2#,30..WT197708-198008

main43510-36070iBU20,30..T3..WT;BU25,31,32,36,HU30,RU2#,30..WT198008-198309

sub43510-36071

main43510-36071iBU20,30..T3..WT;BU23,25,31,32,36,RU2#,30..WT198309-198411

main43510-36100iBU40,HU40,50198204-198304

sub43510-36101

main43510-36101iBU40,HU40,50,WU40,50198304-198408

main43510-36110iBU20..ST198408-198411

main43510-36140iBU40,WU40,50..LHD198403-198408

TAIWAN WIDE CAB

43510ASEAL, OIL (FOR FRONT AXLE HUB)

main90033-19001iBU40,HU40,50,WU40,50198204-198408

main90311-68001iBU2#,3#,HU30,JU20,RU2#,30197708-198411

43510BBEARING, TAPERED ROLLER (FOR FRONT AXLE INNER BEARING)

main90368-42045iBU2#,3#,HU30,JU20,RU2#,30197708-198411

main90368-50001iBU40,HU40,50,WU40,50198204-198408

43510CBEARING, TAPERED ROLLER (FOR FRONT AXLE OUTER BEARING)

main90368-28001iBU2#,3#,HU30,JU20,RU2#,30197708-198411

main90368-35001iBU40,HU40,50,WU40,50198204-198408

43510DWASHER, CLAW (FOR STEERING KNUCKLE WASHER)

main90214-27001iBU2#,3#,HU30,JU20,RU2#,30197708-198411

main90214-33001iBU40,HU40,50,WU40,50198204-198408

43510ENUT (FOR STEERING KNUCKLE)

main90170-26001iBU2#,3#,HU30,RU2#,30198008-198411

main90171-26001iBU2#,30,HU30,JU20,RU2#,30197708-198008

main90171-33001iBU40,HU40,50,WU40,50198204-198408

43510FRING, SHAFT SNAP (FOR FRONT AXLE HUB)

main90520-99065iBU20..BUS;BU20..T3..ST;JU20,RU20..ST;BU20,30..T1,T2,VSG,VSP197708-198411

T=1.60

43514CAP, FRONT HUB GREASE

main43514-36030iBU2#,3#,HU30,JU20,RU2#,30197708-198411

main43514-37020iBU40,HU40,50,WU40,50198204-198408

43520HUB AND BRAKE DRUM ASSY, FRONT AXLE, LH

main43520-36050iBU20,JU20,RU20..ST197708-198006

sub43520-36051

main43520-36051iRU20..ST;BU20..BUS;BU20..T3..ST;BU20,30..T1,T2,VSG,VSP198006-198408

sub43520-36110

main43520-36060iBU2#,30,HU30,RU2#,30..WT197708-198008

main43520-36070iBU20,30..T3..WT;BU25,31,32,36,HU30,RU2#,30..WT198008-198309

sub43520-36071

main43520-36071iBU20,23,3#,RU20,30..(T3,TW1)..WT198309-198408

main43520-36100iBU40,HU40,50198204-198305

sub43520-36101

main43520-36101iBU40,HU40,50,WU40,50198305-198408

main43520-36110iBU20..ST198408-198411

main43520-36140iBU40,WU40,50..LHD198403-198408

TAIWAN WIDE CAB

43525CAP, FRONT WHEEL ADJUSTING LOCK

main43525-36010iBU2#,3#,HU30,RU2#,30198008-198411

9538105040

main95381-05040

14 parts on this diagram · 4 diagrams in section
