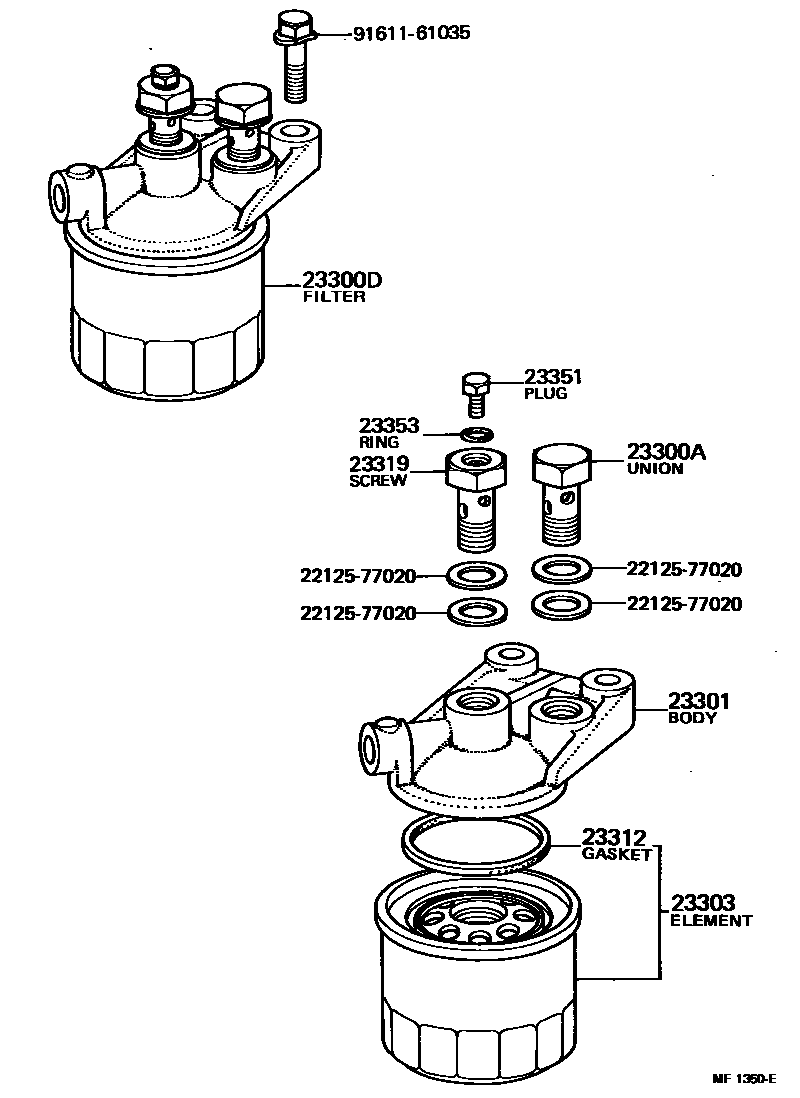

FUEL FILTER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0011 1 0012 1 0013 1

23300FILTER ASSY, FUEL

main23030-44050i5R..RU2#,30197708-197911

main23030-44060i5R..RU2#,30197911-198408

sub23300-44060

sub90412-08002

sub90461-10505

sub95332-06005

sub96132-30600

23300AUNION, NIPPLE(FOR FUEL FILTER INLET)

main23319-48010iH..HU30197910-198104

main90401-14004i1W..WU40,50198304-198408

main90401-14060iH..HU30197708-198411

sub90099-18010

23300DFILTER ASSY, FUEL(FOR DIESEL)

main23300-48012iH..HU30197708-197809

sub23300-48013

main23300-48013i2J..JU20197809-197910

sub23300-48014

main23300-48014iH..HU30197910-198104

main23300-56010iB..BU20,30197801-197906

PAPER ELEMENT

sub23300-56012

main23300-56012iB..BU20,30197906-198008

PAPER ELEMENT

main23300-56030iB..BU2#,30197708-197906

sub23300-56031

main23300-56031iB..BU2#,30197906-198008

main23300-56040iB,2B,3B..BU2#,3#,40198008-198411

CARTRIDGE TYPE

main23300-56050iB..BU2#,30198008-198411

PAPER ELEMENT

main23300-68030i2H..HU40,50198204-198408

23301BODY SUB-ASSY, FUEL FILTER

main23310-78010i1W..WU40,50198304-198408

main23311-48012i2J..JU20197708-198104

sub23311-48014

main23311-56010iB..BU20,30197801-198008

PAPER ELEMENT

main23311-56030iB..BU2#,30197708-197906

sub23311-56031

main23311-56031iB..BU2#,30197906-198008

23303ELEMENT SUB-ASSY, FUEL FILTER

main04234-48011i2J..JU20197708-198104

sub04234-48012

main04234-56010iB..BU20,30197801-197906

PAPER ELEMENT

sub04234-56011

main04234-56011iB..BU2#,30197906-198207

PAPER ELEMENT

main23303-54071i2H..HU40,50198204-198408

sub23303-54072

main23303-56012iB,3B..BU2#,30,40198207-198411

PAPER ELEMENT

main23303-56030iB..BU2#,30197708-197906

sub23303-56031

main23303-56031iB,2B,3B..BU2#,3#,40197906-198411

CARTRIDGE TYPE

main23304-78010i1W..WU40,50198304-198408

sub23304-89101

23312GASKET, FILTER BOWL

main23312-48012i2J..JU20197708-198104

main23312-56010iB..BU20,30197801-198108

PAPER ELEMENT

sub23312-68010

main23312-56021iB,2B,3B..BU2#,3#,40197708-198411

CARTRIDGE TYPE

main23312-68010iB,3B..BU2#,30,40198108-198411

PAPER ELEMENT

23319SCREW, FUEL PIPE FOLLOW

main23319-46010iB..BU2#,30197708-198201

main23319-46010iB..BU2#,30198201-198204

PAPER ELEMENT

main23319-48010iB,2B,3B..BU2#,3#,40198201-198411

CARTRIDGE TYPE

main23319-48010iB,3B..BU2#,30,40198204-198411

PAPER ELEMENT

main90401-14060iH..HU30197910-198104

sub90099-18010

23351PLUG, AIR VENT

main23322-78010i1W..WU40,50198304-198408

main23351-46010iH..HU30197708-198201

main23351-46010iB..BU2#,30198201-198204

PAPER ELEMENT

main23351-54010iB,2B,3B..BU2#,3#,40197912-198411

W/SEDIMENTER

main47547-12030iB,2B,3B..BU2#,3#,40198201-198411

CARTRIDGE TYPE

main47547-12030iB,3B..BU2#,30,40198204-198411

PAPER ELEMENT

23353RING, O(FOR AIR VENT PLUG)

main23353-46010iH..HU30197708-198201

main23353-46010iB..BU2#,30198201-198204

PAPER ELEMENT

main23353-54010i1W..WU40,50197912-198411

W/SEDIMENTER

main90202-06012i1W..WU40,50198304-198408

2212577020

main22125-77020

9161161035

main91611-61035

11 parts on this diagram · 11 diagrams in section
