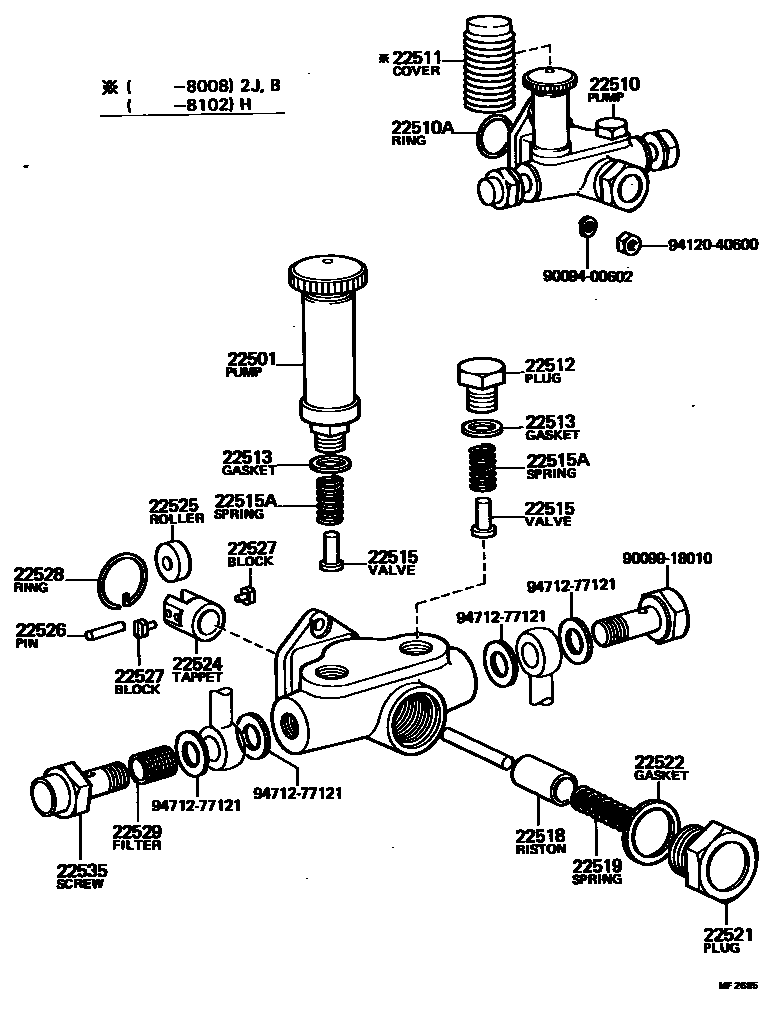

FUEL FEED PUMP

0001 1 0004 1

22501PUMP SUB-ASSY, PRIMING

main22501-77020iB..BU2#,30197708-197810

main22501-77021iH,2H..HU30,40,50197810-198411

main22501-78030i1W..WU40,50198304-198408

sub22501-77021

22510PUMP ASSY, FUEL FEED

main22510-56040iB,2B,3B..BU2#,3#,40197708-198411

main22510-77130i2H..HU40,50197708-198408

main22510-78030i1W..WU40,50198304-198408

22510ARING, O(FOR FUEL FEED PUMP)

main90099-14015i2J..JU20197708-198411

22511COVER, PRIMING PUMP

main22511-77020iB..BU2#,30197708-198102

22512PLUG, FEED PUMP CHECK VALVE CHAMBER

main22512-77020iH,2H..HU30,40,50197708-198411

22513GASKET, CHECK VALVE CHAMBER PLUG

main22513-77020iB,2B,3B..BU2#,3#,40197708-198411

22515VALVE, FEED PUMP CHECK

main22515-77020iH..HU30197708-198408

sub22515-77021

main22515-77021iB,2B,3B..BU2#,3#,40197708-198411

22515ASPRING, FEED PUMP CHECK VALVE

main22514-77020i1W..WU40,50198304-198408

sub90501-05141

main90501-05141iB,2B,3B..BU2#,3#,40197708-198411

22518PISTON, FEED PUMP

main22518-56010i2J..JU20197708-198411

RED,RED

sub22518-77020

main22518-56011iB,2B,3B..BU2#,3#,40197708-198411

YELLOW,YELLOW

sub22518-77020

main22518-56012iH,2H..HU30,40,50197708-198411

GREEN,GREEN

sub22518-77020

main22518-56013iB,2B,3B..BU2#,3#,40197708-198411

WHITE,WHITE

sub22518-77020

main22518-77020iB,2B,3B..BU2#,3#,40197708-198411

BLUE,BLUE

22519SPRING, FEED PUMP PISTON

main22519-48010iB,2B,3B..BU2#,3#,40197708-198411

main22519-78030i1W..WU40,50198304-198408

22521PLUG, FEED PUMP PISTON CHAMBER

main22521-77020iH..HU30197708-198408

sub22521-77021

main22521-77021iB,2B,3B..BU2#,3#,40197708-198411

22522GASKET, FEED PUMP PISTON PLUG

main22522-77020iB,2B,3B..BU2#,3#,40197708-198411

sub90099-01432

main90099-01432i1W..WU40,50198304-198408

22524TAPPET, FEED PUMP

main22524-77021iB,2B,3B..BU2#,3#,40197708-198411

22525ROLLER, FEED PUMP TAPPET

main22525-77020iB,2B,3B..BU2#,3#,40197708-198411

22526PIN, FEED PUMP TAPPET ROLLER

main22526-77020i1W..WU40,50197708-198411

22527BLOCK, FEED PUMP TAPPET SLIDING

main22527-56010iH,2H..HU30,40,50197708-198411

22528RING, FEED PUMP TAPPET SNAP

main22528-77020i2J..JU20197708-198411

main90099-01501i1W..WU40,50198304-198408

22529FILTER, FUEL PUMP

main22529-67010i2J..JU20197708-198411

22535SCREW, FUEL PIPE FOLLOW

main22535-46010iB,2B,3B..BU2#,3#,40197708-198411

9009400602

main90094-00602

9009918010

main90099-18010

9412040600

main94120-40600

9471277121

main94712-77121

23 parts on this diagram · 2 diagrams in section
