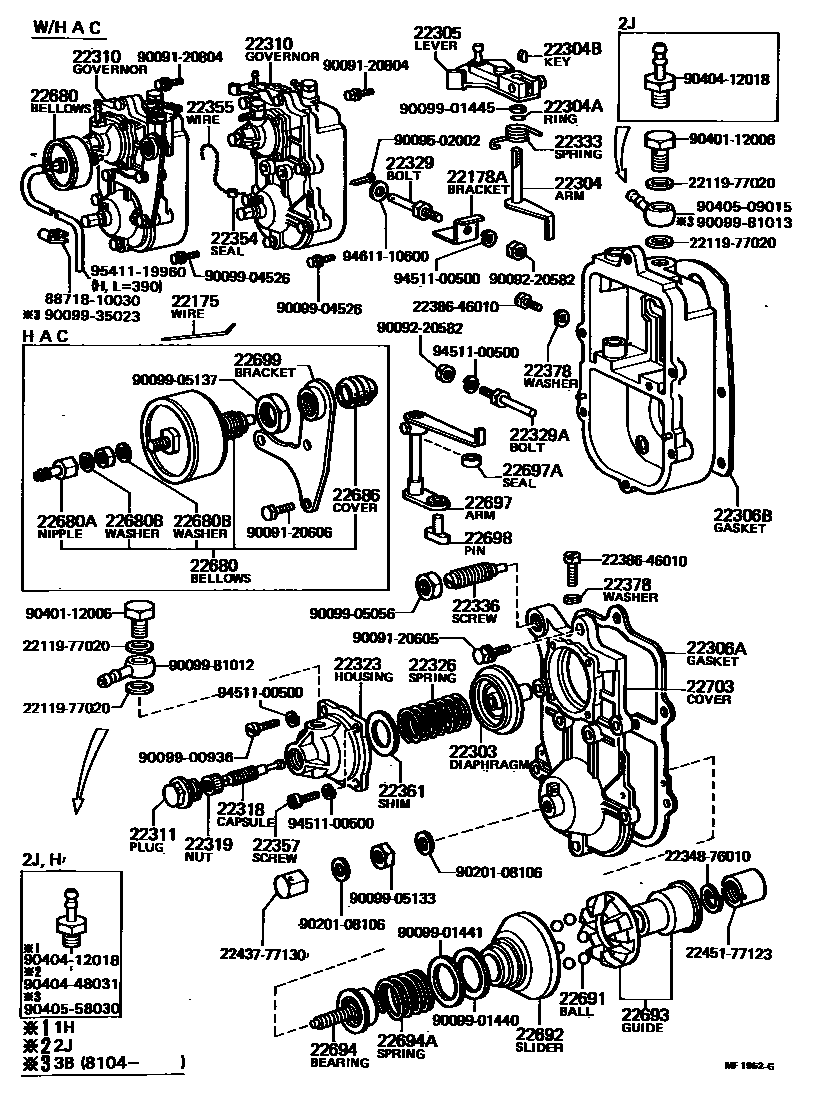

PNEUMATIC GOVERNOR

0001 1 0002 1 0004 1

22175WIRE, OVER INJECTION

main22173-48060i2J..JU20197708-197904

W/O EDIC

main22175-56060iH..HU30197708-198104

W/O EDIC

sub22175-68010

main22175-56070iB,3B..BU20,25,30,32,36..EUR,GEN,GHI197708-198411

W/O EDIC

sub22175-68010

22178ABRACKET, DIAPHRAGM CONNECTING

main22178-48024iH..HU30197708-198408

main22178-56011iB,2B,3B..BU2#,3#,40197708-198411

22303DIAPHRAGM SUB-ASSY, GOVERNOR

main22303-47010iH,2H..HU30,40,50197708-198411

22304LEVER SUB-ASSY, INJECTION PUMP, NO.3

main22408-68010iB,2B,3B..BU2#,3#,40198004-198411

main22408-77130iB..BU2#,30197708-198004

sub22408-68010

22304ARING, O(FOR NO.3 LEVER)

main96710-01008i2H..HU40,50197708-198411

sub96711-19008

main96710-10008i2J..JU20197708-198104

22304BKEY(FOR NO.3 LEVER)

main90099-13001i2J..JU20197708-198411

22305LEVER SUB-ASSY, INJECTION PUMP, NO.1

main22308-47120iH..HU30..GEN197708-198104

main22308-47130iH..HU30..GEN197708-198104

W/HAC

main22308-48031iH..HU30197708-198104

W/EDIC

main22308-48040iH..HU30197708-198104

W/EDIC & HAC

main22308-48061i2J..JU20197708-197904

W/HAC

main22308-56041iB,2B,3B..BU2#,3#,40197708-198411

W/EDIC

main22308-56061iB..BU2#,30197708-197804

main22308-56062iB,2B,3B..BU2#,3#,40197804-198411

main22308-56071iB..BU2#,30..GEN197708-197804

W/HAC

main22308-56072iB,3B..BU2#,30,32,40197804-198411

W/HAC

main22308-57020iB,3B..BU2#,30,32,36,40..GEN,GHI197708-198411

W/EDIC & HAC

main22308-68020i2H..HU40,50198204-198408

22306AGASKET(FOR GOVERNOR HOUSING)

main22442-77130iB,2B,3B..BU2#,3#,40197708-198411

22306BGASKET(FOR INJECTION PUMP HOUSING)

main22442-77131iB,2B,3B..BU2#,3#,40197708-198411

sub22442-58260

22310GOVERNOR ASSY, INJECTION PUMP

main22320-47061iH..HU30197708-198104

W/EDIC

main22320-47071iH..HU30..GEN197708-198104

W/EDIC & HAC

main22320-47091iH..HU30..GEN197708-198104

W/HAC

main22320-47120iH..HU30197708-198104

main22320-48040i2J..JU20197708-197904

W/EDIC & HAC

main22320-48061i2J..JU20197708-197904

W/HAC

main22320-56041iB..BU20,25,30;2B..BU31..CBU197708-198408

W/EDIC

main22320-56061iB..BU2#,30197708-197804

main22320-56062iB..BU20,25,30..EUR,GEN,GHI197804-198408

main22320-56071iB..BU2#,30..GEN197708-197804

W/HAC

main22320-56072iB..BU20,25,30..GEN,GHI197804-198408

W/HAC

main22320-57020iB..BU20,25,30..GEN,GHI197708-198408

W/EDIC & HAC

main22320-58010i3B..BU32,36,40;2B,3B..BU23,31..IV3198104-198408

W/EDIC

main22320-58060i3B..BU32,36..GEN198104-198408

W/HAC

main22320-58070i3B..BU32,36,40..GEN198104-198408

W/EDIC & HAC

sub22320-58071

main22320-58080i3B..BU32,40..GEN198104-198408

main22320-68020i2H..HU40,50198204-198408

W/EDIC

main22320-68040i2H..HU40,50..GEN198210-198408

W/EDIC & HAC

22311PLUG, DIAPHRAGM HOUSING SEALING SCREW

main22311-77130iH,2H..HU30,40,50197708-198302

main22457-58010i2H..HU40,50198302-198411

22318CAPSULE, IDLING

main22318-48030i2J..JU20197708-198411

22319NUT, GOVERNOR IDLING SPRING SET

main22319-77010i2J..JU20197708-198411

22323HOUSING, GOVERNOR DIAPHRAGM

main22323-58010i2H..HU40,50198302-198411

main22323-77010iB,2B,3B..BU2#,3#,40197708-198302

22326SPRING, GOVERNOR MAIN

main22326-48030i2J..JU20197708-198408

main22326-56040iB..BU20,25,30;2B..BU31..CBU197708-198411

main22326-58010i3B..BU32,36,40;2B,3B..BU23,31..IV3198104-198408

22329BOLT, DIAPHRAGM CONNECTING

main22329-77021i2J..JU20197708-198411

22329ABOLT, DIAPHRAGM CONNECTING, NO.2

main22329-77130iH,2H..HU30,40,50197708-198411

22333SPRING, DIAPHRAGM STOP LEVER RETURN

main22333-56040iB,2B,3B..BU2#,3#,40197708-198411

main22333-77130i2J..JU20197708-198408

22336CAPSULE, FULL STOP

main22336-46010iH,2H..HU30,40,50197708-198411

W/O HAC

sub22336-68010

main22336-68010i3B..BU32,36..GEN198104-198408

W/O HAC & EDIC

22354SEAL, LEAD

main22354-77050iB,2B,3B..BU2#,3#,40197708-198411

22355WIRE, GOVERNOR HOUSING SEAL

main22355-36010iB,2B,3B..BU2#,3#,40197708-198411

22357SCREW, DIAPHRAGM HOUSING SET

main22357-76011iH..HU30197708-197805

sub90099-04945

main90099-04945iB,2B,3B..BU2#,3#,40197805-198411

22361SHIM, MAIN SPRING

main22361-76010iB,2B,3B..BU2#,3#,40197708-198411

T=3.0,T=3.0

main22362-76010iH,2H..HU30,40,50197708-198411

T=2.0,T=2.0

main22363-76010iB,2B,3B..BU2#,3#,40197708-198411

T=1.0,T=1.0

main22364-76010iH,2H..HU30,40,50197708-198411

T=0.5,T=0.5

22378WASHER, DRAIN SCREW

main22113-77090iH..HU30197708-198408

main22378-76010iB,2B,3B..BU2#,3#,40197708-198411

sub22113-77090

22680BELLOWS ASSY, PNEUMATIC

main22680-48061iH..HU30197708-198111

W/HAC

sub22680-48062

main22680-48062i3B..BU32,40..GEN198104-198302

W/HAC

main22680-48062i2H..HU40,50..GEN198210-198408

W/EDIC & HAC

main22680-48062iB,3B..BU2#,30,32,36,40..GEN,GHI198302-198411

W/HAC,EDIC & HAC

22680ANIPPLE SUB-ASSY, OVERFLOW(FOR PNEUMATIC BELLOWS)

main22197-77140iH..HU30197708-198411

W/HAC,EDIC & HAC

main22197-77140i2H..HU40,50..GEN198210-198408

W/EDIC & HAC

22680BWASHER(FOR PNEUMATIC BELLOWS)

main90201-08106i2H..HU40,50..GEN198210-198408

W/EDIC & HAC

main90201-08106iH..HU30197708-198411

W/HAC,EDIC & HAC

22686COVER, PNEUMATIC BELLOWS

main22686-48061iH..HU30197708-198411

W/HAC,EDIC & HAC

main22686-48061i2H..HU40,50..GEN198210-198408

W/EDIC & HAC

22691BALL, SPEED CONTROL

main90099-12010i2J..JU20197708-198411

22692SLIDER(FOR SPEED CONTROL)

main22692-56040iB,2B,3B..BU2#,3#198008-198111

sub22692-56041

main22692-56041iB,2B,3B..BU2#,3#,40198111-198411

main22692-77130i2J..JU20197708-198104

sub22692-56041

main22692-77131i2H..HU40,50198204-198408

sub22692-56041

22693GUIDE, BALL

main22693-77130iB,2B,3B..BU2#,3#,40197708-198411

22694BEARING SUB-ASSY

main22694-77130iH,2H..HU30,40,50197708-198411

22694ASPRING, SPEED CONTROL

main22449-48030iB,2B,3B..BU2#,3#,40197708-198411

22697ARM SUB-ASSY

main22697-56040iB,2B,3B..BU2#,3#197708-198111

sub22697-56041

main22697-56041iB,2B,3B..BU2#,3#,40198111-198411

main22697-77130i2J..JU20197708-198104

main22697-77131i2H..HU40,50198204-198408

22697ASEAL, OIL(FOR NO.3 LEVER)

main85613-31010iB,2B,3B..BU2#,3#,40197708-198411

22698PIN, SHIFTING

main22698-77130i2J..JU20197708-198111

main22698-77131i2H..HU40,50198111-198411

22699BRACKET SUB-ASSY, ADJUSTING

main22699-47060iH..HU30197708-198104

W/HAC

main22699-48060i2J..JU20197708-197904

W/HAC

main22699-56070i3B..BU32,36..GEN198104-198408

W/HAC

main22699-56070iB..BU20,25,30..GEN,GHI197708-198411

W/HAC,EDIC & HAC

main22699-58070i3B..BU32,36,40..GEN198104-198408

EDIC & HAC

main22699-68010i2H..HU40,50..GEN198210-198408

W/HAC

22703COVER, GOVERNOR

main22703-56040iB,2B,3B..BU2#,3#,40197708-198411

W/O HAC

main22703-68010i2H..HU40,50198204-198408

main22703-77130iH..HU30197708-198104

W/O HAC

sub22703-68010

main22703-77140iB,3B..BU2#,30,32,36,40..GEN,GHI197708-198411

W/HAC

2211977020WASHER, AIR BLEEDER NIPPLE

main22119-77020

2234876010BUSH, GEAR SHAFT

main22348-76010

2238646010SCREW(FOR INJECTION PUMP GOVERNOR)

main22386-46010

2243777130ARM, SPRING

main22437-77130

2245177123ADAPTER

main22451-77123

8871810030PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-10030

9009120605

main90091-20605

9009120606

main90091-20606

9009120804

main90091-20804

9009220582

main90092-20582

9009502002

main90095-02002

9009900936

main90099-00936

9009901440

main90099-01440

9009901441

main90099-01441

9009901445

main90099-01445

9009904526

main90099-04526

9009905056

main90099-05056

9009905133

main90099-05133

9009905137

main90099-05137

9009935023

main90099-35023

9009981012

main90099-81012

9009981013

main90099-81013

9020108106

main90201-08106

9040112006

main90401-12006

9040412018

main90404-12018

9040448031

main90404-48031

9040509015

main90405-09015

9040558030

main90405-58030

9451100500

main94511-00500

9461110600

main94611-10600

9541119960

main95411-19960

69 parts on this diagram · 3 diagrams in section
