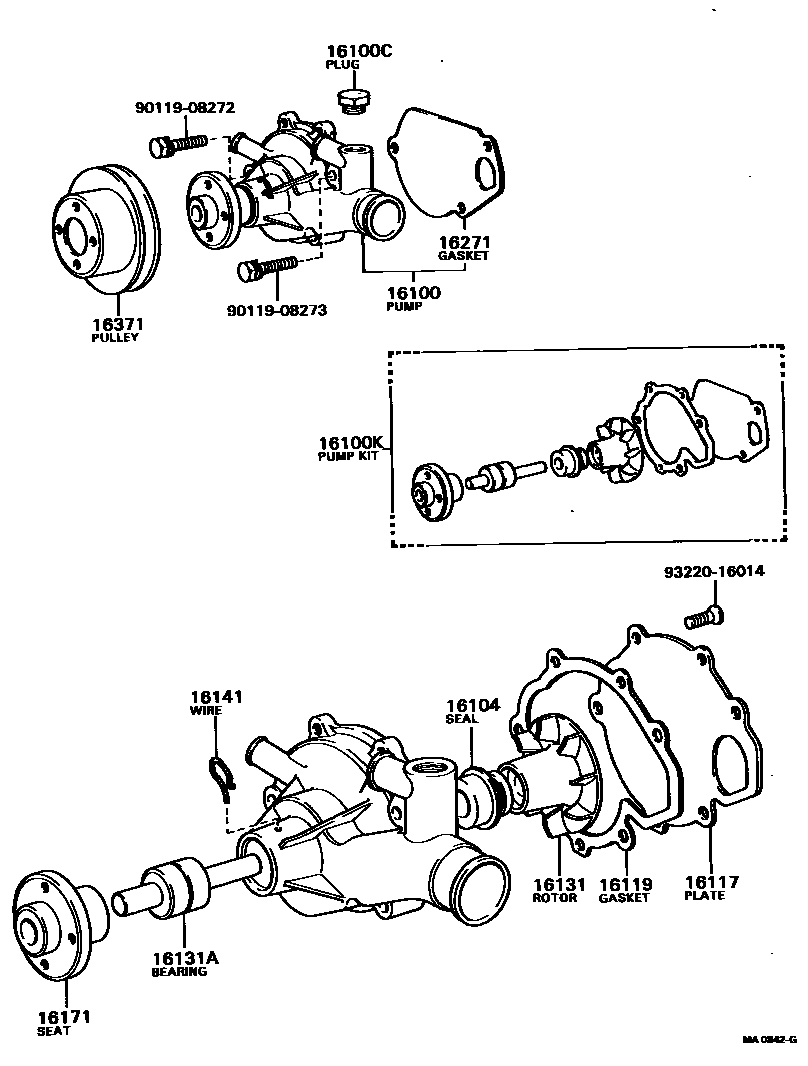

WATER PUMP

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0008 1 0009 1

16100PUMP ASSY, ENGINE WATER

main16100-49415i5R..RU2#,30..GEN197708-198408

sub16100-49416

main16100-49425i5R..RU20,30..RHD..T3..5H..WT..GEN..IV3197912-198408

SOUTH AFRICA SPEC,CAST IRON

sub16100-49426

main16100-49425i5R..RU2#,30..ARL197912-198408

CAST IRON

sub16100-49426

main16100-49525iH..HU30197708-197904

sub16100-49526

main16100-49526iH..HU30197904-198104

main16100-49535i2J..JU20197708-197904

W/COUPLING

sub16100-49536

main16100-49575i5R..RU20,30..EUR198208-198209

sub16100-49576

main16100-49576i5R..RU20,30..EUR198209-198408

sub16100-49577

main16100-49625iH..HU30197904-198104

W/O THERMOSTAT

main16100-59017iB..BU2#,30197708-197904

main16100-59055iB..BU2#,30197904-198008

main16100-59075iB..BU30..EUR198008-198411

sub16100-59076

main16100-59095iB..BU20..EUR198204-198408

sub16100-59096

main16100-69055i2H..HU40,50198204-198408

sub16100-69056

main16100-78010i1W..WU40,50198304-198408

sub16100-78011

16100CPLUG, W/HEAD TAPER SCREW

main15184-15010iB,2B,3B..BU2#,3#,40198008-198411

W/O HEATER

main90345-54002i2J..JU20197708-198012

W/O HEATER

main90345-54004i5R..RU2#,30..GEN197901-198101

W/O HEATER

sub90345-54005

main90345-54005i5R..RU2#,30..GEN198012-198408

W/O HEATER

main90345-54021iB..BU2#,30197708-197805

W/O HEATER

16100KPUMP KIT, WATER

main04161-48020i2J..JU20197708-197904

W/COUPLING

main04161-56020iB..BU2#,30197708-198008

sub04161-56021

main04161-56040iB,2B,3B..BU2#,3#,40..ARL,GEN,GHI198008-198411

sub04161-56041

main04161-56050iB..BU20..EUR198204-198408

sub04161-56051

main04161-68020i2H..HU40,50198204-198408

16104SEAL SET, WATER PUMP

main16104-41110i2J..JU20197708-198008

sub16104-41111

main16104-41111i5R..RU2#,30197911-198411

sub16104-15020

main16104-52010iH..HU30197708-197904

sub16104-52012

main16104-52011iH..HU30197904-198104

sub16104-52012

main16104-78010i1W..WU40,50198304-198408

sub16104-78011

16117PLATE, WATER PUMP

main16117-44010i5R..RU2#,30197708-198408

main16117-48010i2J..JU20197708-197904

main16117-56010iB..BU2#,30197708-198008

main16117-56040iB,2B,3B..BU2#,3#,40198008-198411

16119GASKET, WATER PUMP BODY

main16119-44010i5R..RU2#,30197708-198408

sub16119-44011

main16119-56010iB..BU2#,30197708-198008

main16119-56040iB,2B,3B..BU2#,3#,40198008-198411

sub16119-56041

16131ROTOR, WATER PUMP

main16131-44070i5R..RU2#,30197708-198408

main16131-47020iH..HU30197708-198104

main16131-48013i2J..JU20197708-197904

main16131-56020iB..BU20..EUR198204-198408

main16131-56030iB..BU30..EUR197708-198411

main16131-68010i2H..HU40,50198204-198408

main16131-78010i1W..WU40,50198304-198408

16131ABEARING, WATER PUMP

main16140-47024iH..HU30197708-198104

main90369-30005i2J..JU20197708-197904

W/COUPLING,RWF30-2R

sub90029-36837

main90369-30028i5R..RU2#,30197708-198411

WPB16112-2RS

main90369-30050i1W..WU40,50198304-198408

main90369-30063i5R..RU2#,30197805-198408

WPB16105BRS

main90369-35004i5R..RU20,30..EUR198208-198209

sub90369-35016

main90369-35015i2H..HU40,50198204-198408

sub90029-36840

main90369-35026i5R..RU20,30..EUR198209-198408

sub90029-36842

16141WIRE, WATER PUMP BEARING RETAINING

main16141-60010i5R..RU20,30..RHD..T3..5H..WT..GEN..IV3197912-198408

CAST IRON

main16141-60010iB,2B,3B..BU2#,3#,40197904-198411

main16141-68010i2H..HU40,50198204-198408

16171SEAT, WATER PUMP PULLEY

main16171-24030i5R..RU20,30..EUR198208-198408

main16171-24031i5R..RU2#,30..ARL,GEN197708-198408

main16171-38022i2J..JU20197708-197904

W/COUPLING

main16171-38022iB..BU20..EUR198204-198408

main16171-47011iH..HU30197708-198104

main16171-47021iH..HU30197904-198008

W/O THERMOSTAT

main16171-56010i2H..HU40,50197708-198411

main16171-78010i1W..WU40,50198304-198408

16271GASKET, WATER PUMP

main16271-44010i5R..RU2#,30197708-198101

sub16271-44020

main16271-44020i5R..RU2#,30198101-198408

sub16271-44021

main16271-47020iH..HU30197708-197901

sub16271-47021

main16271-47021iH..HU30197901-198104

main16271-48010i2J..JU20197708-197904

sub16271-48011

main16271-56012iB..BU2#,30197708-198008

main16271-56020iB,2B,3B..BU2#,3#,40198008-198411

sub16271-56030

main16271-68010i2H..HU40,50198204-198408

sub16271-68020

16371PULLEY, FAN

main16173-56020i2J..JU20197708-197904

W/COUPLING

main16173-78010i1W..WU40,50198304-198408

subS1617-32110

main16371-44010i5R..RU2#,30197708-198408

main16371-47011iH..HU30197708-198104

main16371-56010iB..BU2#,30197708-198008

main16371-56020iB,2B,3B..BU25,3#,40198008-198211

sub16371-56021

main16371-56021iB..BU20..ARL,GEN198211-198411

main16371-56030iB..BU20..EUR198204-198408

main16371-68020i2H..HU40,50198204-198408

9011908272

main90119-08272

9011908273

main90119-08273

9322016014

main93220-16014

15 parts on this diagram · 8 diagrams in section
