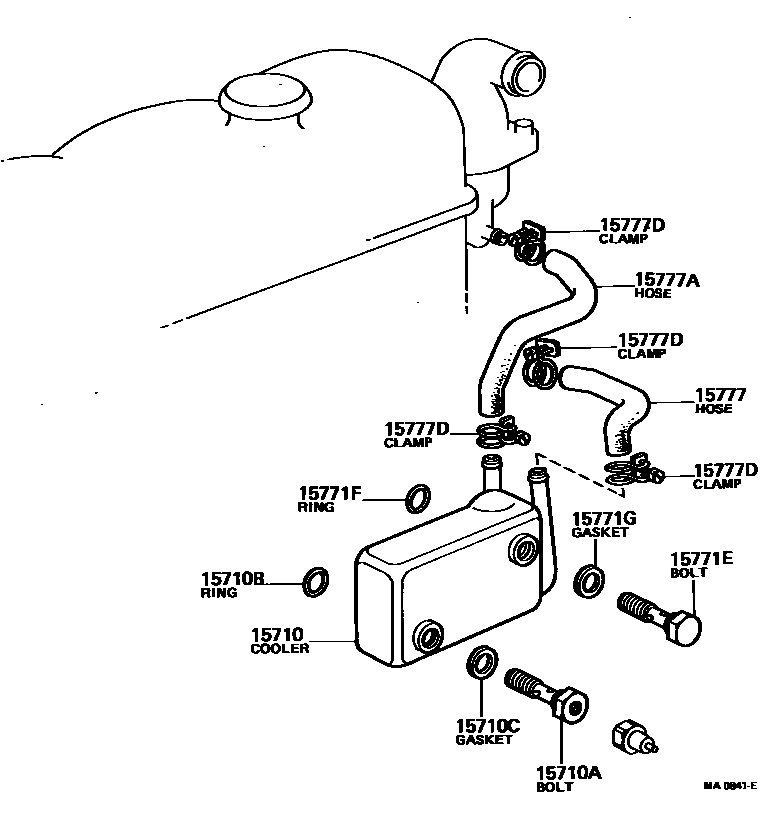

ENGINE OIL COOLER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

15710COOLER ASSY, OIL

main15710-48011i2J..JU20197708-197904

24V

sub15710-48020

main15710-48020i2J..JU20197708-198104

12V

main15710-56010iB..BU20,30..EUR197708-198008

sub15710-56020

main15710-56020iB..BU2#,30..ARL,GEN197708-198008

main15710-56030iB..BU20,30..EUR198008-198408

2 ELEMENT

sub15710-56031

main15710-56040i2B..BU31..CBU;B..BU20,25,30..ARL,GEN,GHI198008-198408

3 ELEMENT

sub15710-56041

main15710-56041iB..BU20,30198408-198411

main15710-56050i3B..BU32,36,40;2B,3B..BU23,31..IV3198104-198408

4 ELEMENT

sub15710-56051

main15710-68020i2H..HU40,50198204-198408

main15710-78010i1W..WU40,50198304-198408

15710ABOLT, UNION(FOR OIL COOLER)

main90401-18083i2J..JU20197708-198104

main90401-18084iB..BU2#,30197708-198008

15710BRING, O(FOR OIL COOLER)

main90301-20001iB,2B,3B..BU2#,3#,40198008-198411

main90301-21176i2J..JU20197708-198408

15710CGASKET(FOR OIL COOLER)

main15725-78010i1W..WU40,50198304-198408

sub15725-78020

main90430-18012iH..HU30197708-198104

main90923-05014iB,2B,3B..BU2#,3#,40198008-198411

sub90923-05018

15771EBOLT, UNION(FOR OIL PIPE)

main90401-18083i2J..JU20197708-198104

15771FRING, O

main90301-21176iH..HU30197708-198104

15771GGASKET

main90430-18012i2J..JU20197708-198104

15777HOSE, OIL COOLER

main15777-48010iH..HU30197708-198104

main15777-56010iB..BU2#,30197708-198008

15777AHOSE, OIL COOLER

main15777-47010iH..HU30197708-198104

main15778-56010iB..BU2#,30197708-198008

main90910-05067i2J..JU20197708-197904

15777DCLAMP OR CLIP, HOSE(FOR OIL COOLER HOSE)

main96112-10240iH..HU30197708-198104

main96112-10250iB..BU2#,30197708-198008

10 parts on this diagram · 7 diagrams in section
