ENGINE OIL PUMP

0001 1 0002 1 0003 1 0004 1 0006 1 0007 1

15104STRAINER SUB-ASSY, OIL

main15104-44011i5R..RU2#,30197708-198408

main15104-47020i2J..JU20197708-197904

main15104-47030iH..HU30197708-198104

main15104-56030iB..BU2#,30197708-198008

main15104-56040iB,2B,3B..BU2#,3#,40198008-198408

sub15104-56050

sub15193-56020

main15104-56050iB..BU20,30198408-198411

sub15104-56061

main15104-68011i2H..HU40,50198204-198408

main15401-78010i1W..WU40,50198304-198408

sub15401-78020

15104CGASKET(FOR OIL STRAINER)

main15149-68010i2H..HU40,50198204-198408

sub15149-68020

main15193-56010iB,2B,3B..BU2#,3#,40198109-198408

sub15149-56020

main15193-56020iB..BU20,30198408-198411

sub15149-56020

main15422-56010iB..BU2#,30197708-198008

sub15422-56020

main15422-56020iB,2B,3B..BU2#,3#198008-198109

sub15193-56010

15115COVER, OIL PUMP

main15012-44030i5R..RU2#,30197708-198408

main15115-47030iH..HU30197708-198104

main15115-48020i2J..JU20197708-197904

main15115-56020iB..BU2#,30197708-197811

main15115-56022iB..BU2#,30197811-198008

main15115-56030iB,2B,3B..BU2#,3#,40198008-198411

main15115-68010i2H..HU40,50198204-198408

15121GEAR, OIL PUMP DRIVE

main15121-38020iB..BU2#,30197708-197811

N=25

main15121-46011i2J..JU20197708-197904

N=7

main15121-47010iH..HU30197708-198104

N=7

main15121-56022iB..BU2#,30197811-198008

N=25

main15121-56030iB,2B,3B..BU2#,3#,40198008-198411

N=25

main15121-68010i2H..HU40,50198204-198205

sub15121-68011

main15121-68011i2H..HU40,50198205-198408

15122GEAR, OIL PUMP DRIVEN

main15122-38020iB..BU2#,30197708-197811

N=31

main15122-47010iH..HU30197708-198104

N=7

main15122-56022iB..BU2#,30197811-198008

N=31

main15122-56030iB,2B,3B..BU2#,3#,40198008-198411

N=31

main15122-60010i2J..JU20197708-197904

N=7

sub15122-43050

main15122-68010i2H..HU40,50198204-198205

sub15122-68011

main15122-68011i2H..HU40,50198205-198408

main15122-78010i1W..WU40,50198304-198408

15131VALVE, OIL PUMP RELIEF

main15131-22010iH..HU30197708-198408

main15131-24010i2J..JU20197708-198411

15132SPRING, OIL PUMP RELIEF VALVE

main15132-40010i5R..RU2#,30197708-198408

main15132-46010i2J..JU20197708-198104

main15132-76011iB,2B,3B..BU2#,3#,40197708-198411

15133PLUG, OIL PUMP RELIEF VALVE

main15133-20010iB,2B,3B..BU2#,3#,40197708-198411

main15133-24010i2J..JU20197708-197904

15134GASKET, OIL PUMP RELIEF VALVE

main15134-20010iB,2B,3B..BU2#,3#,40197708-198411

15195BRACKET, OIL STRAINER

main15195-56010iB..BU2#,30197708-198008

sub15783-56020

15403PIPE SUB-ASSY, OIL PUMP OUTLET

main15403-56030iB..BU2#,30197708-198008

main15403-56040iB,2B,3B..BU2#,3#,40198008-198408

main15403-56041iB..BU20,30198408-198411

main15403-68010i2H..HU40,50198204-198408

15403AUNION(FOR OIL PUMP OUTLET PIPE)

main90401-18002iB,2B,3B..BU2#,3#,40197708-198411

main90401-18007i2H..HU40,50198204-198408

15403BGASKET(FOR OIL PUMP OUTLET PIPE)

main90430-18012i2H..HU40,50197708-198411

15706PIPE SUB-ASSY, OIL, INJECTION PUMP OUTLET

main15077-56010iB,2B,3B..BU2#,3#,40197708-198411

15706AUNION(FOR INJECTION PUMP OUTLET PIPE)

main90044-01010iB,2B,3B..BU2#,3#,40197812-198411

main90401-10007iB..BU2#,30197708-197812

15706BGASKET(FOR INJECTION PUMP OUTLET PIPE)

main90044-30026iB,2B,3B..BU2#,3#,40197708-198411

9020112009

main90201-12009

9161160832

main91611-60832

9161160835

main91611-60835

9165160816

main91651-60816

9322016012

main93220-16012

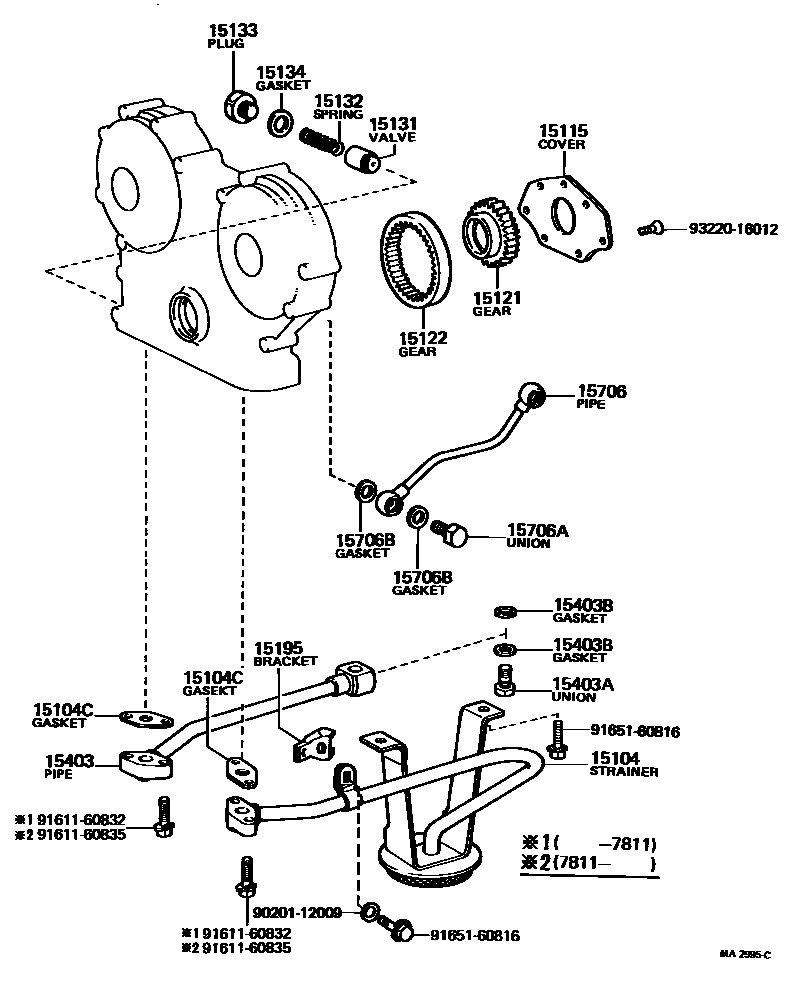

21 parts on this diagram · 6 diagrams in section
