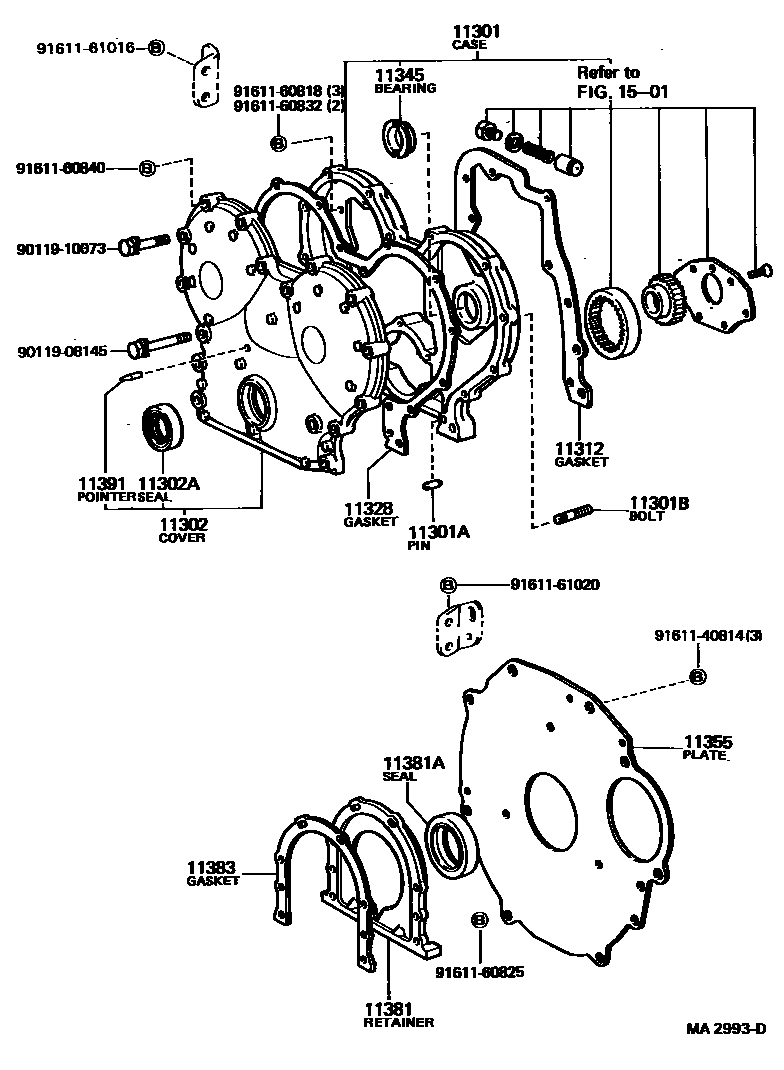

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1

11301CASE SUB-ASSY, TIMING GEAR

main11301-48013iH..HU30197708-198104

main11301-56020iB..BU2#,30197708-197811

sub11301-56022

main11301-56022iB..BU2#,30197811-198008

main11301-56030iB,2B,3B..BU2#,3#,40198008-198402

sub11301-56031

sub91611-60820

main11301-56031iB,2B,3B..BU2#,3#,40198402-198411

main11301-68010i2H..HU40,50198204-198408

sub11301-68011

11301APIN, STRAIGHT(FOR TIMING GEAR CASE)

main90250-08120iB,2B,3B..BU2#,3#,40197708-198411

L=18,OD=8,L=18,OD=8

11301BBOLT,STUD(FOR TIMING GEAR CASE)

main90116-10048iB,2B,3B..BU2#,3#,40197708-198411

L=40,S=19&12

sub90116-10093

main90116-10134iH..HU30197708-198104

L=39,S=10&20

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11302-47011iH..HU30197708-198104

main11302-48011i2J..JU20197708-197904

main11302-56020iB..BU2#,30197708-198008

main11302-56030iB,2B,3B..BU2#,3#,40198008-198411

main11321-44050i5R..RU2#,30197708-198408

main11321-68010i2H..HU40,50198204-198405

sub11321-68011

main11321-68011i2H..HU40,50198405-198408

main11321-78010i1W..WU40,50198304-198408

11302ASEAL, OIL(FOR TIMING CHAIN OR BELT COVER)

main90311-45002i5R..RU2#,30197905-198310

TC 45 68 12

main90311-45006i5R..RU2#,30198310-198408

TC 45 68 12

sub90311-45011

main90311-45069i5R..RU2#,30197708-197905

TC3 45 68 12

sub90311-45002

main90311-50002iB,2B,3B..BU2#,3#,40197708-198411

sub90311-50007

main90311-50006i2H..HU40,50198312-198408

main90311-50049i2H..HU40,50197708-198312

TC3 50 72 12

main90311-58005i1W..WU40,50198304-198408

sub90033-11030

11312GASKET, FRONT END PLATE

main11312-44011i5R..RU2#,30197708-198408

main11312-48011i2J..JU20197708-198104

sub11312-48012

main11312-56020iB..BU2#,30197708-198008

sub11312-56021

main11312-56030iB,2B,3B..BU2#,3#,40198008-198408

sub11312-56031

main11312-56031iB..BU20,30198408-198411

sub11312-56040

main11312-68010i2H..HU40,50198204-198408

sub11312-68020

main11312-78010i1W..WU40,50198304-198408

sub11312-78011

11328GASKET, TIMING GEAR OR CHAIN COVER

main11328-44010i5R..RU2#,30197708-198408

main11328-48010iH..HU30197708-198104

sub11328-48011

main11328-56020iB..BU2#,30197708-198008

sub11328-56021

main11328-56030iB,2B,3B..BU2#,3#,40198008-198411

sub11328-56031

main11328-68010i2H..HU40,50198204-198408

sub11328-68011

11345BEARING, INJECTION PUMP GEAR THRUST

main11345-48010iB,2B,3B..BU2#,3#,40197708-198411

11355PLATE, REAR END

main11355-44010i5R..RU2#,30197708-197808

sub11355-44011

main11355-44011i5R..RU2#,30197808-198408

main11355-48010i2J..JU20197708-197904

main11355-56030iB..BU2#,30197708-198003

sub11355-56050

main11355-56050iB,2B,3B..BU2#,3#,40198003-198301

sub11355-56051

main11355-56051iB,2B,3B..BU2#,3#,40198301-198403

sub11355-56052

main11355-56052iB,2B,3B..BU2#,3#,40198403-198411

main11355-68010i2H..HU40,50198204-198408

sub11355-68011

11381RETAINER, ENGINE REAR OIL SEAL

main11381-44011i5R..RU2#,30197708-198408

main11381-47012iH..HU30197708-198104

main11381-56020iB..BU2#,30197708-198008

main11381-56030iB,2B,3B..BU2#,3#,40198008-198408

sub11381-56031

sub91611-60820

main11381-56031iB..BU20,30198408-198411

sub11381-56033

sub90311-95008

main11381-68010i2H..HU40,50198204-198408

11381ASEAL, ENGINE REAR OIL

main90311-80002i5R..RU2#,30197807-198408

HTCY 80 100 12 13.5

main90311-80139i5R..RU2#,30197708-197807

HTC 80 100 12

sub90311-80001

main90311-95001iB,2B,3B..BU2#,3#,40197708-198411

HTC 95 115 12

main90311-95002i2H..HU40,50198312-198408

main90311-95091i2J..JU20197708-197809

TC3 95 115 12

sub90311-95001

main90311-99002i1W..WU40,50198304-198408

subSZ311-00004

11383GASKET, ENGINE REAR OIL SEAL RETAINER

main11383-44010i5R..RU2#,30197708-198408

main11383-47010i2H..HU40,50197708-198408

sub11383-68020

main11383-56020iB..BU2#,30197708-198008

sub11383-56030

main11383-56030iB,2B,3B..BU2#,3#,40198008-198408

sub11383-56040

main11383-56031iB..BU20,30198408-198411

sub11383-56040

11391POINTER, TIMING

main11391-44020i5R..RU2#,30197708-198408

main11391-46010i2J..JU20197708-198104

main11391-56020iB,2B,3B..BU2#,3#,40197708-198411

1501

9011908145

main90119-08145

9011910073

main90119-10073

9161140814

main91611-40814

9161160818

main91611-60818

9161160825

main91611-60825

9161160832

main91611-60832

9161160840

main91611-60840

9161161016

main91611-61016

9161161020

main91611-61020

23 parts on this diagram · 8 diagrams in section
