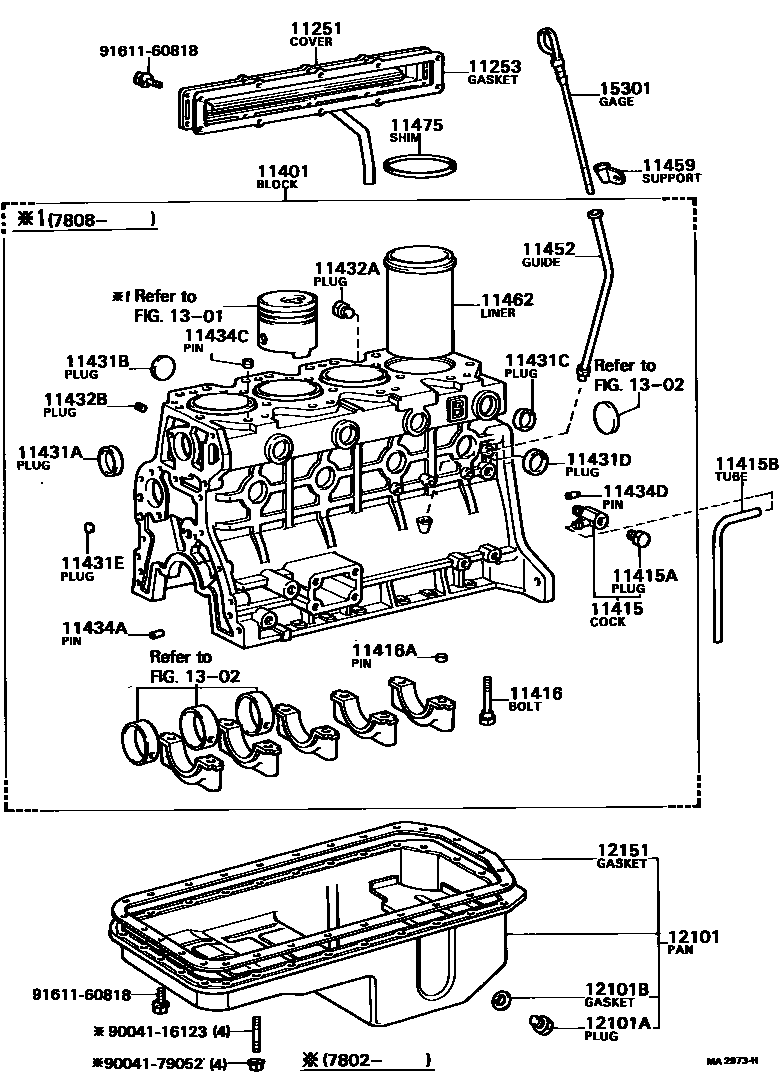

CYLINDER BLOCK
11251COVER, VALVE PUSH ROD
FR
FR
FR,CHINA SPEC
RR
RR
11401BLOCK SUB-ASSY, CYLINDER
sub11401-49198
sub11401-49199
sub11401-49216
sub11401-49217
sub11401-49227
CHINA SPEC
sub11401-59046
sub11401-59225
sub11401-59205
sub11401-59215
sub11401-59206
sub11401-59226
sub11410-78011
11415BHOSE(FOR DRAIN COCK)
11416BOLT(FOR CRANKSHAFT BEARING CAP SET)
*13-1.5PX78.5-20
*12-1.25PX75-22
*12-1.25PX77-22
11416APIN, RING(FOR CRANKSHAFT BEARING CAP SET)
L=7,OD=14.5
L=10,OD=15.5
L=10,OD=17.5
11431APLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)
OD=21
OD=50
OD=51
OD=35
11431BPLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)
OD=35,ID=12
OD=35,ID=14
OD=20
OD=35
OD=50
11431CPLUG, TIGHT, NO.3(FOR CYLINDER BLOCK)
OD=21
OD=27
OD=36
OD=30
OD=50
11431DPLUG, TIGHT, NO.4(FOR CYLINDER BLOCK)
OD=24
OD=26
OD=30
11431EPLUG, TIGHT, NO.5(FOR CYLINDER BLOCK)
OD=17
OD=21
OD=17
11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)
L=24,OD=8,L=24,OD=8
L=23,OD=8,L=23,OD=8
L=18,OD=8,L=18,OD=8
L=11,OD=11,L=11,OD=11
11434CPIN, STRAIGHT (FOR CYLINDER HEAD SET)
L=12,OD=6,L=12,OD=6
L=12,OD=6,FR,L=12,OD=6
L=16,OD=8,L=16,OD=8
L=15,OD=8,L=15,OD=8
L=15,OD=8,RR,L=15,OD=8
L=7,OD=14.5,L=14.5,OD=7
11434DPIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)
L=23,OD=8
L=18,OD=8,L=18,OD=8
L=11,OD=11,L=11,OD=11
11475SHIM, CYLINDER LINER
T=0.05
T=0.05
T=0.05
T=0.05
T=0.10
T=0.10
T=0.10
T=0.10
12101PAN SUB-ASSY, OIL
sub12101-49196
sub12101-49216
sub12101-49217
sub12101-59056
sub12101-59057
sub12101-59146
subS1211-12730
12101APLUG(FOR OIL PAN DRAIN)
OD=25
12101BGASKET(FOR OIL PAN DRAIN PLUG)
1301
1302
9004116123
main90041-16123
9004179052
main90041-79052
9161160818
main91611-60818
32 parts on this diagram · 7 diagrams in section
