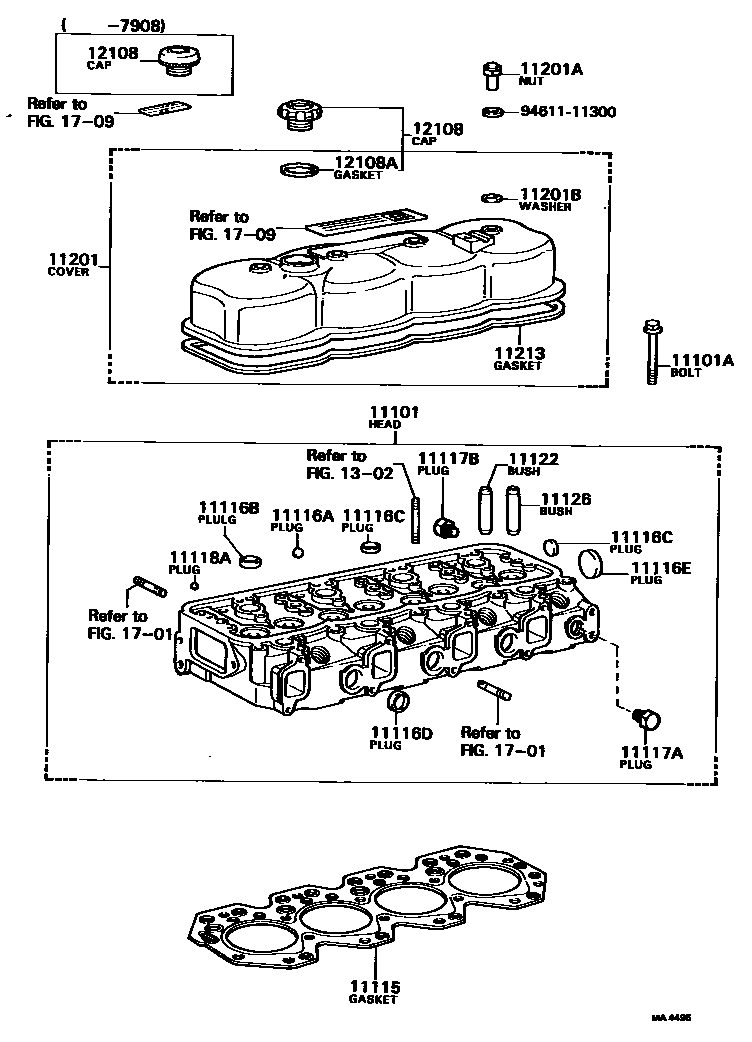

CYLINDER HEAD

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

11101HEAD SUB-ASSY, CYLINDER

main11101-49146i2J..JU20197708-197904

sub11101-48013

sub11115-48026

sub90116-08017

sub90116-08131

sub90345-54004

main11101-49166i5R..RU2#,30197708-197805

sub11101-49167

main11101-49167i5R..RU2#,30197805-198408

sub11101-44052

main11101-49175iH..HU30197708-198104

sub11101-47015

main11101-56032iB..BU20,25,30198401-198404

sub11101-56033

main11101-56033iB..BU20,25,30198404-198411

sub11101-56034

sub90201-14022

main11101-58012i2B,3B..BU23,31,32,36,40198401-198406

sub11101-58013

main11101-58013i2B,3B..BU23,31,32,36,40198406-198408

sub11101-58014

sub90201-14022

main11101-59045iB..BU2#,30197708-198008

sub11101-59046

main11101-59095i3B..BU32198104-198110

sub11101-59096

main11101-59096i3B..BU32,36,40;2B,3B..BU23,31..IV3198110-198401

sub11101-58012

sub90116-08123

sub90116-10048

sub90345-54005

sub92132-60822

sub94184-61000

main11101-59105iB..BU2#,30;2B..BU31..CBU198008-198110

sub11101-59106

main11101-59106iB..BU20,25,30;2B..BU31..CBU198110-198401

sub11101-56032

sub90116-08123

sub90116-10048

sub90345-54005

sub92132-60822

sub94184-61000

main11101-68011i2H..HU40,50198204-198408

sub11101-68012

sub87209-90B35

sub87245-90A19

sub87248-90A31

sub87248-90K18

sub90460-24039

main11110-78010i1W..WU40..LHD198304-198408

24V

sub11110-78030

main11110-78020i1W..WU40,50198304-198408

sub11110-78040

11101ABOLT(FOR CYLINDER HEAD SET)

main90105-12073i1W..WU40,50198304-198408

*12-1.5PX118-27

sub90031-01199

main90910-02027iH..HU30197708-198104

*13-1.5PX113-25

main90910-02046iB,2B,3B..BU2#,3#,40197708-198411

*12-1.25PX119-25

main90910-02048i5R..RU2#,30197708-198408

*12-1.25PX107-24

main90910-02049i2J..JU20197708-197904

*12-1.25PX110-25

main90910-02070i2H..HU40,50198204-198408

*12-1.25PX119-25

11115GASKET, CYLINDER HEAD

main11115-44024i5R..RU2#,30197708-198408

main11115-44035i5R..RU20,30..LHD..TR..5H197708-198408

CHINA SPEC

main11115-47014iH..HU30197708-198104

sub11115-47015

main11115-48025i2J..JU20197708-197904

sub11115-48026

main11115-56010iB..BU2#,30197708-198008

sub11115-56011

main11115-56020iB..BU2#,30;2B..BU31..CBU198008-198308

sub11115-56021

main11115-56021iB..BU2#,30198308-198310

sub11115-56022

main11115-56022iB..BU20,25,30198310-198408

sub11115-56120

main11115-56050iB..BU20,30198408-198411

sub11115-56130

main11115-58010i2B..BU31..IV3;3B..BU32,36,40198104-198308

sub11115-58011

main11115-58011i2B,3B..BU31,32,36,40198308-198310

sub11115-58012

main11115-58012i2B,3B..BU23,31,32,36,40198310-198408

sub11115-58040

main11115-68010i2H..HU40,50198204-198408

sub11115-68011

main11115-78010i1W..WU40,50198304-198408

sub11115-78011

11116APLUG, TIGHT, NO.1

main90331-11001iB..BU2#,30197708-198008

OD=10.5

main90331-14005i1W..WU40,50198304-198408

OD=14

main96411-11200iB,2B,3B..BU2#,3#,40198008-198411

OD=12

sub96411-41200

main96411-42000i2H..HU40,50198204-198408

OD=20

main96411-42500i5R..RU2#,30197708-198408

OD=25

main96411-43000iH..HU30197708-198104

OD=30

11116BPLUG, TIGHT, NO.2

main90331-22001i1W..WU40,50198304-198408

OD=22

main96411-12500iB,2B,3B..BU2#,3#,40197708-198411

OD=25

sub96411-42500

main96411-42500i2H..HU40,50197708-198408

OD=25

11116CPLUG, TIGHT, NO.3

main90331-21001iB,2B,3B..BU2#,3#,40197804-198411

OD=21

main90331-21039iH..HU30197708-198104

OD=21

main90331-24001i1W..WU40,50198304-198408

OD=24

main96411-43000i2H..HU40,50198204-198408

OD=30

11116DPLUG, TIGHT, NO.4

main90331-10049iH..HU30197708-198104

OD=10

main90331-26001i1W..WU40,50198304-198408

OD=26

main96411-12800iB,2B,3B..BU2#,3#,40197708-198411

OD=28

sub96411-42800

main96411-45000i2H..HU40,50198204-198408

OD=50

11116EPLUG, TIGHT, NO.5

main90331-30001i1W..WU40,50198304-198408

OD=30

main90331-40024iB,2B,3B..BU2#,3#,40197708-198411

OD=40

sub96411-44000

11117APLUG, W/HEAD TAPER SCREW, NO.1

main90345-54002iH..HU30197708-198005

main90345-54004i5R..RU2#,30197901-198101

sub90345-54005

main90345-54005i2H..HU40,50198005-198411

main90345-54021iB..BU2#,30197708-197805

11117BPLUG, W/HEAD TAPER SCREW, NO.2

main90345-54002iB..BU20,25,30197808-198408

W/O HEATER

main90345-54021iH..HU30197708-197904

W/O HEATER

11118APLUG, STRAIGHT, NO.1

main90043-34024iB..BU2#,30197911-198008

main90334-07020iB..BU2#,30197708-197911

L=3.5,OD=6.7

sub90334-08004

main90334-08004iH..HU30197708-198408

L=3.5,OD=6.7

11122BUSH, INTAKE VALVE GUIDE

main11122-44010i5R..RU2#,30197708-197805

STD

sub11122-44011

main11122-44011i5R..RU2#,30197805-198408

STD

main11122-46010iH..HU30197708-198104

STD

main11122-56020iB,2B,3B..BU2#,3#,40197708-198308

STD,STD

sub11122-56021

main11122-56021iB,2B,3B..BU2#,3#,40198308-198411

STD,STD

sub11122-56030

main11122-68010i2H..HU40,50198204-198408

STD,STD

main11122-78010i1W..WU40,50198304-198408

STD,STD

sub11122-89102

11126BUSH, EXHAUST VALVE GUIDE

main11122-44010i5R..RU2#,30197708-197805

STD

sub11122-44011

main11122-44011i5R..RU2#,30197805-198408

STD

main11122-56020iB,2B,3B..BU2#,3#,40197708-198308

STD,STD

sub11122-56021

main11122-56021iB,2B,3B..BU2#,3#,40198308-198411

STD,STD

sub11122-56030

main11122-68010i2H..HU40,50198204-198408

STD,STD

main11122-78010i1W..WU40,50198304-198408

STD,STD

sub11122-89102

main11126-46010iH..HU30197708-198104

STD

11201COVER SUB-ASSY, CYLINDER HEAD

main11201-49067i5R..RU2#,30197708-197810

sub11201-49069

main11201-49069i5R..RU2#,30197810-197911

sub11201-49175

main11201-49096i5R..RU20,30..LHD..5H..WT197708-197810

CHINA SPEC

sub11201-49097

main11201-49097i5R..RU20..LHD..TW1..5H197810-197911

CHINA SPEC

sub11201-49098

main11201-49098i5R..RU20,30..LHD..5H..WT197911-198408

CHINA SPEC

main11201-49125iH..HU30..GEN197708-198104

main11201-49135iH..HU30..ARL197708-198104

main11201-49175i5R..RU2#,30197911-198408

main11201-69055i2H..HU40,50198204-198408

sub11201-68011

sub11213-68010

sub12180-70010

sub90210-13001

main11211-49035i2J..JU20197708-197903

sub11211-49036

main11211-49036i2J..JU20197903-197904

main11211-56031iB..BU20,30198408-198411

main11211-59025iB..BU2#,30197708-197806

sub11211-59026

main11211-59026iB..BU2#,30197806-197904

sub11211-59027

main11211-59027iB..BU2#,30197904-197908

sub11211-59036

main11211-59036iB..BU2#,30197908-198008

sub11211-59037

main11211-59045iB,2B,3B..BU2#,3#,40198008-198408

sub11211-56031

sub11213-56012

sub11278-77010

sub11293-56012

sub11293-56040

sub11293-57010

sub11293-57030

sub11293-58010

sub12180-70010

sub90210-12001

main11211-78010i1W..WU40,50198304-198408

sub11211-E0240

11201ANUT, CAP(FOR CYLINDER HEAD COVER)

main11295-46010iB,2B,3B..BU2#,3#,40197708-198411

main90176-08014i2H..HU40,50198204-198408

11201BWASHER, SEAL(FOR CYLINDER HEAD COVER)

main90210-08007iH..HU30197708-198104

main90210-12001iB,2B,3B..BU2#,3#,40198008-198411

main90210-12002iB..BU2#,30197708-198008

main90210-13001i2H..HU40,50198204-198408

11213GASKET, CYLINDER HEAD COVER

main11213-44010i5R..RU2#,30197708-198011

sub11213-44020

main11213-44020i5R..RU2#,30198011-198408

main11213-47013iH..HU30197708-198104

main11213-48011i2J..JU20197708-197904

main11213-56010iB..BU2#,30197708-197806

sub11213-56011

main11213-56011iB,2B,3B..BU2#,3#,40197806-198408

sub11213-56012

main11213-56012iB..BU20,30198408-198411

main11213-68010i2H..HU40,50198204-198408

main11213-78010i1W..WU40,50198304-198408

subS1121-31550

12108CAP SUB-ASSY, OIL FILLER

main12180-13010i2H..HU40,50197908-198408

main12180-70010i2H..HU40,50198301-198411

sub12108-78010

main12181-12903i2J..JU20197708-197908

sub12181-12904

main12181-31020i5R..RU2#,30197708-197911

12108AGASKET(FOR OIL FILLER CAP)

main90430-37140iH..HU30197708-198411

1302

1701

1709

9461111300

main94611-11300

23 parts on this diagram · 7 diagrams in section
