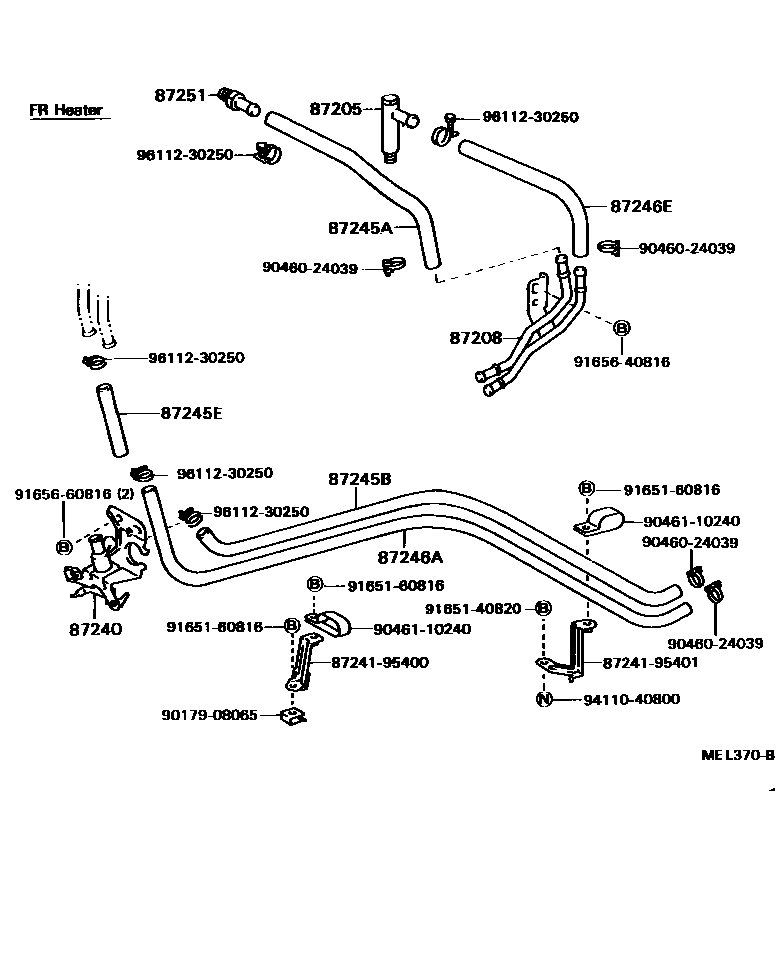

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1

87205JOINT OR UNION, FRONT HEATER HOSE THROUGH OR INLET VALVE

main87251-95400iBU7#,8#,9#198808-199505

87208PIPE SUB-ASSY, HEATER WATER

main87208-95402iBU76,88,96198808-199505

main87208-95409iBU84,89198808-199505

87240VALVE ASSY, HEATER WATER

main87240-95410iBU7#,8#,9#198808-199505

87245AHOSE, HEATER WATER, INLET A

main87245-95480iBU7#,88,9#198808-199505

L=430

main99556-30300iBU84,89198808-199505

L=300

87245BHOSE, HEATER WATER, INLET B

main87245-95465iBU79,92198808-199505

main99556-30980iBU84,89198808-199505

*H,L=980

sub99556-31000

87245EHOSE, HEATER WATER, INLET E

main99556-30135iBU7#,8#,9#198808-199505

*H,L=135

sub99556-30200

87246AHOSE, HEATER WATER, OUTLET A

main99556-30700iBU79,92198808-199505

L=700

sub99556-31000

main99556-30980iBU84198808-199505

*H,L=980

sub99556-31000

87246EHOSE, HEATER WATER, OUTLET E

main87245-95467iBU79,92198808-199505

main99556-30300iBU84,89198808-199505

L=300

87251JOINT OR UNION, WATER HOSE THROUGH

main87251-20160iBU76,8#,96198808-199009

main87251-30200iBU7#,8#,9#199009-199505

8724195400CONTROLLER, WATER VALVE

main87241-95400

8724195401CONTROLLER, WATER VALVE

main87241-95401

9017908065

main90179-08065

9046024039

main90460-24039

9046110240

main90461-10240

9165140820

main91651-40820

9165160816

main91651-60816

9165640816

main91656-40816

9165660816

main91656-60816

9411040800

main94110-40800

9611230250

main96112-30250

20 parts on this diagram · 2 diagrams in section
