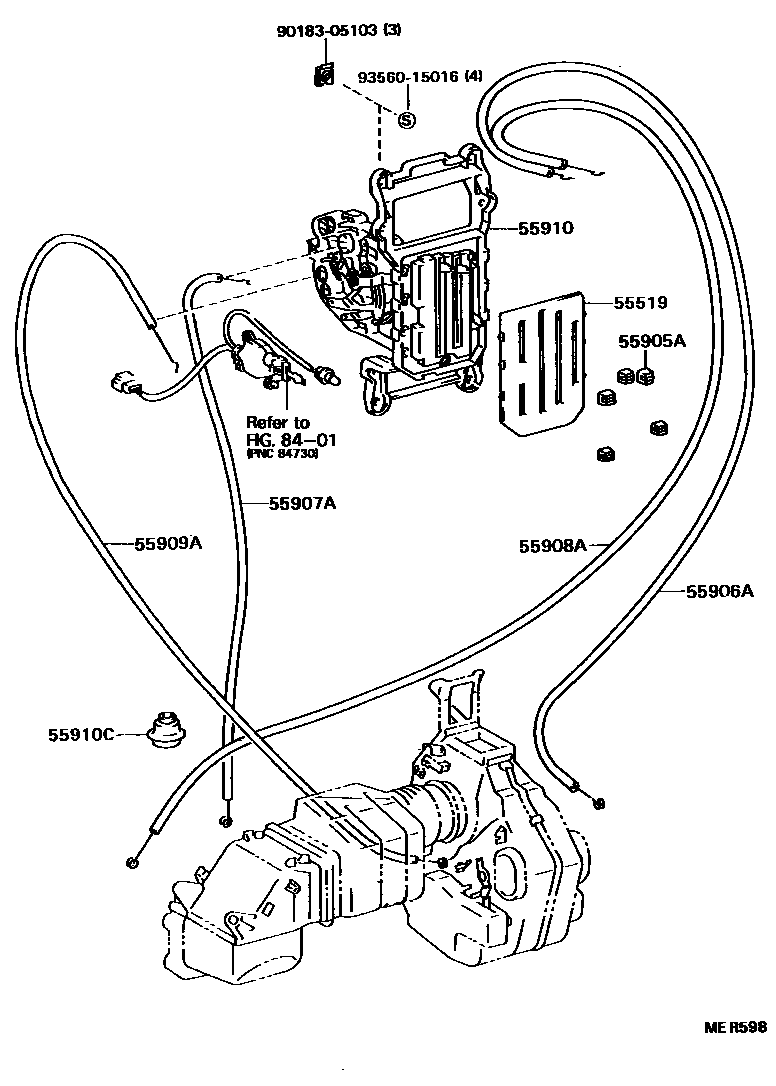

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1 0002 1 0003 1

55519PLATE, HEATER CONTROL NAME

main55519-95406iBU7#,8#,9#198808-199311

55905AKNOB, HEATER CONTROL

main55905-10110×3iBU7#,8#,9#198808-199311

WHITE

main55905-95707iBU7#,8#,9#198808-199311

BLUE

55906ACABLE SUB-ASSY, DEFROSTER DAMPER CONTROL

main55906-36050iBU84,89199110-199505

main55906-36060iBU7#,88,9#199110-199311

main55906-95406iBU84198808-199110

main55906-95407iBU76,88,96198808-199110

55907ACABLE SUB-ASSY, WATER VALVE CONTROL

main55907-36030iBU84,89199110-199505

main55907-36040iBU79,92199311-199505

main55907-95406iBU84198808-199110

main55907-95407iBU76,88,96198808-199110

55908ACABLE SUB-ASSY, AIR INLET DAMPER CONTROL

main55908-95402iBU84,89198808-199505

main55908-95403iBU7#,88,9#198808-199311

55909ACABLE SUB-ASSY, AIRMIX DAMPER CONTROL

main55909-95406iBU84,89198808-199505

main55909-95407iBU7#,88,9#198808-199311

55910CONTROL ASSY, HEATER OR BOOST VENTILATOR

main55910-36090iBU7#,8#,9#199110-199311

main55910-95409iBU76,8#,96198808-199110

sub55906-36030

sub55906-36040

sub55907-36010

sub55907-36020

55910CGROMMET(FOR HEATER CONTROL CABLE)

main90480-15001iBU7#,88,9#198808-199311

main90480-24215iBU84,89198808-199505

8401

9018305103

main90183-05103

9356015016

main93560-15016

11 parts on this diagram · 3 diagrams in section
