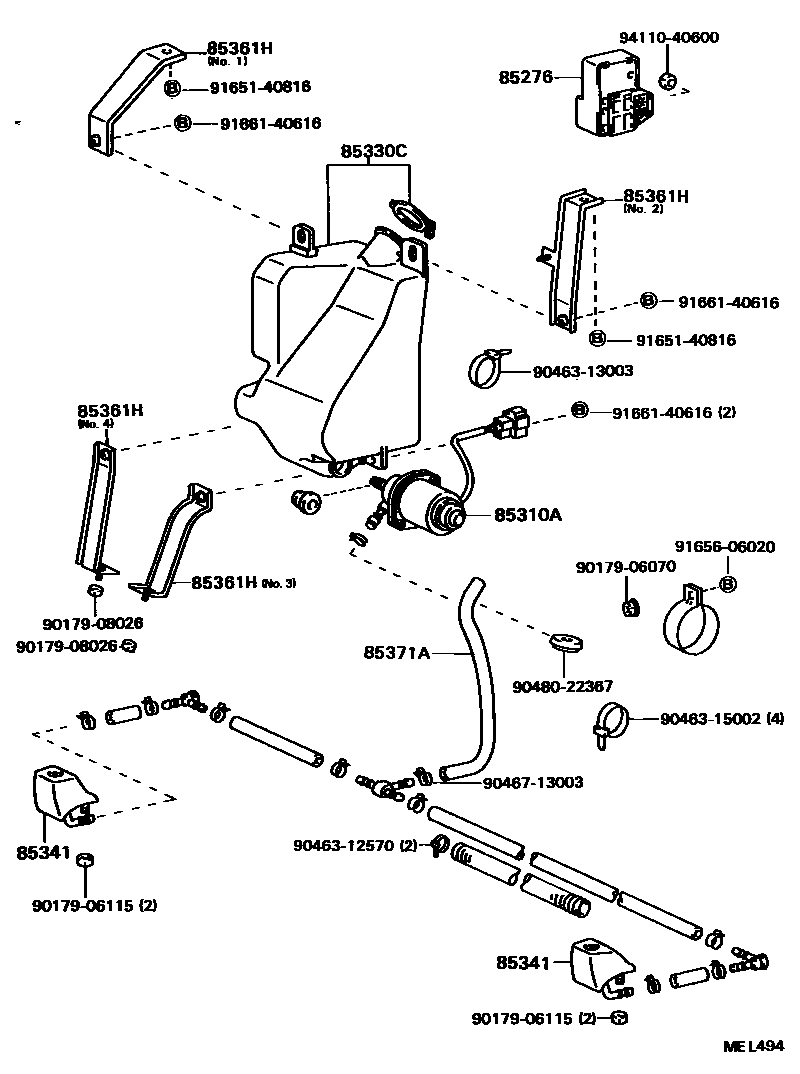

HEADLAMP CLEANER

85276RELAY, CLEANER CONTROL

main85276-90A00iBU7#,88,92198808-199505

85310AMOTOR AND PUMP ASSY, HEADLAMP CLEANER WASHER

main85310-95400iBU7#,88,92198808-199505

85330CJAR ASSY, HEADLAMP CLEANER WASHER

main85330-95400iBU7#,88,92198808-199505

85341NOZZLE, HEADLAMP CLEANER WASHER

main85035-95403iBU76,88198808-199210

sub85381-37010

main85381-37010iBU79,92199210-199505

85361HBRACKET, WASHER

main85361-95405iBU7#,88,92198808-199505

NO.2

main85361-95406iBU7#,88,92198808-199505

NO.3

main85361-95407iBU7#,88,92198808-199505

NO.4

main85361-95A13iBU7#,88,92198808-199505

NO.1

85371AHOSE, HEADLAMP CLEANER(FROM MOTOR TO JOINT)

main85375-22061iBU7#,88,92198808-199505

L=640

9017906070

main90179-06070

9017906115

main90179-06115

9017908026

main90179-08026

9046312570

main90463-12570

9046313003

main90463-13003

9046315002

main90463-15002

9046713003

main90467-13003

9048022367

main90480-22367

9165140816

main91651-40816

9165606020

main91656-06020

9166140616

main91661-40616

9411040600

main94110-40600

18 parts on this diagram · 1 diagram in section
