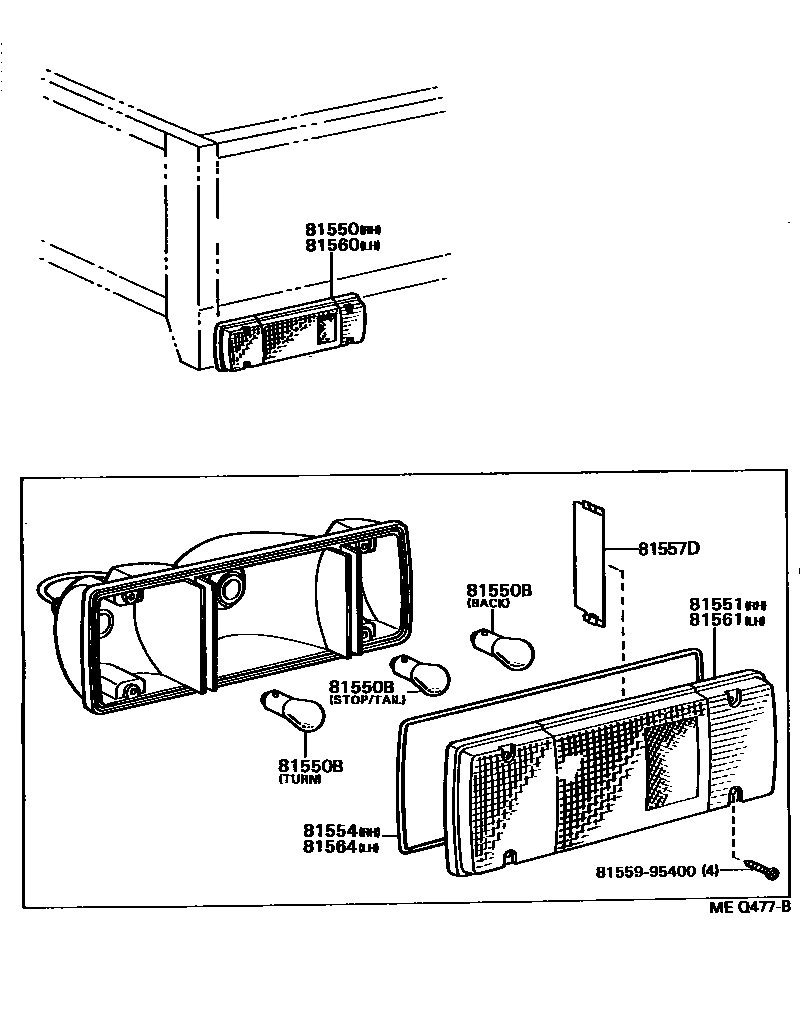

REAR COMBINATION LAMP

0001 1 0002 1

81550LAMP ASSY, REAR COMBINATION, RH

main81550-37010iBU79,9#199304-199501

main81550-37020iBU89199304-199501

main81550-37030iBU79,92199501-199505

main81550-37040iBU89199501-199505

main81550-95409iBU84198808-199007

main81550-95411iBU76,88,96198808-198910

main81550-95417iBU7#,88,9#198910-199304

main81550-95418iBU84,89199104-199304

81550BBULB(FOR REAR COMBINATION LAMP)

main90981-16014×4iBU7#,88,9#198808-199505

24V 21W,TURN

main90981-16015×2iBU7#,88,9#198808-199505

24V 21/5W,STOP/TAIL

main99132-11210×4iBU84,89198808-199505

12V 21W,TURN

main99132-21210×2iBU84,89198808-199505

12V 21/5W,STOP/TAIL

81551LENS, REAR COMBINATION LAMP, RH

main81551-60441iBU79,89,9#199304-199501

main81551-60442iBU79,89,92199501-199505

main81551-95400iBU84198808-199007

sub81554-60441

main81551-95403iBU76,88,96198808-198910

main81551-95417iBU7#,8#,9#199104-199304

81554GASKET, REAR COMBINATION LAMP BODY, RH

main81552-95400iBU76,8#,96198808-199007

81557DREFLECTOR, REAR COMBINATION LAMP

main81557-95403×2iBU84,89199104-199505

81560LAMP ASSY, REAR COMBINATION, LH

main81560-37030iBU79,9#199304-199501

main81560-37040iBU89199304-199501

main81560-37050iBU79,92199501-199505

main81560-37060iBU89199501-199505

main81560-95409iBU84198808-199007

main81560-95411iBU76,88,96198808-198910

main81560-95418iBU7#,88,9#198910-199304

main81560-95419iBU84,89199104-199304

81561LENS, REAR COMBINATION LAMP, LH

main81561-60371iBU79,89,9#199304-199501

main81561-60372iBU79,89,92199501-199505

main81561-95400iBU84198808-199007

sub81564-60371

main81561-95403iBU76,88,96198808-198910

main81561-95418iBU7#,8#,9#199104-199304

81564GASKET, REAR COMBINATION LAMP BODY, LH

main81552-95400iBU76,8#,96198808-199007

8155995400MOULDING, REAR COMBINATION LAMP, RH

main81559-95400

9 parts on this diagram · 2 diagrams in section
