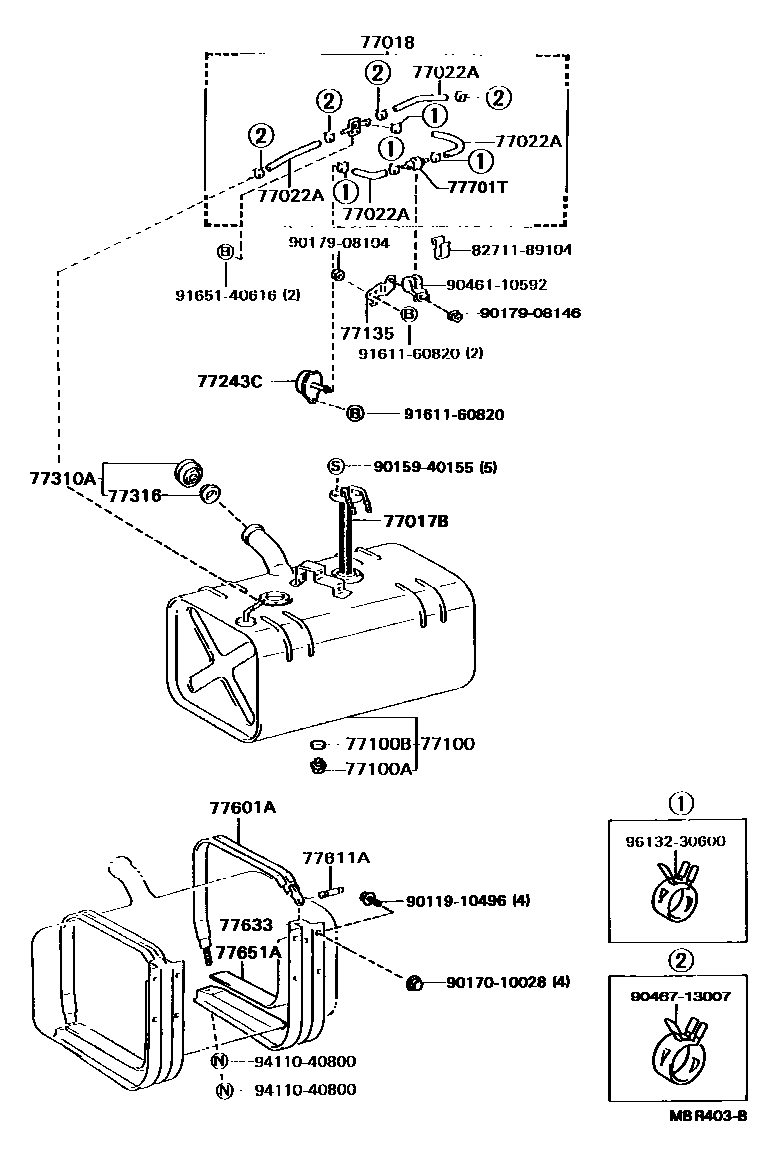

FUEL TANK & TUBE

0001 1 0002 1

77017BTUBE SUB-ASSY, FUEL TANK VENT

main77017-36330iBU7#,8#,9#¥6,300198808-199505

77018VALVE SUB-ASSY, FUEL VAPOUR SEPARATE

main77018-36161iBU7#,88,9#¥6,700198808-199505

main77018-36230iBU84,89¥2,730198808-199505

77022AHOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)

main95333-06030iBU7#,88,9#¥580198808-199505

L=300

sub95338-06030¥580

main95333-06100iBU7#,88,9#¥1,810198808-199505

L=1000

main95333-08030iBU7#,8#,9#¥660198808-199505

L=300

77100TANK ASSY, FUEL

main77001-3B100iBU84,89,96¥45,500198808-199505

sub77001-3B101¥45,500

main77001-3B110iBU7#,88,92¥45,100198808-199505

77100APLUG(FOR FUEL TANK)

main90105-12116iBU7#,8#,9#¥110198808-199505

77100BGASKET(FOR FUEL TANK)

main90430-12245iBU7#,8#,9#¥160198808-199505

77135BRACKET, CHECK VALVE

main77135-36030iBU7#,88,9#¥2,170198808-199505

77243CFILTER, FUEL TANK BREATHER

main77243-36010iBU7#,88,9#¥1,410198808-199505

77310ACAP ASSY, FUEL TANK

main77310-55080iBU7#,8#,9#¥2,320198808-199505

sub77310-60100¥1,530

77316GASKET, FUEL TANK CAP

main77316-27010iBU7#,8#,9#¥670198808-199505

77601ABAND SUB-ASSY, FUEL TANK, NO.1

main77601-36140iBU7#,8#,9#¥2,390198808-199505

sub77601-37030¥2,810

main77601-36150iBU7#,88,92¥2,920198808-199505

W(FUEL TANK LONG STAY)

sub77601-37040¥4,890

77611APIN (FOR FUEL TANK BAND)

main77629-36010iBU7#,8#,9#¥140198808-199505

77633STAY, FUEL TANK

main77501-36080iBU7#,88,92¥14,000198808-199505

W(FUEL TANK LONG STAY)

main77633-36090iBU7#,8#,9#¥4,510198808-199505

sub77633-36091¥4,550

77651ACUSHION, FUEL TANK, NO.1

main77651-36100iBU7#,8#,9#¥410198808-199505

77701TVALVE, CHECK (FOR MAIN FUEL TANK)

main90917-10067iBU7#,88,9#¥900198808-199505

8271189104WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-89104¥120

9011910496

main90119-10496¥200

9015940155

main90159-40155¥120

9017010028

main90170-10028¥140

9017908104

main90179-08104¥200

9017908146

main90179-08146¥180

9046110592

main90461-10592

9046713007

main90467-13007¥180

9161160820

main91611-60820¥200

9165140616

main91651-40616¥60

9411040800

main94110-40800¥120

9613230600

main96132-30600¥200

27 parts on this diagram · 2 diagrams in section
