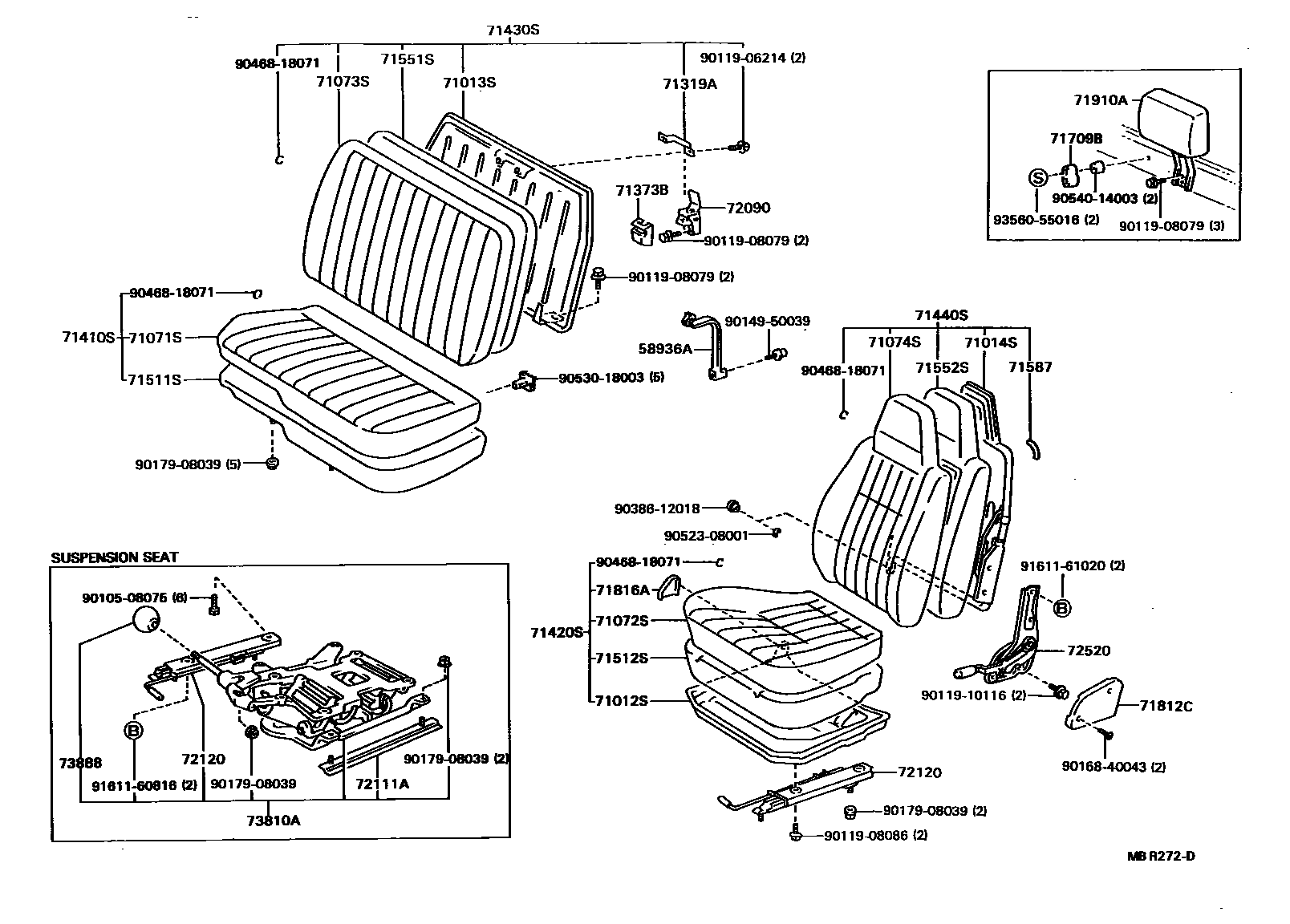

SEAT & SEAT TRACK

58936ABAND, ENGINE SERVICE HOLE COVER SUPPORT

main58930-95700-06iBU76,8#,96198808-199109

DARK BROWN,TRIM4#

sub58930-95700

main58930-95700-B0iBU7#,8#,9#199109-199505

GRAY,TRIM1#

sub58930-95700

71012SFRAME SUB-ASSY, FRONT SEAT CUSHION, LH

main71012-95412iBU7#,8#,9#198808-199505

main71012-95415iBU7#,88,9#198808-199505

W(SUSPENSION SEAT)

71013SFRAME SUB-ASSY, FRONT SEATBACK, RH

main71013-95415-01iBU7#,88,9#199109-199505

BLACK,TRIM1#

main71013-95415-01iBU76,88,96198808-199109

BLACK,TRIM4#

main71013-95416-01iBU84198808-199109

BLACK,TRIM4#

main71013-95416-01iBU84,89199109-199505

BLACK,TRIM1#

71014SFRAME SUB-ASSY, FRONT SEATBACK, LH

main71014-95422iBU7#,8#,9#198808-199505

main71014-95424iBU76,88198808-199505

W(SUSPENSION SEAT)

71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71071-37060-B1iBU84,89199109-199505

GRAY,TRIM1#

main71071-37070-B2iBU84,89199109-199505

W(FABRIC SEAT),GRAY,TRIM1#

main71071-37220-B2iBU7#,88,9#199109-199505

GRAY,TRIM1#

main71071-37230-B1iBU7#,88,9#199109-199505

W(FABRIC SEAT),GRAY,TRIM1#

main71071-95B08-06iBU84198808-199109

BROWN,TRIM4#

main71071-95B13-06iBU76,88,96198808-199109

BROWN,TRIM4#

sub71071-95B11

main71071-95B14-06iBU76,88,96198808-199109

W(FABRIC SEAT),BROWN,TRIM4#

sub71071-95B12

71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71072-37120-B1iBU7#,8#,9#199109-199505

GRAY,TRIM1#

main71072-37130-B1iBU7#,8#,9#199109-199505

W(FABRIC SEAT),GRAY,TRIM1#

main71072-37230-B1iBU7#,88,9#199109-199505

W(SUSPENSION SEAT),GRAY,TRIM1#

main71072-37260-B2iBU7#,88,9#199109-199505

W(FABRIC SEAT & SUSPENSION SEAT),GRAY,TRIM1#

main71072-95472-06iBU76,88,96198808-199109

BROWN,TRIM4#

sub71072-95472

main71072-95B21-06iBU76,88,96198808-199109

W(SUSPENSION SEAT),BROWN,TRIM4#

main71072-95B22-06iBU76,88,96198808-199109

W(FABRIC SEAT & SUSPENSION SEAT),DARK BROWN,TRIM4#

main71072-95B26-06iBU84198808-199109

BROWN,TRIM4#

main71072-95B27-06iBU76,88,96198808-199109

W(FABRIC SEAT),BROWN,TRIM4#

71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71073-37050-B1iBU84,89199109-199505

W(FABRIC SEAT),GRAY,TRIM1#

main71073-37060-B1iBU84,89199109-199505

GRAY,TRIM1#

main71073-37240-B1iBU7#,88,9#199109-199505

GRAY,TRIM1#

main71073-37250-B1iBU7#,88,9#199109-199505

W(FABRIC SEAT),GRAY,TRIM1#

main71073-95B01-06iBU76,88,96198808-199109

BROWN,TRIM4#

sub71073-95B02

main71073-95B06-06iBU84198808-199109

BROWN,TRIM4#

sub71073-95B04

71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71074-37110-B1iBU84,89199109-199505

W(FABRIC SEAT),GRAY,TRIM1#

main71074-37130-B1iBU84,89199109-199505

GRAY,TRIM1#

main71074-37230-B1iBU7#,88,9#199109-199505

W(FABRIC SEAT & SUSPENSION SEAT),GRAY,TRIM1#

main71074-37270-B1iBU7#,88,9#199109-199505

W(FABRIC SEAT),GRAY,TRIM1#

main71074-37290-B1iBU7#,88,9#199109-199505

GRAY,TRIM1#

main71074-37320-B1iBU7#,88,9#199109-199505

W(SUSPENSION SEAT),GRAY,TRIM1#

main71074-95B43-06iBU76,88,96198808-199109

BROWN,TRIM4#

sub71074-95B35

main71074-95B55-06iBU84198808-199109

BROWN,TRIM4#

sub71074-95B35

main71074-95B69-06iBU76,88,96198808-199109

W(SUSPENSION SEAT),BROWN,TRIM4#

sub71073-95476

main71074-95B70-06iBU76,88,96198808-199109

W(FABRIC SEAT & SUSPENSION SEAT),DARK BROWN,TRIM4#

71319ASTRIKER, FRONT SEATBACK

main71319-95404iBU84,89198808-199505

main71319-95405iBU7#,88,9#198808-199505

71373BCOVER, FRONT SEATBACK LOCK

main71373-95400-06iBU76,8#,96198808-199109

BROWN,TRIM4#

sub71373-95400

main71373-95400-B0iBU7#,8#,9#199109-199505

GRAY,TRIM1#

sub71373-95400

71410SCUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

main71410-37080-B0iBU84,89199109-199505

GRAY,TRIM1#

main71410-37090-B0iBU84,89199109-199505

W(FABRIC SEAT),GRAY,TRIM1#

main71410-37240-B0iBU7#,88,9#199109-199505

GRAY,TRIM1#

main71410-37250-B0iBU7#,88,9#199109-199505

W(FABRIC SEAT),GRAY,TRIM1#

main71410-95484-06iBU84198808-199109

BROWN,TRIM4#

sub71410-95482

main71410-95489-06iBU76,88,96198808-199109

BROWN,TRIM4#

main71410-95B00-06iBU76,88,96198808-199109

W(FABRIC SEAT),BROWN,TRIM4#

71420SCUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)

main71420-37120-B0iBU7#,8#,9#199109-199505

GRAY,TRIM1#

main71420-37130-B0iBU7#,8#,9#199109-199505

W(FABRIC SEAT),GRAY,TRIM1#

main71420-37260-B0iBU7#,88,9#199109-199505

W(SUSPENSION SEAT),GRAY,TRIM1#

main71420-37270-B0iBU7#,88,9#199109-199505

W(FABRIC SEAT & SUSPENSION SEAT),GRAY,TRIM1#

main71420-95489-06iBU76,88,96198808-199109

BROWN,TRIM4#

main71420-95B00-06iBU76,88198808-199109

W(SUSPENSION SEAT),BROWN,TRIM4#

main71420-95B01-06iBU84198808-199109

BROWN,TRIM4#

main71420-95B11-06iBU76,88,96198808-199109

W(FABRIC SEAT & SUSPENSION SEAT),DARK BROWN,TRIM4#

main71420-95B13-06iBU76,88,96198808-199109

W(FABRIC SEAT),BROWN,TRIM4#

71430SBACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

main71430-37050-B0iBU84,89199109-199505

W(FABRIC SEAT),GRAY,TRIM1#

main71430-37060-B0iBU84,89199109-199505

GRAY,TRIM1#

main71430-37240-B0iBU7#,88,9#199109-199505

GRAY,TRIM1#

main71430-37250-B0iBU7#,88,9#199109-199505

W(FABRIC SEAT),GRAY,TRIM1#

main71430-95480-06iBU76,88,96198808-199109

BROWN,TRIM4#

main71430-95482-06iBU84198808-199109

BROWN,TRIM4#

71440SBACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)

main71440-37120-B0iBU84,89199109-199505

W(FABRIC SEAT),GRAY,TRIM1#

main71440-37140-B0iBU84,89199109-199505

GRAY,TRIM1#

main71440-37250-B0iBU7#,88,9#199109-199505

W(FABRIC SEAT & SUSPENSION SEAT),GRAY,TRIM1#

main71440-37290-B0iBU7#,88,9#199109-199505

W(FABRIC SEAT),GRAY,TRIM1#

main71440-37310-B0iBU7#,88,9#199109-199505

GRAY,TRIM1#

main71440-37340-B0iBU7#,88,9#199109-199505

W(SUSPENSION SEAT),GRAY,TRIM1#

main71440-95B24-06iBU76,88,96198808-199109

BROWN,TRIM4#

main71440-95B37-06iBU84198808-199109

BROWN,TRIM4#

main71440-95B52-06iBU76,88198808-199109

W(SUSPENSION SEAT),BROWN,TRIM4#

main71440-95B53-06iBU76,88198808-199109

W(FABRIC SEAT & SUSPENSION SEAT),DARK BROWN,TRIM4#

71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71501-95400iBU84,89198808-199505

main71501-95401iBU7#,88,9#198808-199505

71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

main71511-95402iBU7#,8#,9#198808-199505

main71512-95405iBU76,88198808-199505

W(SUSPENSION SEAT)

71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71552-95403iBU84,89198808-199505

main71552-95405iBU76,88198808-199109

W(SUSPENSION SEAT)

main71552-95405iBU7#,88,9#198808-199505

71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71551-95404iBU76,88,96198808-199109

W(SUSPENSION SEAT)

main71551-95404iBU7#,8#,9#198808-199505

71587PROTECTOR, FRONT SEATBACK EDGE

main71587-95J00iBU76,88198808-199505

71709BCUSHION SUB-ASSY, SEAT SUPPORT

main71709-95400iBU84,89198808-199310

main71709-95402iBU7#,88,9#198808-199505

71812CCOVER, RECLINING ADJUSTER, LH

main71812-95400-06iBU76,8#,96198808-199109

BROWN,TRIM4#

sub71812-95400

main71812-95400-B0iBU7#,8#,9#199109-199505

GRAY,TRIM1#

sub71812-95400

main71812-95J00-16iBU76,88,96198808-199109

W(SUSPENSION SEAT),BROWN,TRIM4#

sub71812-95J00

main71812-95J00-B0iBU7#,88,9#199109-199505

W(SUSPENSION SEAT),GRAY,TRIM1#

sub71812-95J00

71816ACOVER, FRONT SEAT CUSHION HINGE, LH

main71816-95J00-16iBU76,8#,96198808-199109

BROWN,TRIM4#

sub71816-95J00

main71816-95J00-B0iBU7#,8#,9#199109-199505

GRAY,TRIM1#

sub71816-95J00

71910AHEADREST ASSY, FRONT SEAT

main71910-37010-B0iBU84199109-199205

GRAY,TRIM1#

sub71910-37010

main71910-37010-B1iBU84199205-199210

GRAY,TRIM1#

sub71910-37010

main71910-37030-B1iBU76,88199109-199210

GRAY,TRIM1#

main71910-37060-B2iBU89199210-199505

GRAY,TRIM1#

main71910-37070-B1iBU79,9#199210-199505

GRAY,TRIM1#

sub71910-37070

main71910-95401-06iBU84198808-199109

BROWN,TRIM4#

sub71910-37010

main71910-95403-06iBU76,88,96198808-199109

BROWN,TRIM4#

sub71910-37030

72090LOCK ASSY, FRONT SEATBACK

main72090-95400-06iBU76,8#,96198808-199109

BROWN,TRIM4#

sub72090-95400

main72090-95400-B0iBU7#,8#,9#199109-199505

GRAY,TRIM1#

sub72090-95400

72111ARAIL, FRONT INNER SEAT TRACK, UPPER

main72113-95403iBU76,88198808-199505

72120TRACK ASSY, FRONT SEAT, OUTER LH

main72120-95408iBU7#,8#,9#198808-199505

sub72120-37010

main72120-95A00iBU7#,88,9#198808-199505

W(SUSPENSION SEAT)

sub72120-37010

72520ADJUSTER ASSY, RECLINING SEATBACK, LH

main72520-95402-06iBU76,8#,96198808-199109

BROWN,TRIM4#

main72520-95402-B0iBU7#,8#,9#199109-199505

GRAY,TRIM1#

main72520-95A05-06iBU76,88198808-199109

W(SUSPENSION SEAT),BROWN,TRIM4#

sub72520-95A05

main72520-95A05-B0iBU7#,88,9#199109-199505

W(SUSPENSION SEAT),GRAY,TRIM1#

sub72520-95A05

73810ASUSPENSION ASSY, SEAT, LH

main73810-95400iBU76,88198808-199505

73888HANDLE, SEAT SUSPENSION CONTROL

main73888-95401iBU76,88198808-199505

9010508075

main90105-08075

9011906214

main90119-06214

9011908079

main90119-08079

9011908086

main90119-08086

9011910116

main90119-10116

9014950039

main90149-50039

9016840043

main90168-40043

9017908039

main90179-08039

9038612018

main90386-12018

9046818071

main90468-18071

9052308001

main90523-08001

9053018003

main90530-18003

9054014003

main90540-14003

9161160816

main91611-60816

9161161020

main91611-61020

9356055016

main93560-55016

45 parts on this diagram · 1 diagram in section
