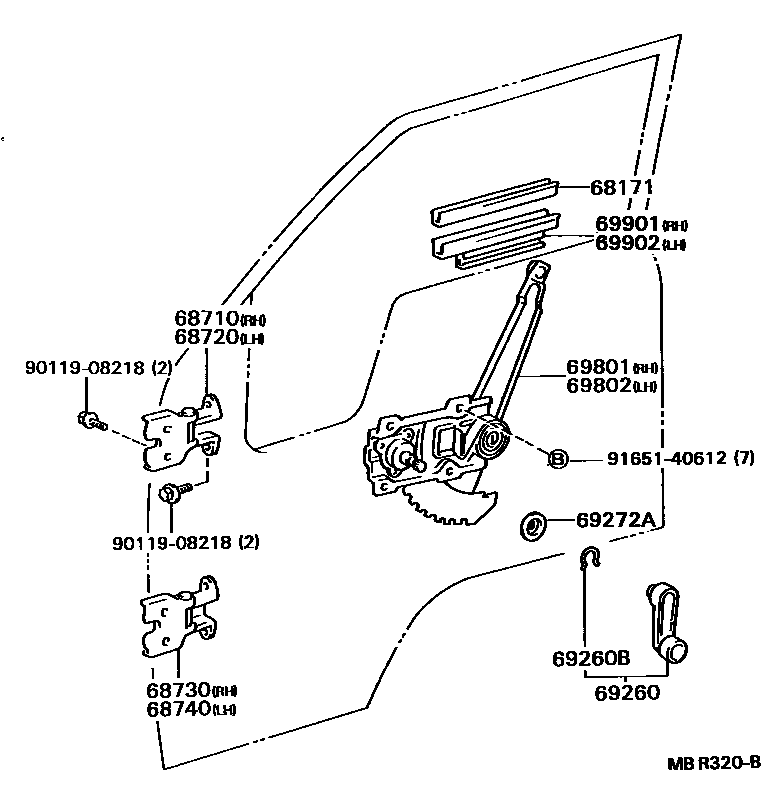

FRONT DOOR WINDOW REGULATOR & HINGE

68171WEATHERSTRIP, FRONT DOOR GLASS CHANNEL

main68173-22010iBU7#,8#,9#198808-199505

sub69971-95110

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-95403iBU7#,8#,9#198808-199505

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68710-95403iBU7#,8#,9#198808-199505

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68710-95403iBU7#,8#,9#198808-199505

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68710-95403iBU7#,8#,9#198808-199505

69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR

main69260-10040-06iBU76,8#,96198808-199109

BROWN,TRIM4#

sub69260-10040

sub69260-16010

main69260-10040-08iBU7#,8#,9#199109-199308

BLUISH GRAY,TRIM1#

sub69260-10040

sub69260-16010

main69260-10040-B1iBU79,89,9#199308-199505

BLUISH GRAY,TRIM1#

sub69260-10040

sub69260-16010

69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)

main90520-01002iBU7#,8#,9#198808-199505

sub90520-01274

69272APLATE, DOOR WINDOW REGULATOR HANDLE

main69272-30010-08iBU76,8#,96198808-199109

NATURAL WHITE,TRIM4#

sub69272-30010

main69272-30010-08iBU7#,8#,9#199109-199505

NATURAL WHITE,TRIM1#

sub69272-30010

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69810-95407iBU7#,8#,9#198808-199505

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69820-95409iBU7#,8#,9#198808-199505

69901CHANNEL SUB-ASSY, FRONT DOOR GLASS, RH

main69901-95404iBU7#,8#,9#198808-199505

69902CHANNEL SUB-ASSY, FRONT DOOR GLASS, LH

main69901-95404iBU7#,8#,9#198808-199505

9011908218

main90119-08218

9165140612

main91651-40612

14 parts on this diagram · 1 diagram in section
