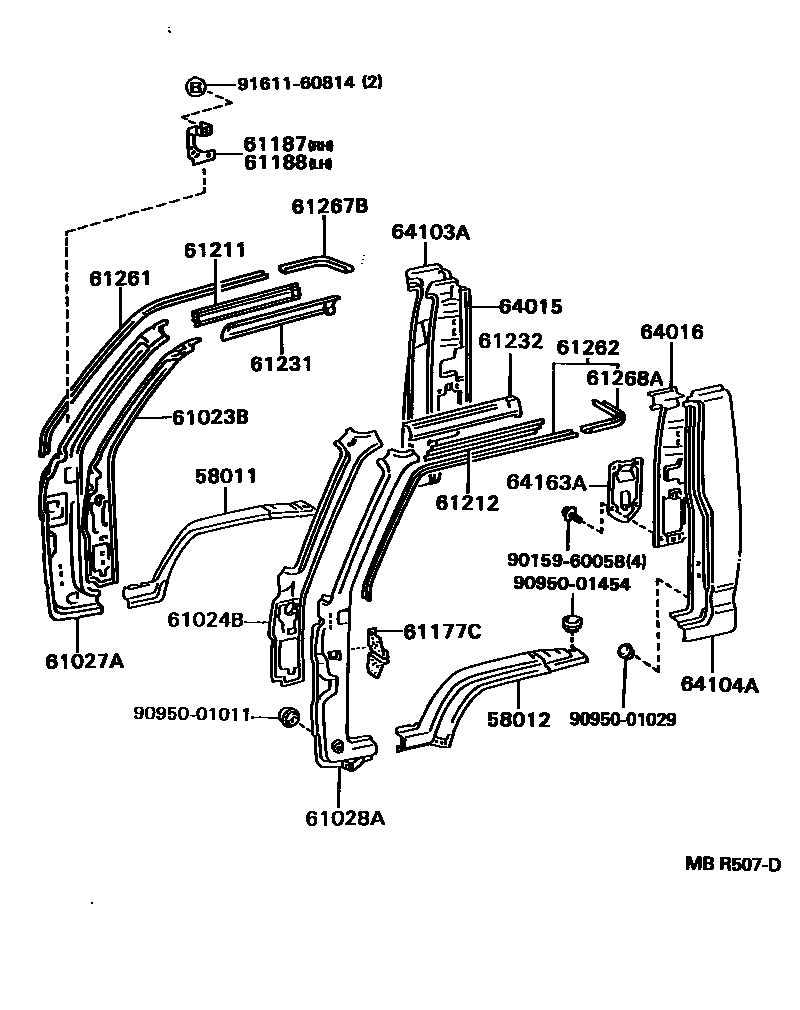

SIDE MEMBER

58011PANEL SUB-ASSY, FRONT FLOOR SIDE, RH

main58011-95444iBU7#,8#,9#198808-199505

sub58011-37010

58012PANEL SUB-ASSY, FRONT FLOOR SIDE, LH

main58012-95440iBU7#,8#,9#198808-199505

sub58012-37010

61023BPILLAR SUB-ASSY, FRONT BODY, INNER RH

main61023-95401iBU7#,8#,9#198808-199505

61024BPILLAR SUB-ASSY, FRONT BODY, INNER LH

main61024-95401iBU7#,8#,9#198808-199505

61027APILLAR SUB-ASSY, FRONT BODY, OUTER RH

main61027-37020iBU7#,8#,9#198911-199505

main61027-95401iBU76,8#,96198808-198911

61028APILLAR SUB-ASSY, FRONT BODY, OUTER LH

main61028-37040iBU79,89,9#199301-199505

main61028-95400iBU84,96198808-198910

sub61028-37030

main61028-95401iBU76,88198808-198910

W(RADIO)

61177CBRACKET, DOOR CHECK ARM

main61177-37010iBU7#,8#,9#199002-199505

61187BRACKET, FRONT PILLAR DOOR HINGE COVER, RH

main61187-95400iBU96198910-199310

61188BRACKET, FRONT PILLAR DOOR HINGE COVER, LH

main61188-95400iBU96198910-199310

61211RAIL, ROOF SIDE, OUTER RH

main61211-95403iBU7#,8#,9#198808-199505

61212RAIL, ROOF SIDE, OUTER LH

main61212-95403iBU7#,8#,9#198808-199505

61231RAIL, ROOF SIDE, INNER RH

main61231-95406iBU7#,8#,9#198808-199505

61232RAIL, ROOF SIDE, INNER LH

main61232-95405iBU7#,8#,9#198808-199505

sub61232-95406

61261CHANNEL, ROOF DRIP, RH

main61261-95407iBU7#,8#,9#198808-199505

61262CHANNEL, ROOF DRIP, LH

main61262-95407iBU7#,8#,9#198808-199505

61267BCHANNEL, ROOF DRIP SIDE,REAR RH

main61267-95400iBU7#,8#,9#198808-199505

61268ACHANNEL, ROOF DRIP SIDE, REAR LH

main61268-95400iBU7#,8#,9#198808-199505

64015PANEL SUB-ASSY, BACK CORNER, INNER RH

main64015-95401iBU84,89198808-199505

sub64015-95411

main64015-95403iBU7#,88,9#198808-199505

64016PANEL SUB-ASSY, BACK CORNER, INNER LH

main64016-95401iBU84,89198808-199505

sub64016-95415

main64016-95403iBU7#,88,9#198808-199505

64103APANEL SUB-ASSY, BACK CORNER, OUTER RH

main64103-95403iBU84,89198808-199505

main64103-95404iBU7#,88,9#198808-199505

64104APANEL SUB-ASSY, BACK CORNER, OUTER LH

main64104-95403iBU84,89198808-199505

main64104-95404iBU7#,88,9#198808-199505

64163ACOVER, BACK CORNER, INNER

main64163-95410-06×2iBU76,84,96198808-199109

BROWN,TRIM4#

sub64163-95901

main64163-95410-13×2iBU7#,84,89,9#199109-199505

GRAY,TRIM1#

sub64163-95901

9015960058

main90159-60058

9095001011

main90950-01011

9095001029

main90950-01029

9095001454

main90950-01454

9161160814

main91611-60814

27 parts on this diagram · 1 diagram in section
