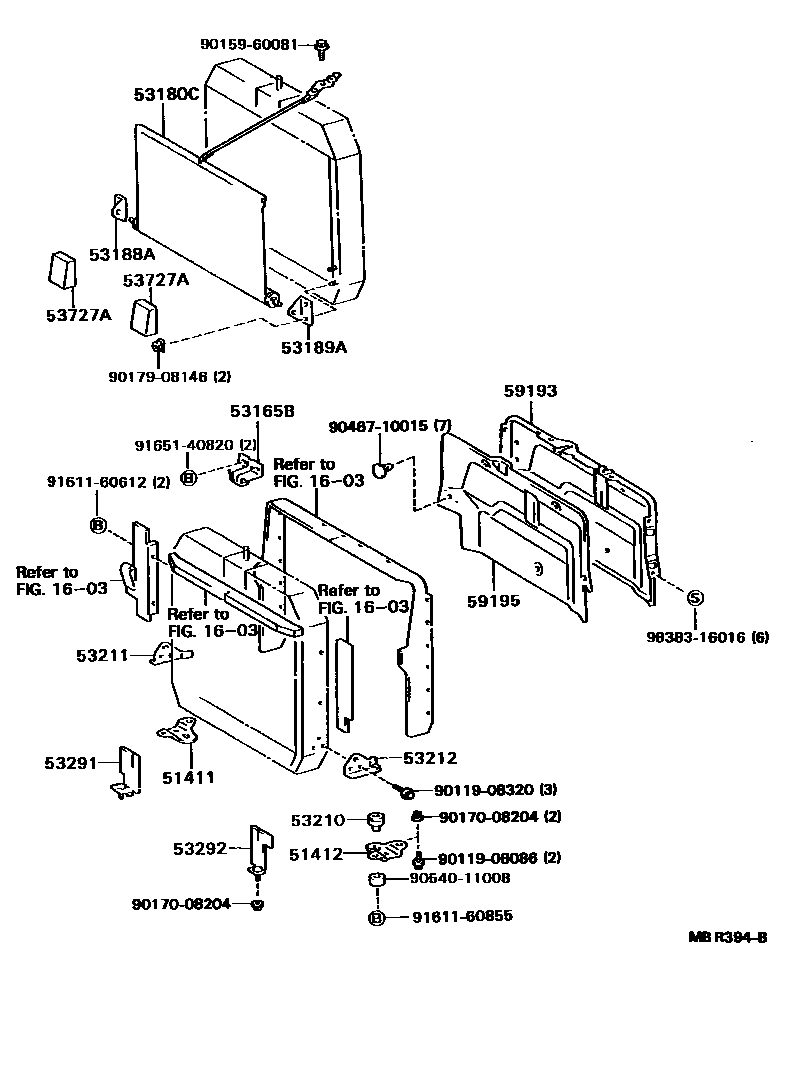

RADIATOR SUPPORT & WIND GUIDE

1603

51411BRACKET, RADIATOR SUPPORT, RH

main51411-36100iBU7#,88,9#198808-199505

main51411-36120iBU84,89198808-199505

51412BRACKET, RADIATOR SUPPORT, LH

main51412-36090iBU84,89198808-199505

main51412-36100iBU7#,88,9#198808-199505

53165BSUPPORT, RADIATOR, CENTER

main53165-36011iBU7#,88,9#198808-199505

main53165-36040iBU84,89198808-199505

53180CSHUTTER ASSY, RADIATOR

main53180-95405iBU7#,88,92198808-199505

53188ABRACKET, RADIATOR SHUTTER SUPPORT, RH

main53188-95405iBU7#,88,92198808-199505

53189ABRACKET, RADIATOR SHUTTER SUPPORT, LH

main53189-95403iBU7#,88,92198808-199505

53210SUPPORT ASSY, RADIATOR

main53210-36010iBU76,8#,9#198808-199505

53211SUPPORT, RADIATOR, RH

main53211-36020iBU7#,88,9#198808-199505

main53211-36060iBU84,89198808-199505

53212SUPPORT, RADIATOR, LH

main53212-36020iBU7#,8#,9#198808-199505

53291SEAL, RADIATOR SUPPORT TO FRAME, RH

main53291-36040iBU7#,88,9#198808-199505

main53291-36050iBU84,89198808-199505

53292SEAL, RADIATOR SUPPORT TO FRAME, LH

main53292-36060iBU84,89198808-199505

sub53292-36061

main53292-36070iBU7#,88,9#198808-199505

53727ASHUTTER, HOT AIR SIDE

main53727-95401iBU84,89198808-199505

main53727-95402iBU7#,88,9#198808-199505

59193GUARD, NOISE SHUTTER

main59193-95402iBU79,88,9#198808-199505

59195INSULATOR, NOISE SHUTTER

main59195-95402iBU79,88,9#198808-199505

9011908086

main90119-08086

9011908320

main90119-08320

9015960081

main90159-60081

9017008204

main90170-08204

9017908146

main90179-08146

9046710015

main90467-10015

9054011008

main90540-11008

9161160612

main91611-60612

9161160855

main91611-60855

9165140820

main91651-40820

9838316016

main98383-16016

26 parts on this diagram · 1 diagram in section
