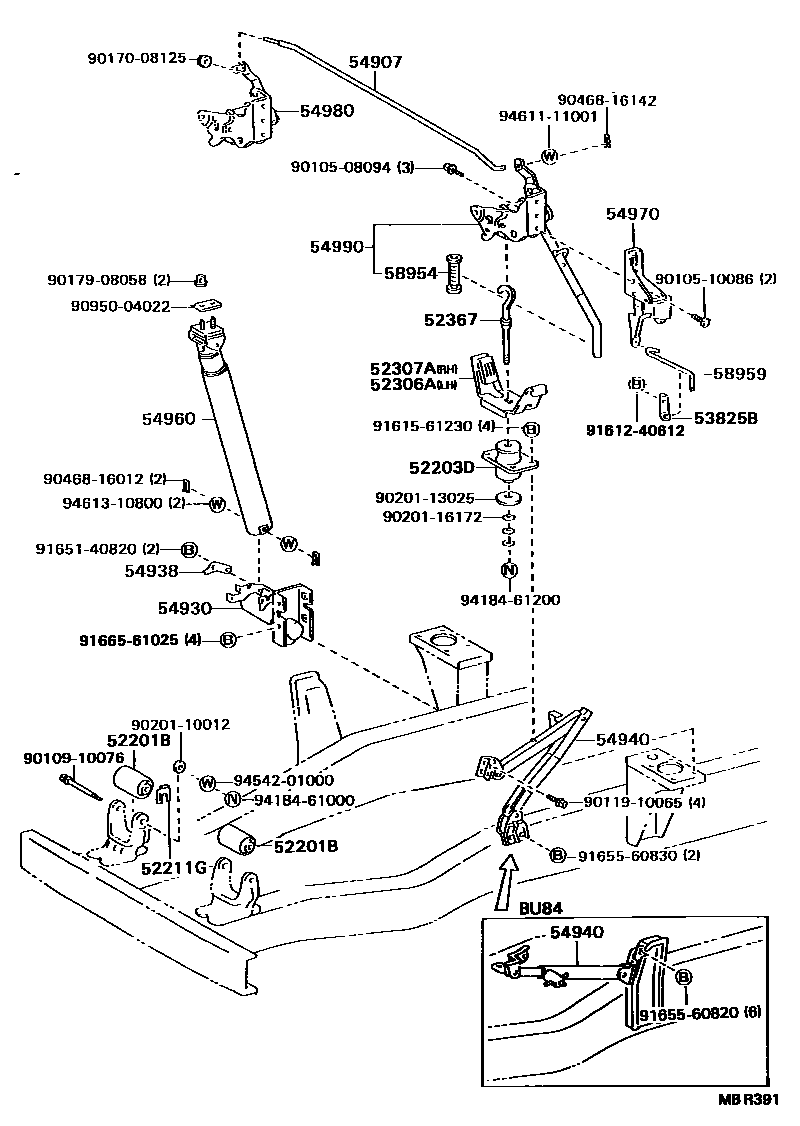

CAB MOUNTING & BODY MOUNTING

52201BCUSHION SUB-ASSY, CAB FRONT MOUNTING

main52201-36040iBU84,89198808-199505

main52201-36050iBU7#,88,9#198808-199505

52203DCUSHION SUB-ASSY, CAB MOUNTING, NO.2 UPPER

main52203-36050iBU7#,8#,9#198808-199505

52211GSPACER, CAB FRONT MOUNTING

main52211-36020iBU7#,8#,9#198808-199505

52306ABRACKET SUB-ASSY, CAB MOUNTING HOOK, NO.1

main52306-36020iBU7#,8#,9#198808-199505

sub52306-36021

52307ABRACKET SUB-ASSY, CAB MOUNTING HOOK, NO.2

main52307-36020iBU7#,8#,9#198808-199505

sub52307-36021

52367HOOK, CAB REAR MOUNTING

main52367-36030iBU7#,8#,9#198808-199505

53825BBRACKET, REAR LOCK HANDLE ROD

main53825-95401iBU7#,88,9#198808-199505

54907PIPE SUB-ASSY, TILT CAB LOCK CONNECTING

main54907-95400iBU84,89198808-199505

main54907-95401iBU7#,88,9#198808-199505

54930BRACKET ASSY, TILT CAB COIL SPRING, LOWER

main54930-95400iBU7#,88,9#198808-199505

main54930-95401iBU84,89198808-199505

54938PLATE, TILT CAB COIL SPRING SUPPORT

main54938-95400iBU7#,8#,9#198808-199505

54940STAY ASSY, TILT CAB

main54940-95400iBU84,89198808-199505

main54940-95402iBU7#,88,9#198808-199505

54960SPRING ASSY, TILT CAB COIL

main54960-95400iBU84,89198808-199505

main54960-95403iBU7#,88,9#198808-199505

54970LATCH ASSY, TILT CAB STOPPER

main54970-95400iBU84,89198808-199505

main54970-95401iBU7#,88,9#198808-199505

54980LOCK ASSY, TILT CAB MOUNTING, RH

main54980-95400iBU7#,8#,9#198808-199505

54990LOCK ASSY, TILT CAB MOUNTING, LH

main54990-95403iBU84,89198808-199505

main54990-95404iBU7#,88,9#198808-199505

sub54990-37010

58954COVER, REAR LOCK HANDLE GRIP

main58954-95400iBU7#,8#,9#198808-199505

58959ROD, REAR LOCK, HANDLE LATCH

main58959-95402iBU7#,88,9#198808-199505

9010508094

main90105-08094

9010510086

main90105-10086

9010910076

main90109-10076

9011910065

main90119-10065

9017008125

main90170-08125

9017908058

main90179-08058

9020110012

main90201-10012

9020113025

main90201-13025

9020116172

main90201-16172

9046816012

main90468-16012

9046816142

main90468-16142

9095004022

main90950-04022

9161240612

main91612-40612

9161561230

main91615-61230

9165140820

main91651-40820

9165560820

main91655-60820

9165560830

main91655-60830

9166561025

main91665-61025

9418461000

main94184-61000

9418461200

main94184-61200

9454201000

main94542-01000

9461111001

main94611-11001

9461310800

main94613-10800

40 parts on this diagram · 1 diagram in section
