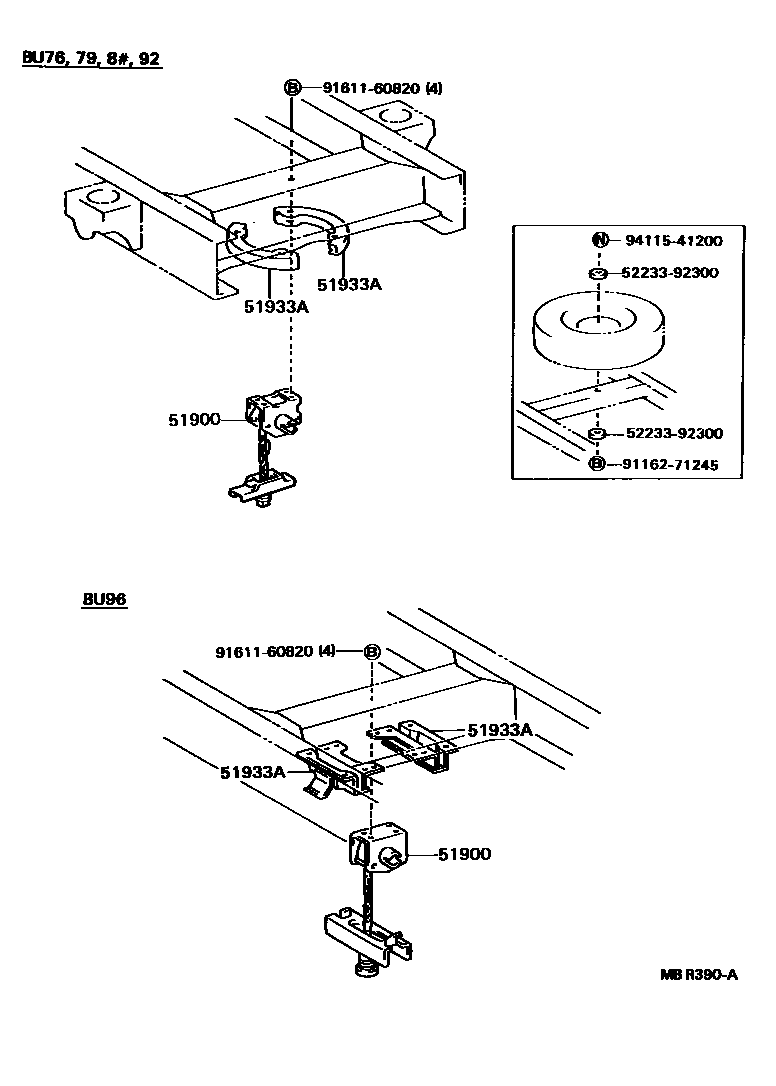

SPARE WHEEL CARRIER

51900CARRIER ASSY, SPARE WHEEL

main51900-36050iBU96198808-199310

main51900-36101iBU7#,8#,92198808-199505

sub51900-36102

51933ASTOPPER, SPARE WHEEL, NO.1

main51903-36040iBU96198808-199310

main51933-36010iBU7#,8#,92198808-199505

5223392300WASHER, CAB REAR MOUNTING, UPPER

main52233-92300

9116271245

main91162-71245

9161160820

main91611-60820

9411541200

main94115-41200

6 parts on this diagram · 1 diagram in section
